Toolgrid Container Stops

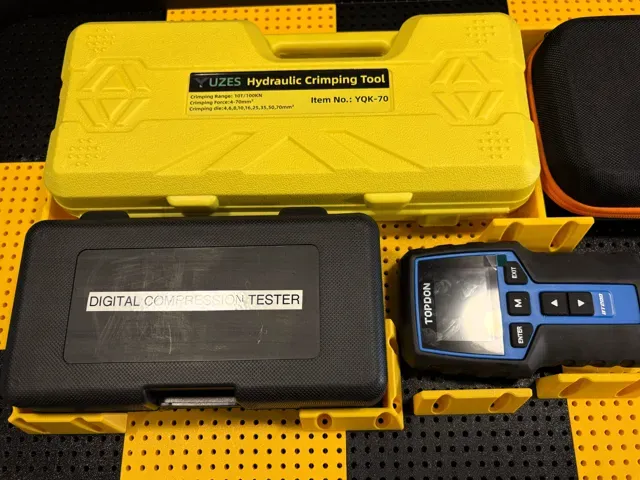

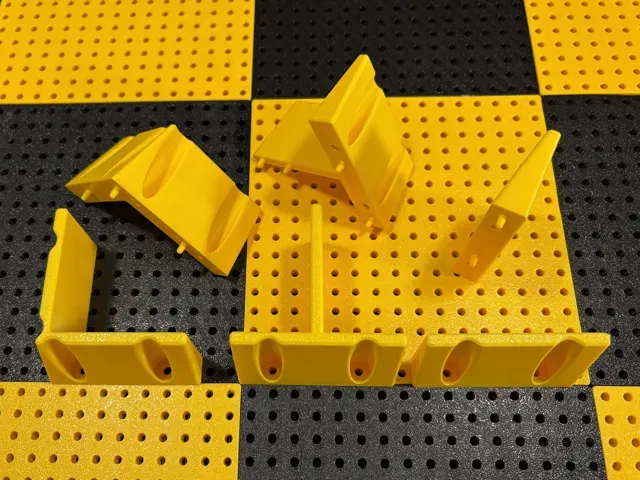

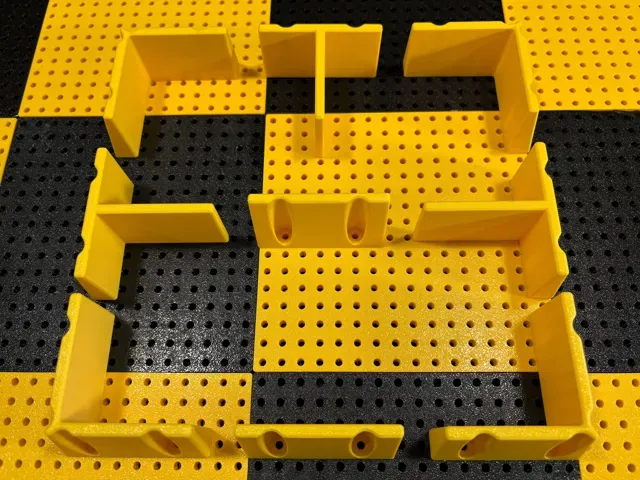

These are Toolgrid corner, wall and T-stops to hold cases and tools in place. They have alignment pins and two to four screw holes depending on the style of stop. These are all modeled on the Toolgrid standard spacing (3.5mm holes on 9.5mm centers). They print support free with only the wall stop having a small easy to remove brim to ensure bed adhesion. There are two heights available for each style: 40mm high and 80mm high.

The Container Corner Stop.3mf file has Six plates.

Plate 1: 8 Corner Stops 40mm High

Plate 2: 8 T-Stops 40mm High

Plate 3: 8 Wall Stops 40mm High

Plate 4: 8 Corner Stops 80mm High

Plate 5: 8 T-Stops 80mm High

Plate 6: 8 Wall Stops 80mm High

You can clone or delete to print the number and style of stops you need to hold items with.

The screws I recommend to secure them to the grid are M4 x 8 to 10 mm rolling thread screws. It just depends on how thick your base is. You want them to be as long as possible without protruding out the bottom side of the plate. These are the screws I used (Ordered from Amazon). Standard machine threads will also work as long as you don't over torque the screws.

Happy Organizing!

See how I am creating order in my shop with these other models. Might find something that is useful to you also!

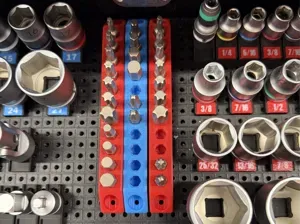

Toolgrid Organizers
