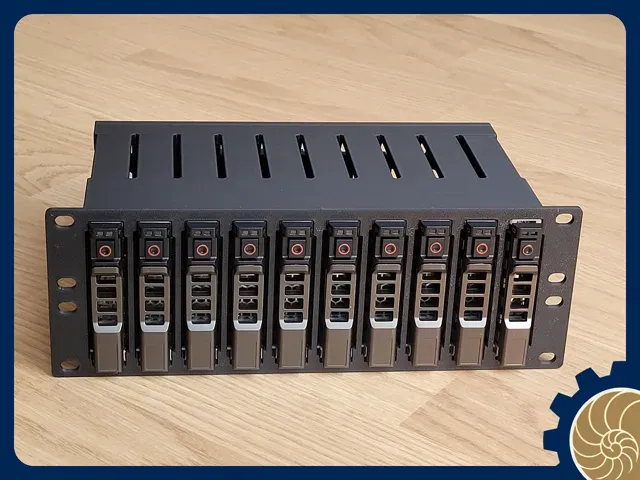

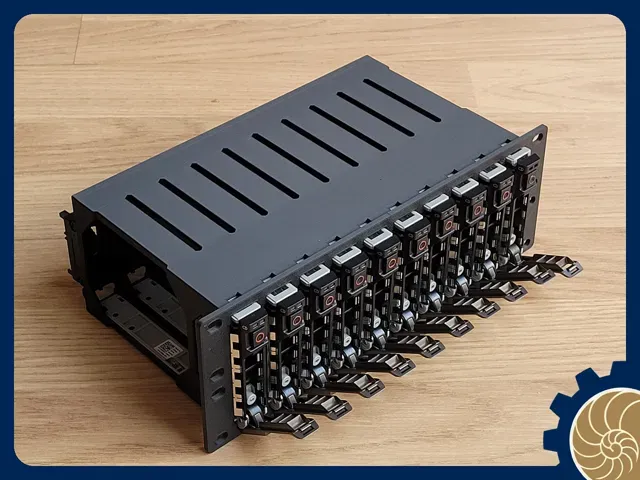

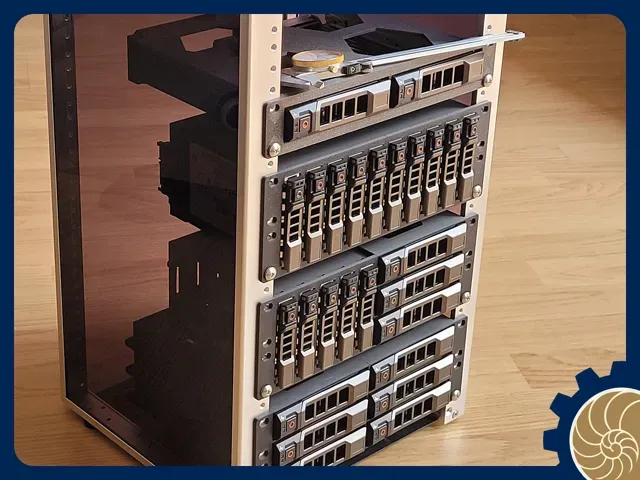

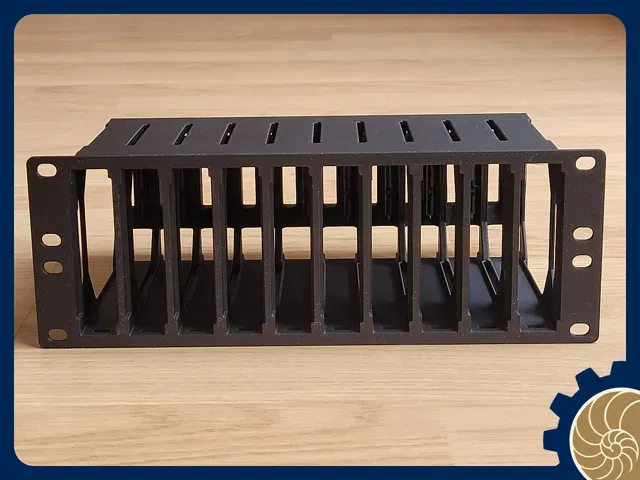

10 inch Rack 2U: 10x 2.5 inch HDD/SSD - HOT SWAP !

Discover all my other hot‑swap storage projects!

2.5" HDD/SDD

←←← COMBO! →→→

3.5" HDD/SDD

1U

2U

Others

3U

0.5U

Design:

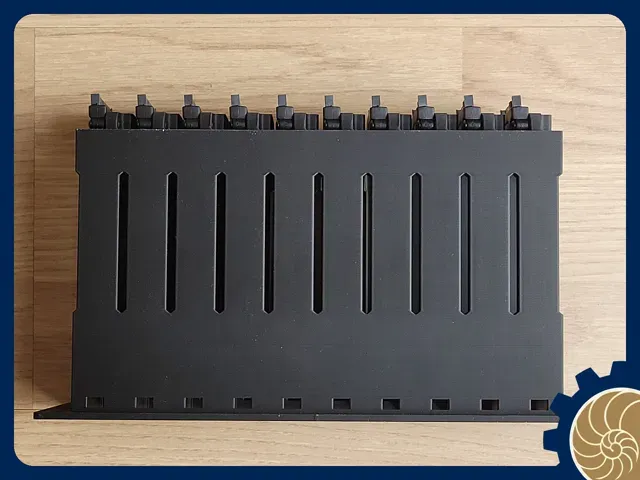

- for 10x 2.5 HDD/SSD !!! I also added a x9, x8, x7 and x6… for the less ambitious… no one judges… - Maximal Density ! - HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld - Maximum airflow - Following feedbacks, the mounting of the SATA connector as been redesigned. Print:

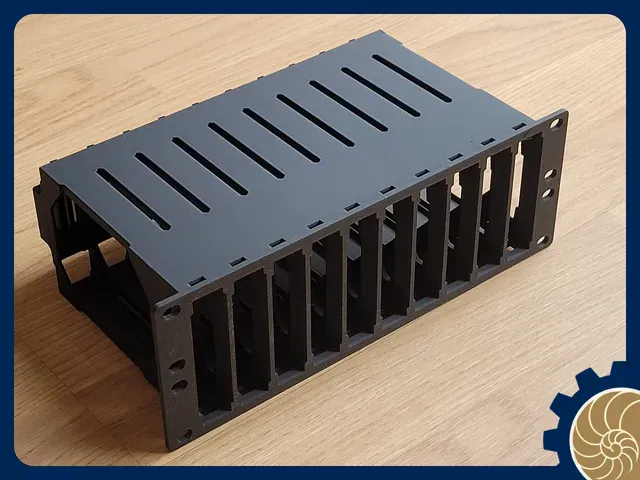

- No support ! Print face down see picture. - Tolerance are quite tight, make sure to take your time to print it (I used 0.4mm nozzle, 0.2mm layers Assembly:

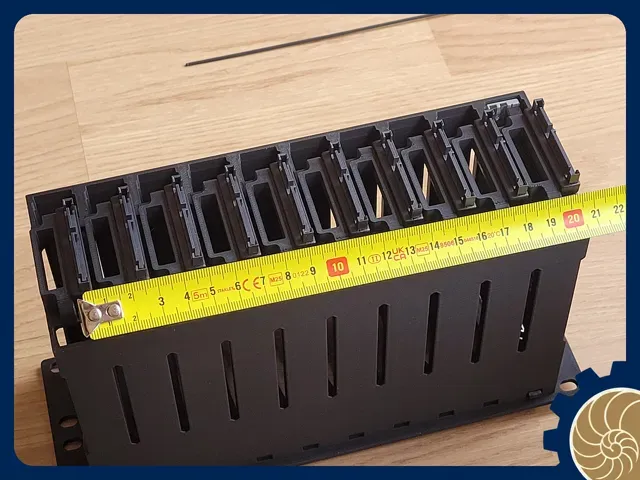

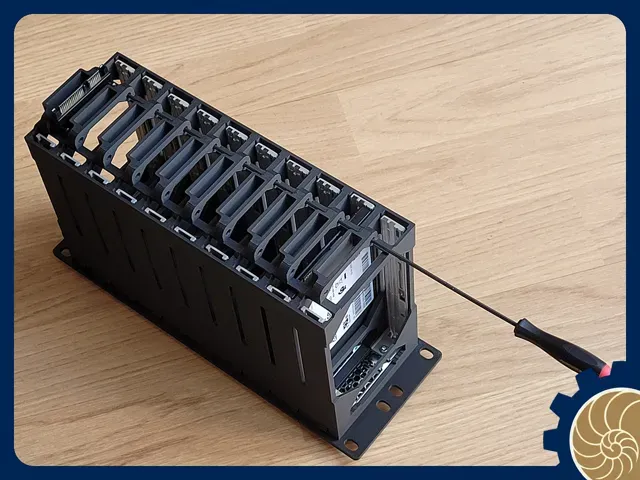

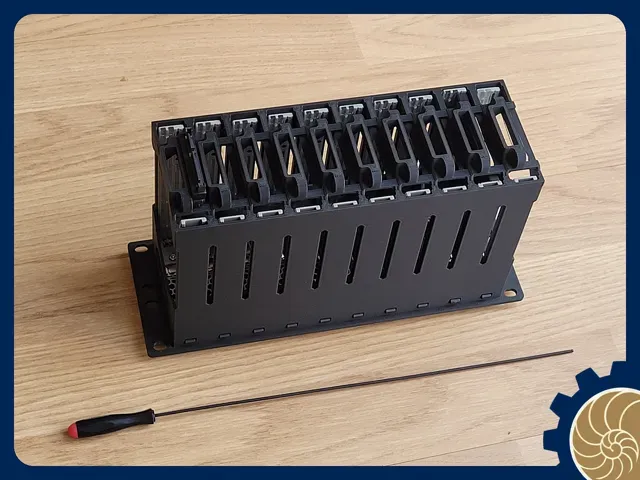

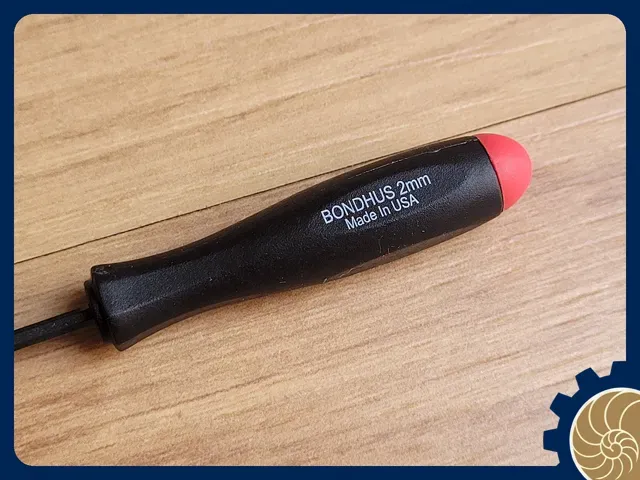

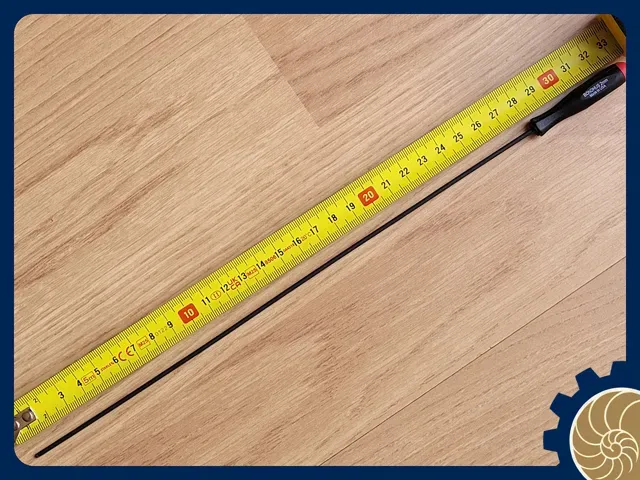

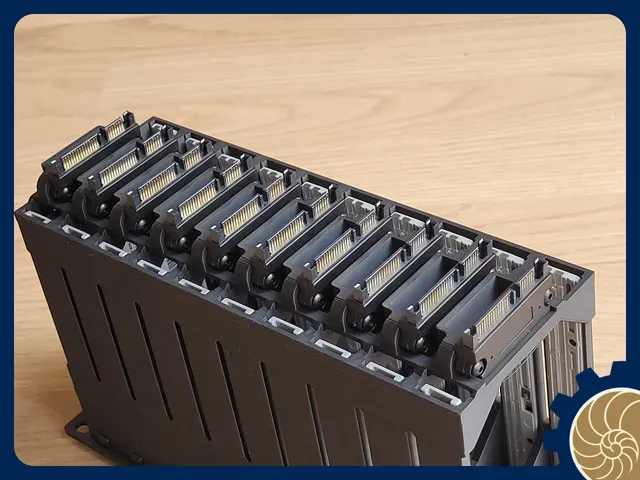

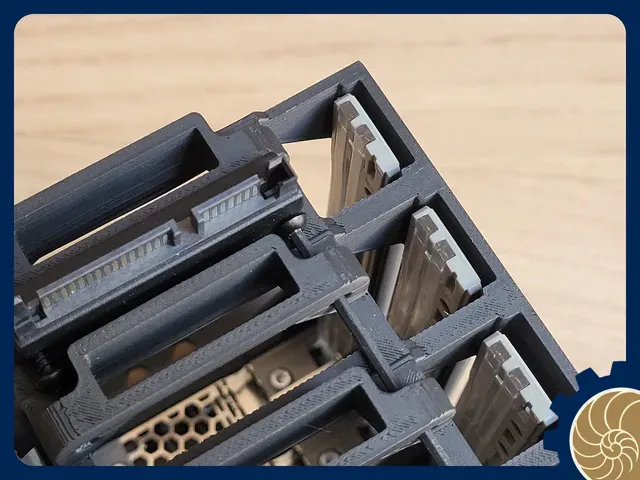

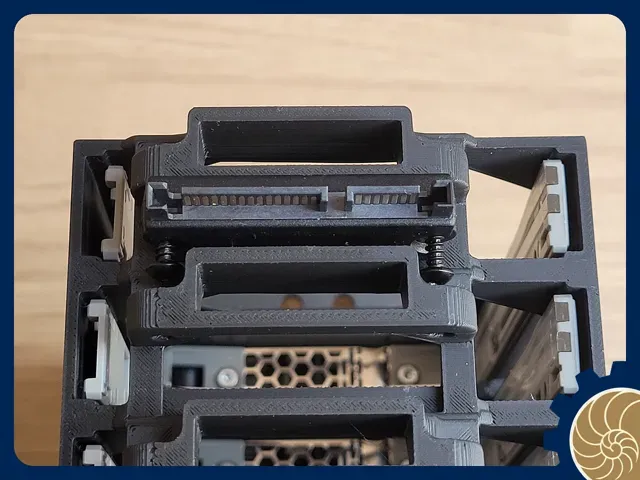

- It's probably going to be “new tool day” if you want to print that… You will need a HEX/ALLEN key 2MM with a very long blade (at least 20cm) such as: - Bondhus 3752 Extra Long 2mm Ball End Screwdriver (link to images of the key) - Stanley Extra Long Allen Key 2mm (link to aliexpress) - Then assemble the SATA connector as per pictures starting from the least accessible. Other Material:

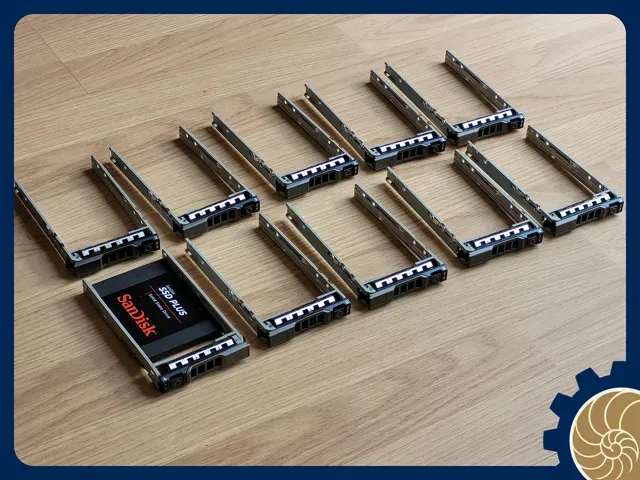

I use those dell-copy caddies from Aliexpress:

keywords:

- “NEW 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HARD DRIVE Bracket 8FKXC” - "2 PCS NEW 2Pcs/Lot 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HDD Bracket Drawer 8FKXC G176J"

2pack tray sells for about 9eur:

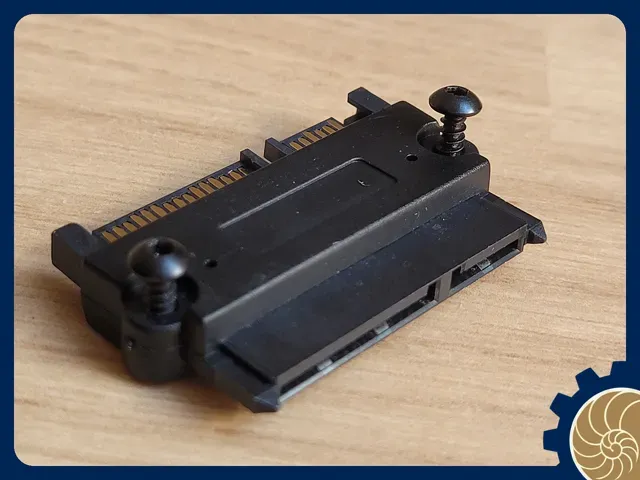

- here in Aliexpress or - here in Aliexpress too  For the Hot swappable connection:

I used those:

keywords:  SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter

Currently 13eur for 10:

- Here on aliexpress Screws are listed in the BOM: - Self tapping HEX M3x12m button head, also easily available on aliexpress and bambu's maker supply

Hope it helps !
