Gridfinity 9x6 Bin (5U) Dovetail Split Fit A1 Mini

Boost Me If this bin was useful, please consider boosting it so more makers can find it. A standard 9x6 Gridfinity bin that actually fits on smaller printer beds, thanks to a clean, strong dovetail split with built-in alignment tabs.

See my other models for more sizes. If you need any specific sizes, just ask in the comments, I should be able to make one fast.

Collections:

5 Long x 5U Tall Split Gridfinity Bins

6 Long x 5U Tall Split Gridfinity Bins

7 Long x 5U Tall Split Gridfinity Bins

8 Long x 5U Tall Split Gridfinity Bins

9 Long x 5U Tall Split Gridfinity Bins

10 Long x 5U Tall Split Gridfinity Bins

11 Long x 5U Tall Split Gridfinity Bins

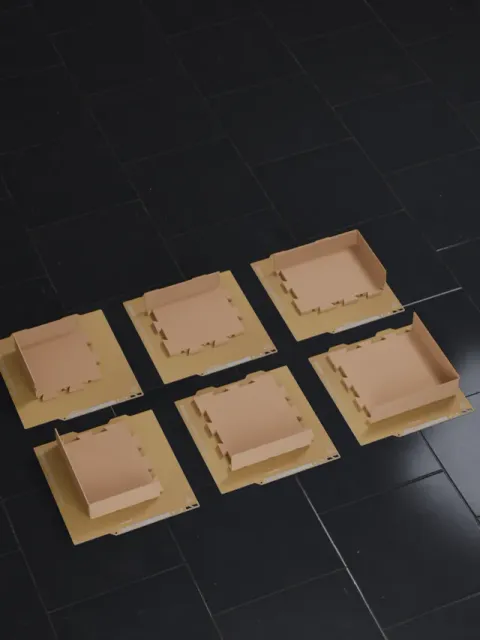

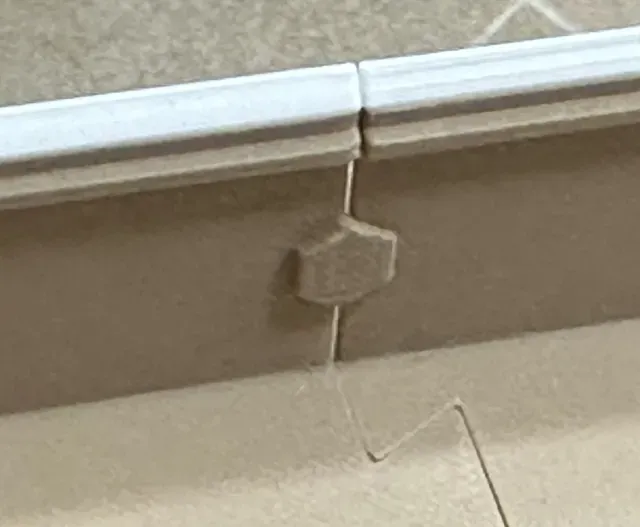

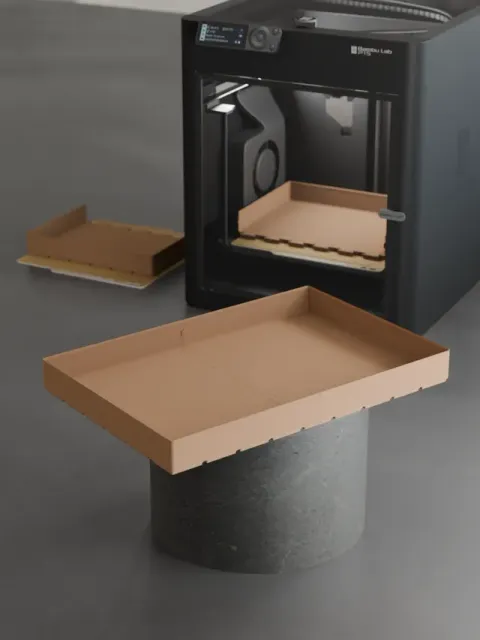

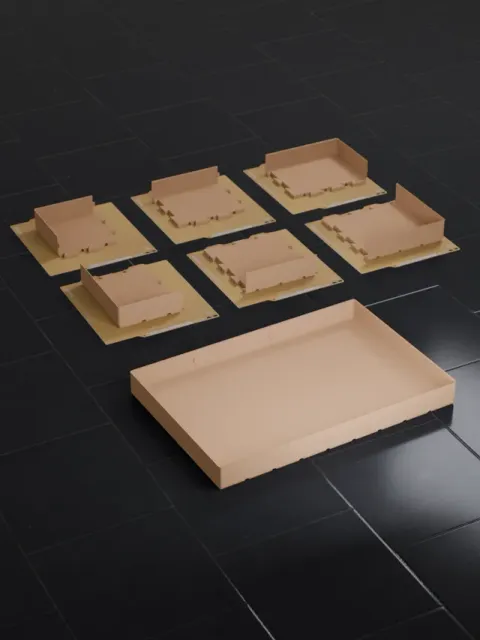

This model is a 5-unit-tall Gridfinity bin (~39.5mm tall) , split into two parts using a precision dovetail joint so it prints cleanly on my Bambu Lab P1S . I also created a print profile (the 3 piece version) that can fit on the A1 Mini plate. I’ve added alignment tabs along the split so the sections self-register during assembly, keeping the sides perfectly aligned and preventing lateral movement. The tabs allow the bin to fit tightly without glue , while still giving you the option to glue permanently if desired.

There is a tight print profile and a looser profile. I like the tight version myself, it is very snug but doesn't move. I made the looser version for people who may want to take it apart regularly or for printers with slightly looser tolerances.

✨ Features

- ✅ True Gridfinity standard sizing - ✅ 9x6 footprint - ✅ 5 units tall to fit more items ( ~39.5mm tall ) - ✅ Dovetail split for strength with alignment tabs for easy alignment and to prevent side-to-side movement - ✅ Prints flat, no supports required - ✅ Works great with PLA, PETG, or ABS Perfect for :

- Long tools - Electronics parts - Desk organization - Modular drawer systems - Zip tie storage - Chip clips 🔹 Printing Instructions

Recommended Settings

- Layer height: 0.2 mm - Walls: 3–4 - Infill: 10–20% (Gyroid or Cubic) - Supports: None - Brim: Optional (only if your material tends to warp) Assembly

- Dry-fit first - The tight version shouldn't need it, but for extra security you can glue with CA glue or plastic-safe adhesive ⭐️ If this model helps, boosts are hugely appreciated and help others find this set of split Gridfinity bins .
