Ryobi 18v line trimmer to brushcutter adapter
Model details
- Platform
MakerWorld
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- 3MFSTL
- 11 Likes
- 15 Downloads
- 9 Makes
- 26 Collected
- 1 Boosts
- 0 Comments
- 0 Views
Description
Use at your own risk, this one is probably bad idea. Follow my profile if your interested in a version for an ozito 36v line trimmer at some point.
This cap will allow you to use brush cutter attachments on your 18v ozito bent shaft line trimmer.

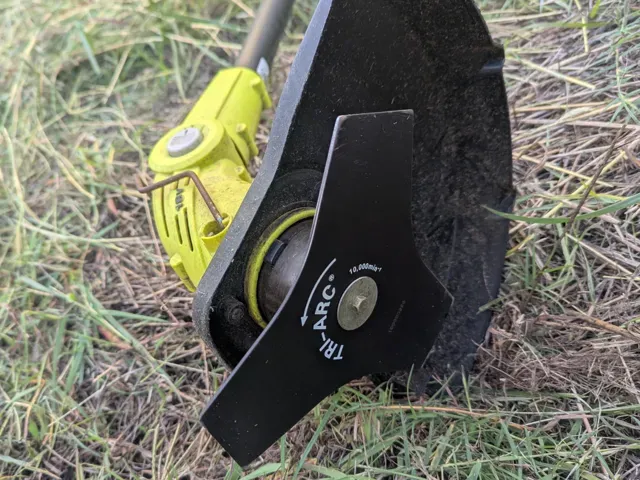

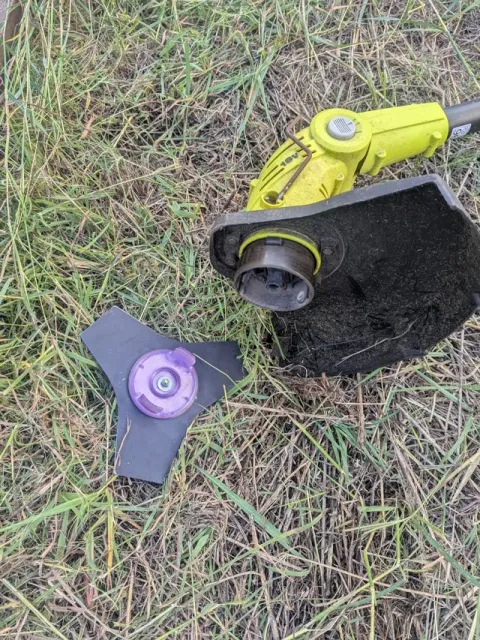

The photographed tri-arc cutter came off a ryobi brush cutter.
Fits accessories with a standard 25.4mm/1" bore.
No modifications needed to your line trimmer. You can probably still use the spool/line if you really wanted to.

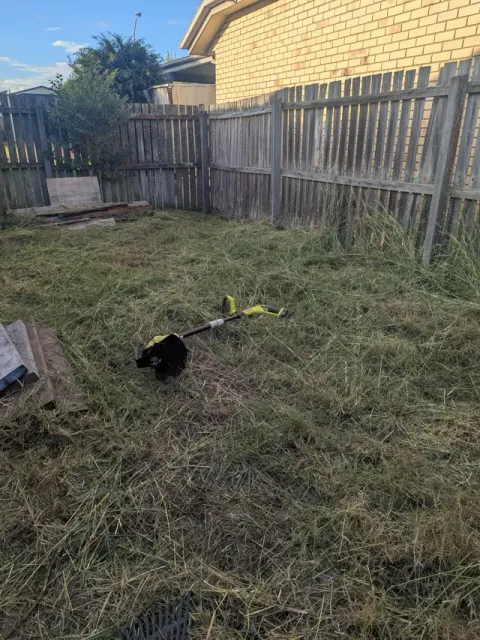

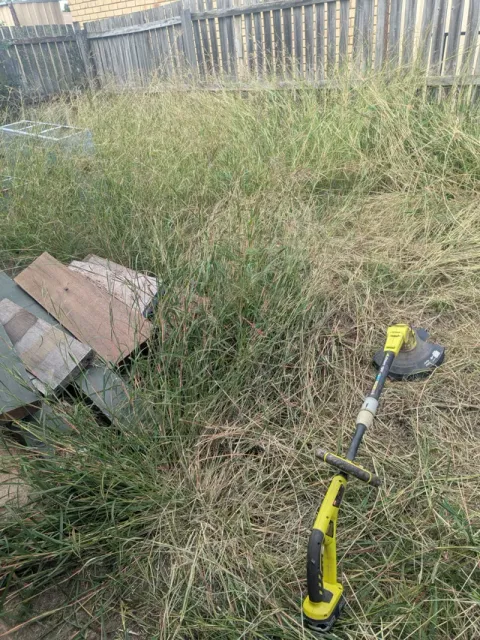

I have done my small backyard with grows crazy thick reed grass and it worked way better than i was expecting.
hardware needed is:
1 16mm+ M5 bolt
1 M5 nylock nut
1 M5 16 to 25mm washer
1 M5 30mm+ washer
Must be printed at a 45 degree angle with supports, otherwise the clips just snap.
Boost Me Do it!
You wont.
Go oonnnnnn
Guides and print profiles
Print profiles and steps
0.2mm layer, 6 walls, 25% infill Use petg or better.
Don't use PLA. This is probably crazy enough, we don't need to bring PLA into it.
