Parametric Barbed Y Hose Connector V2–Metric+Inch

Boost Me If this parametric Y hose connector helped you solve a real hose routing or workshop connection problem, a boost would be greatly appreciated.

It helps support more practical, functional and customizable maker tools. Description

This is the V2 unified Metric + Inch Preset version of my parametric barbed Y hose connector, designed for flexible rubber, silicone and soft PVC tubes.

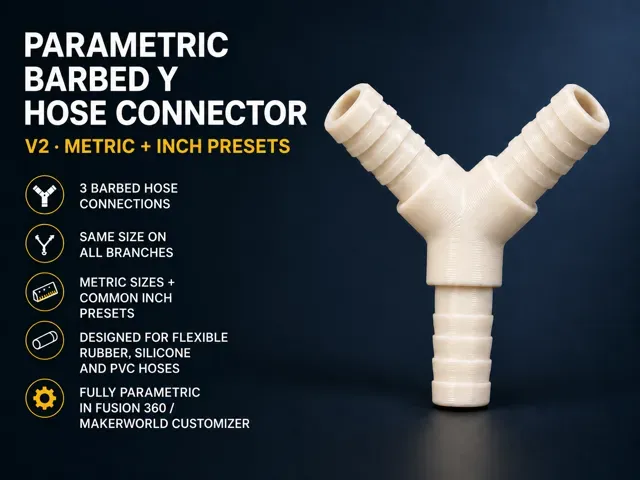

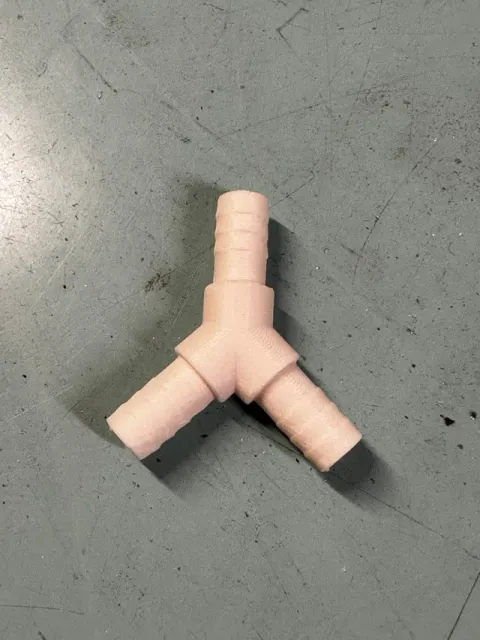

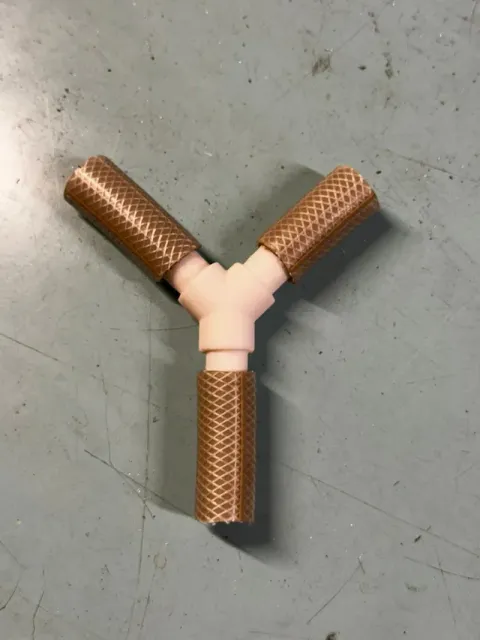

The model creates a Y-shaped hose connector with three barbed outlets sharing the same hose diameter.

This V2 update combines both workflows into a single project:

Metric sizes Inch preset sizes converted to millimeters Expanded small-diameter support Improved usability for MakerWorld Customizer

This update was also made after a user request asking whether the connector could be generated in 5 mm and 6 mm sizes.

V2 now makes the model more flexible for small tubes, light-duty hose routing and compact workshop setups.

The editable values are still entered in millimeters , because Fusion 360 / MakerWorld Customizer uses metric parameter values, but the project also includes common inch preset references converted into millimeters.

The design can be customized directly in Fusion 360 / MakerWorld Customizer by changing the main parameters, allowing users to create different metric and inch-based Y hose adapters, hose splitters and three-way utility connectors.

It is intended for light-duty workshop, DIY, maker, hobby and utility use, such as:

flexible rubber hose routing silicone tube connections soft PVC tube adapters small tube routing low-stress drain or vent lines custom workshop hoses prototype hose routing maker projects and experimental setups non-critical fluid or air routing light-duty air or liquid splitting utility hose branching

The barbs are automatically scaled from the hose diameter, wall thickness and grip level, so the user does not need to manually adjust many technical values.

V2 Update

This V2 version was created to make the model easier to use and more complete.

Main V2 improvements:

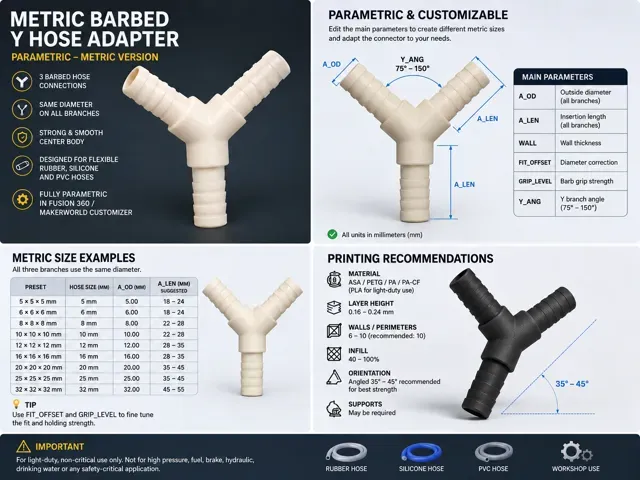

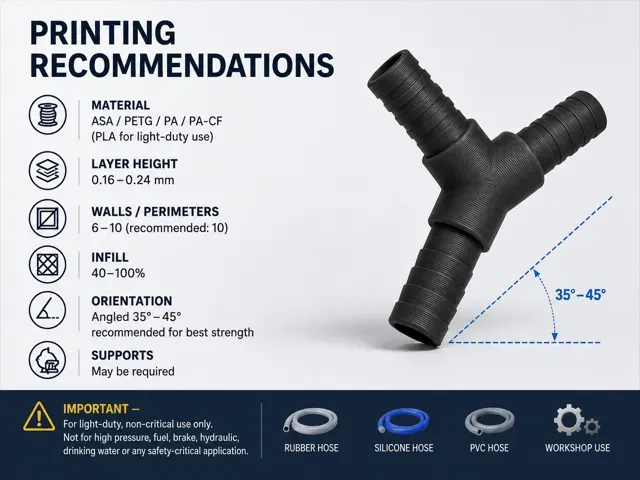

Metric and Inch Preset references in one project Expanded small-size support, including 5 mm and 6 mm use cases Cleaner parameter logic Better range for small flexible tubes Same diameter on all three branches Adjustable Y angle from 75° to 150° Improved description and usage notes Corrected print profile information

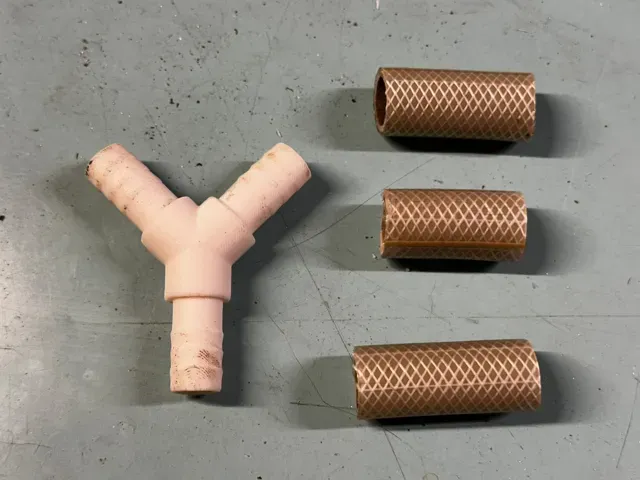

This version is especially useful for users who work with small silicone tubes, soft PVC tubes, rubber hoses, workshop utility lines and custom experimental routing.

Part of the CiCAdesign Parametric Hose Connector System

This model is part of a growing set of functional, customizable hose and tube adapters designed for workshop, DIY, prototyping, light-duty routing and experimental setups.

Other connector variants are available on my profile, including straight adapters, T adapters, Y adapters, barbed connectors, smooth sleeve connectors, Metric versions and Inch Preset versions.

Important Geometry Note

In this Y hose connector, all three hose branches use the same outside barb diameter.

The main editable diameter is:

A_OD

This value controls the outside diameter of all three barbed hose connections.

This model is designed for:

equal Y hose connectors three-way hose splitters light-duty symmetrical hose routing metric hose sizes inch hose presets converted into millimeters custom flexible tube branching

It is not intended for reduced Y connectors with different diameters on each branch.

For reduced Y adapters, a separate version with independent branch diameters would be required.

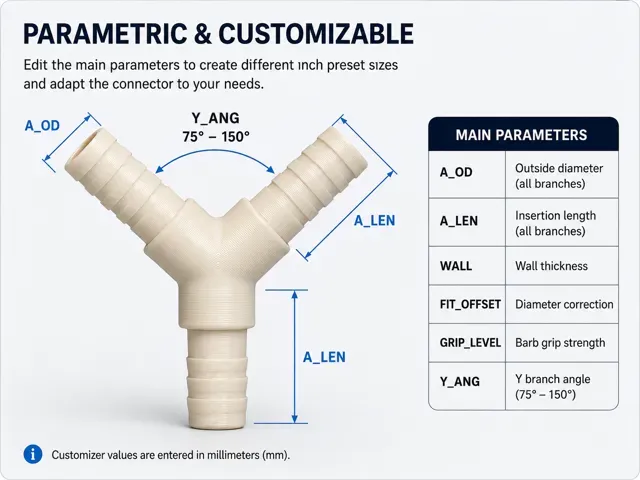

The Y_ANG parameter controls the branch angle used to generate the Y split.

The available Y angle range is:

75° to 150°

A smaller angle creates a more compact Y shape.

A larger angle creates a wider Y shape with more separation between branches.

For most practical workshop and hose-routing applications, a value around 90° is a good starting point.

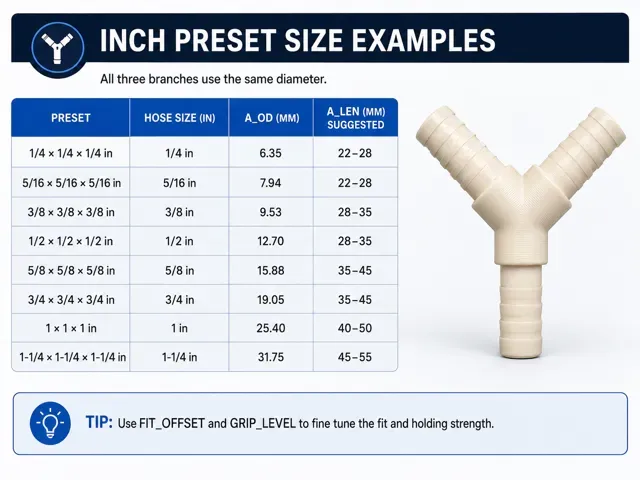

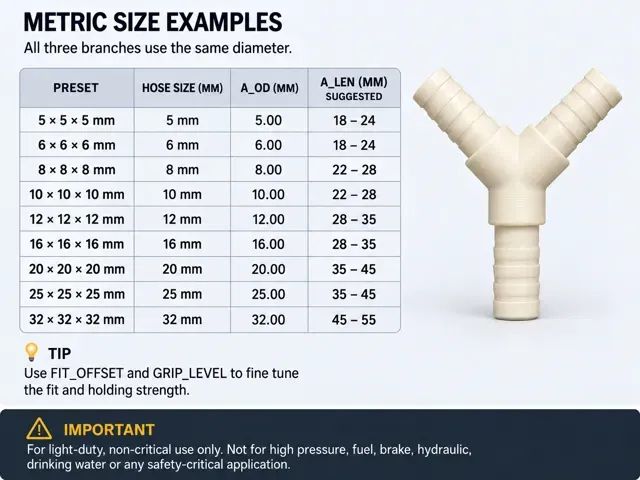

Metric and Inch Preset Note

This project supports both metric sizing and inch preset references.

Fusion 360 / MakerWorld Customizer uses millimeter values, so inch sizes are provided as converted metric values.

For metric use, enter the hose internal diameter directly in millimeters.
