EUFY S340 3.5 INCH POLE CONVERSION KIT

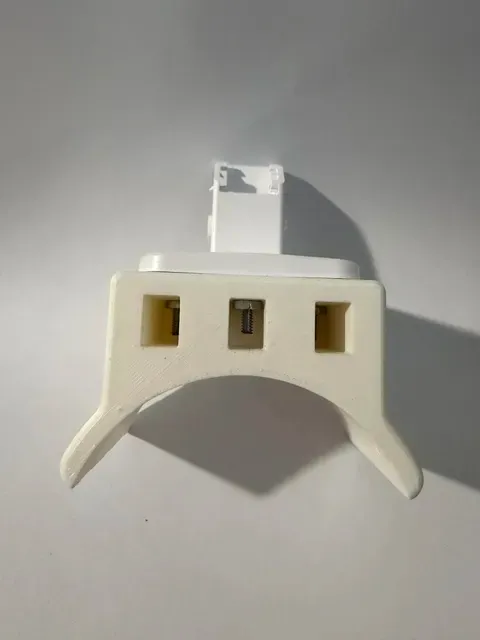

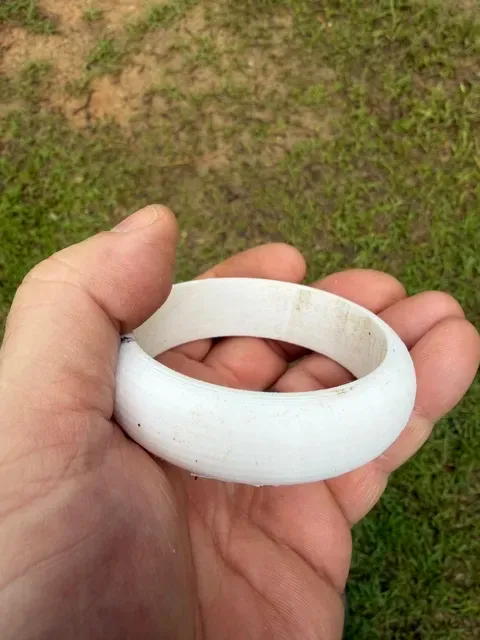

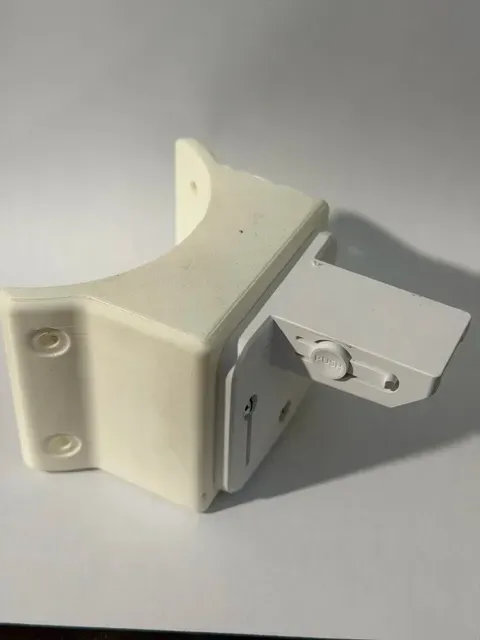

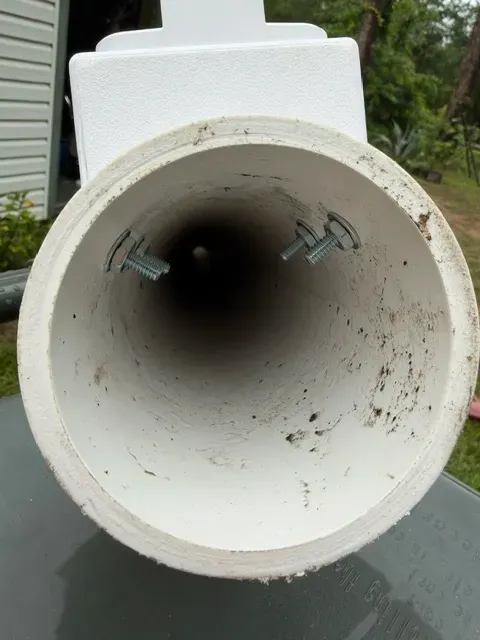

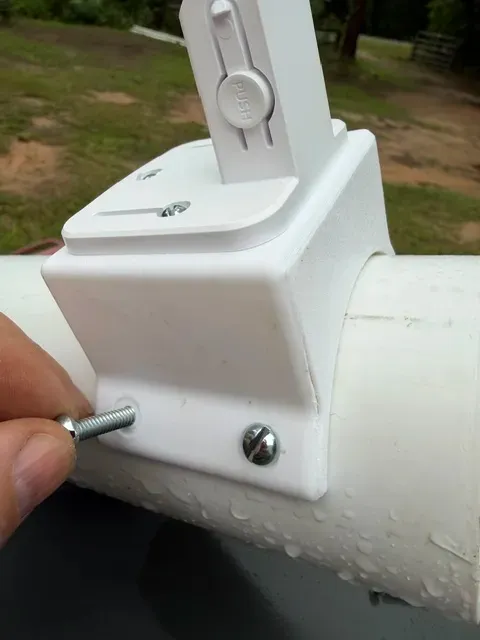

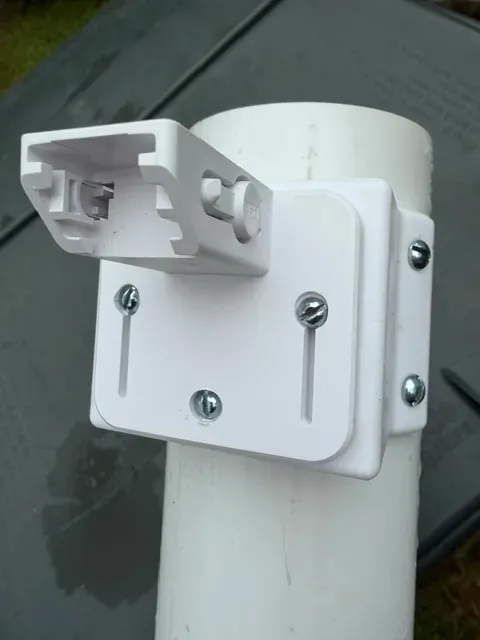

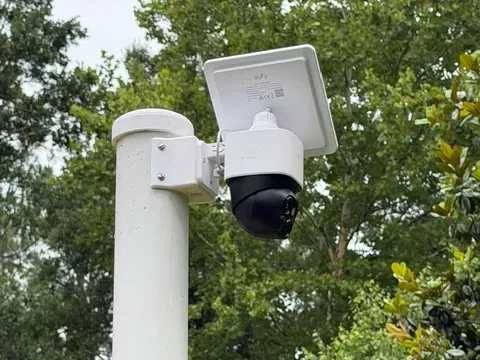

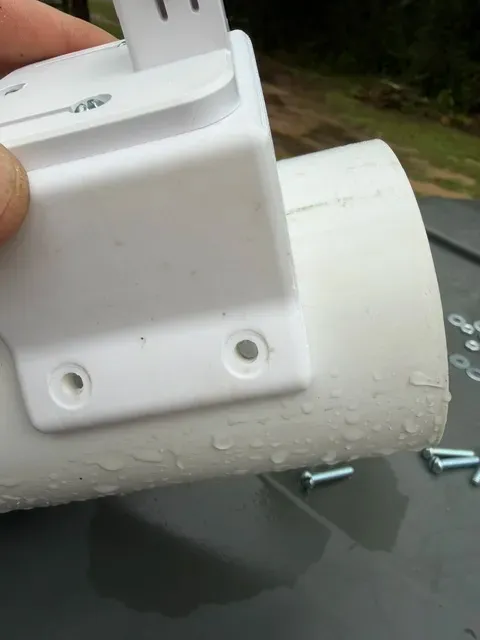

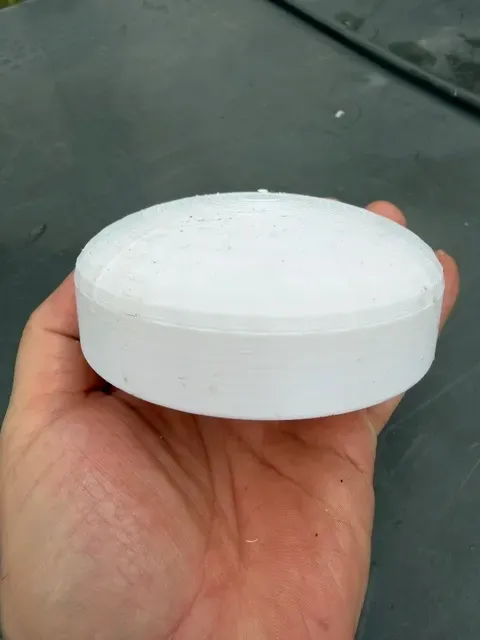

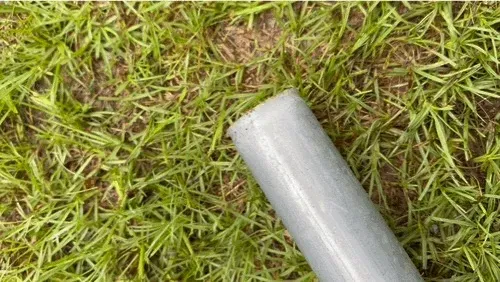

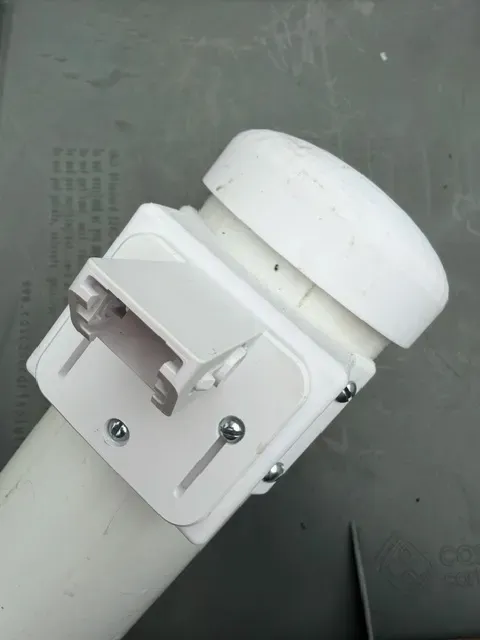

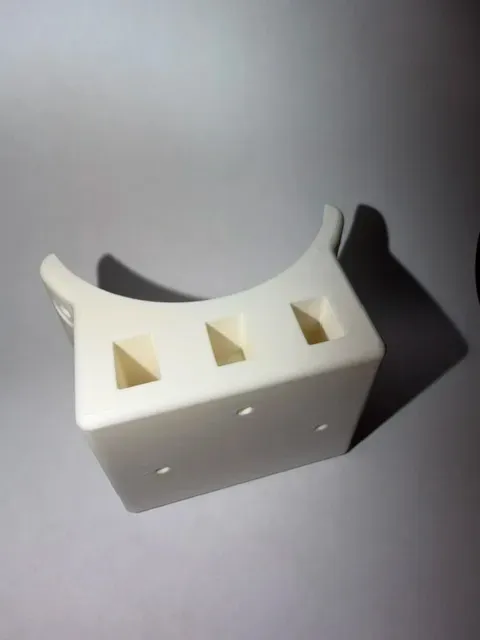

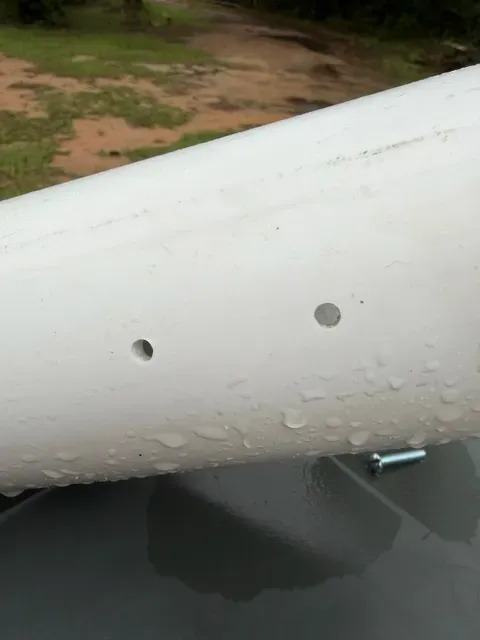

This print creates a mount for an Eufy S340 solar cam to a 3 in PVC pole, with some modification rings to incorporate some materials I had readily available. Actual pole diameter dimension is 3.5 OD.  I did not want to pour concrete, just in case I was not satisfied with the location.  I drove (one at a time) two 6-foot steel T-posts back to back with each other, knobs facing out, forming a skewed letter “H” if looking down from the top.  In this orientation, the two posts fit perfectly inside a 2-3/8 inch diameter OD galvanized pole.  I couldn't mount directly to a galvanized pole since it is a giant lightning rod, but I could use it for vertical rigidity.  The torus spacers take up the slack difference between the 2-3/8 inch OD galvanized pole and the 3 inch ID PVC pole.  The PVC pole was 10 feet tall, and the galvanized pole was 9 foot to maintain clearance from the top.  The PVC pole is able to be turned to position the camera from the ground, rotating around the center pipe, just in case you are not satisfied with the video positioning.   If you feel you want it in a different area altogether, just unmount the camera (easy press and pull), slide the PVC and galvanized poles, in unison, off the T-posts.  Pull the posts and drive them in the ground somewhere else.  No concrete hassle and an easy pole mount for your Eufy camera.  (Note - Holes are solid reinforced in the print, and small in diameter.  I wanted a precision fit, so I upsized them with a drill bit to match the screws I had available.  They are small, so you can also modify them.)
