Floating Ball Toy - Vintage Wooden-Style

Vintage Wooden-Style Floating Ball Toy

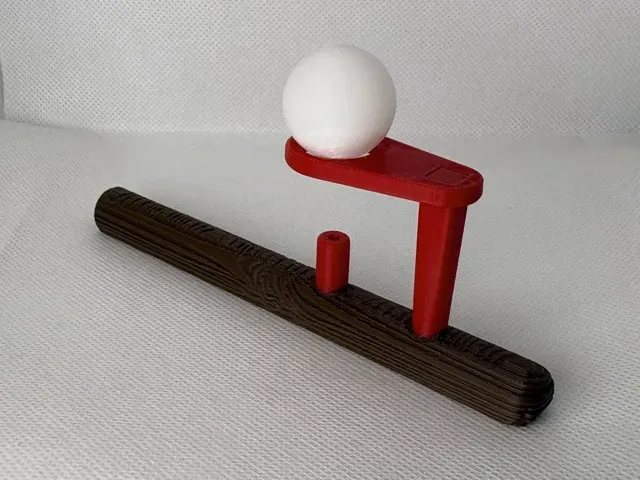

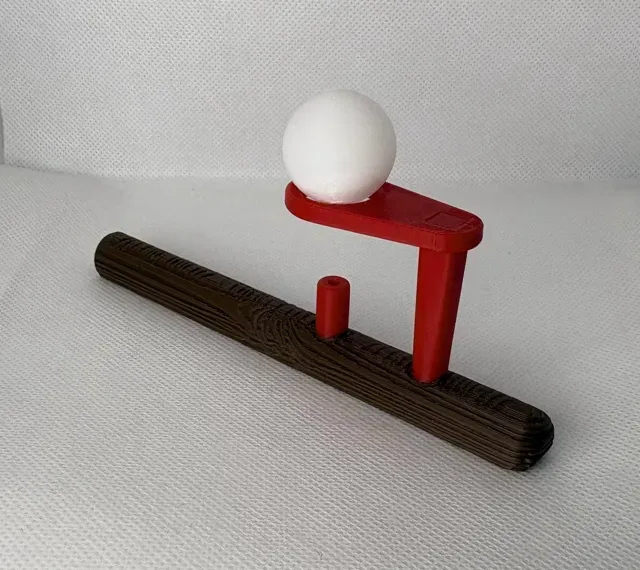

Experience the magic of physics with a classic aesthetic! This Floating Ball Toy is not just a fun game but a beautiful piece of design. Featuring a detailed wood-grain texture , it’s designed to be a high-quality educational tool for kids and a stylish desk toy for adults.

Performance & Design

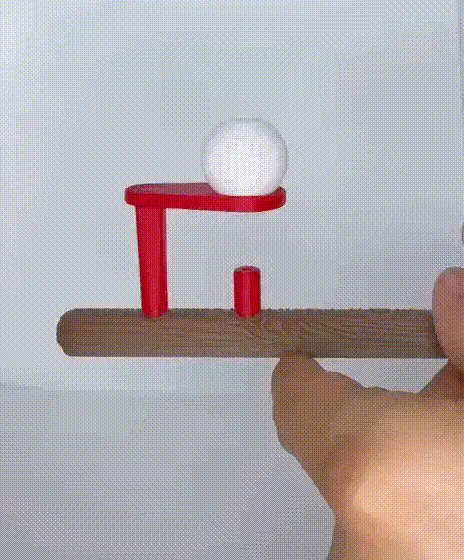

We spent hours optimizing the aerodynamics. The floating ball features a top-vent hole that creates a "chimney effect," stabilizing the ball in the air stream for much longer than standard spheres.

Boost Me Support my Work If you like this model and want to see more educational vintage toys, please consider giving it a Boost! 🚀 It helps me keep creating and sharing with the community.

Happy Floating! Print Settings (Optimized for Bambu Lab A1)

Main Body (Pipe & Pins):

- Walls: 2 - Infill: 8% Gyroid (for great structural strength with low weight) - Supports: Tree supports (Auto), only from build plate. The "Ultra-Light" Ball (Approx. 0.9g): To achieve the perfect flight, use these specific settings:

- Layer Height: 0.12mm (Fine) - Walls: 1 Wall (Arachne) - Top/Bottom Layers: 1 - Internal Solid Infill: Concentric - Bridge Speed: 20 mm/s - Line Width: 0.35mm (Forced thin wall) - Infill: 0% Pro Tips for Makers

- Flow Calibration: If your ball feels too heavy to fly, try reducing the Flow Ratio to 0.90 or 0.88 . This will make the wall even thinner and lighter. - Cooling: Ensure 100% part cooling fan for the ball to get a clean finish on the top vent. - Assembly: The pins are designed to fit snugly. A drop of superglue can be used for a permanent bond, but a tight friction fit usually does the trick!
