Slide Bolt Latch / Sliding Door Lock
Model details
- Platform
MakerWorld
- Price
- Free
- License
- PRIVATE-USE
- Personal use only: print for yourself, no selling or sharing.
- Formats
- STL
- 4 688 Likes
- 2 115 Downloads
- 2 167 Makes
- 14 427 Collected
- 18 Boosts
- 104 Comments
- 0 Views
Description

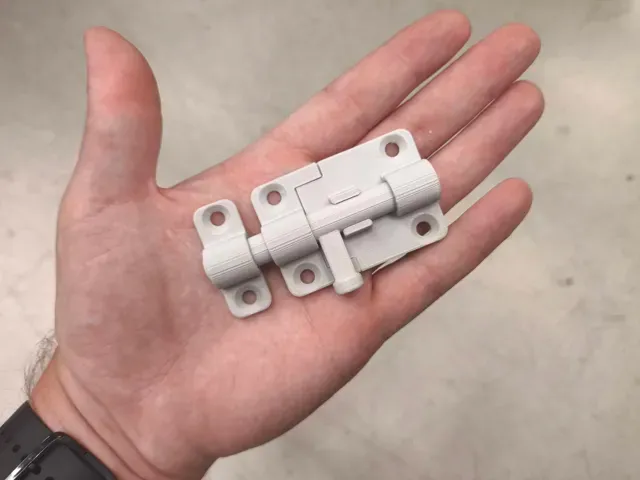

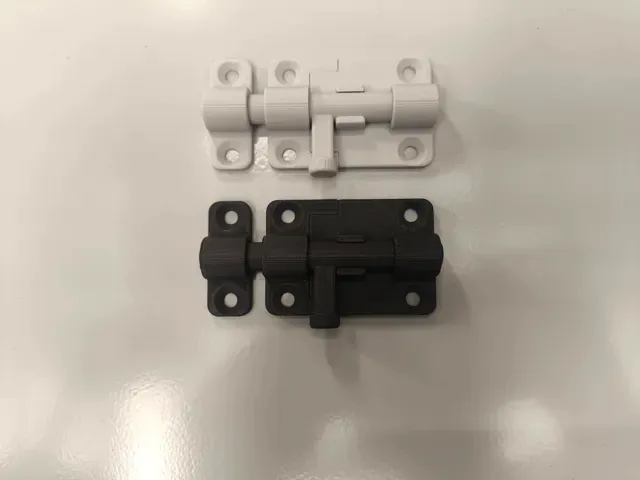

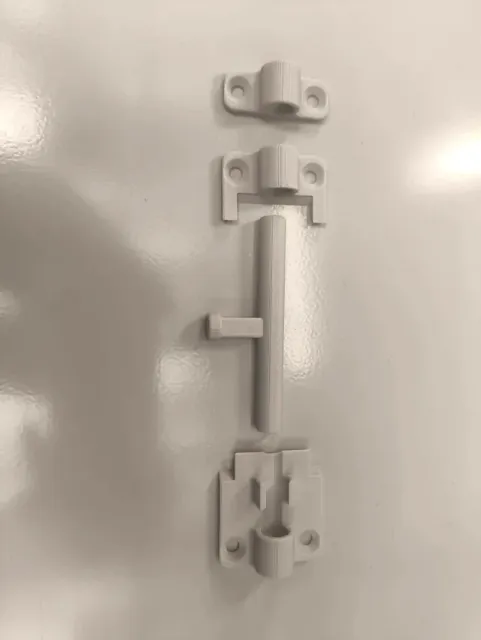

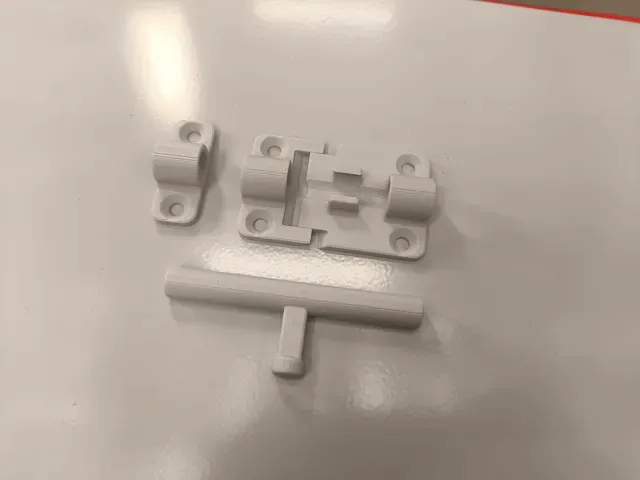

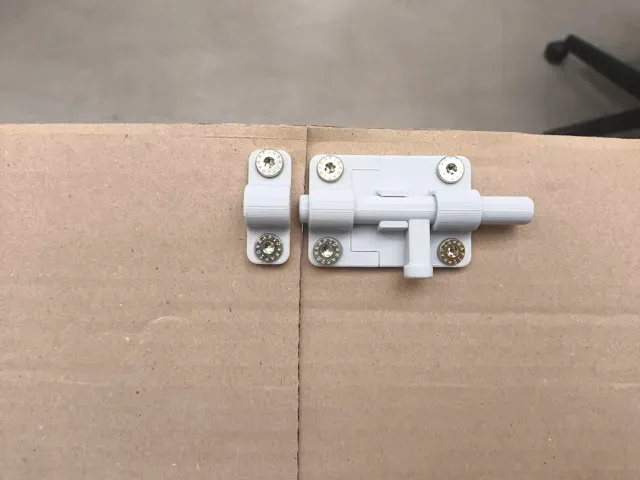

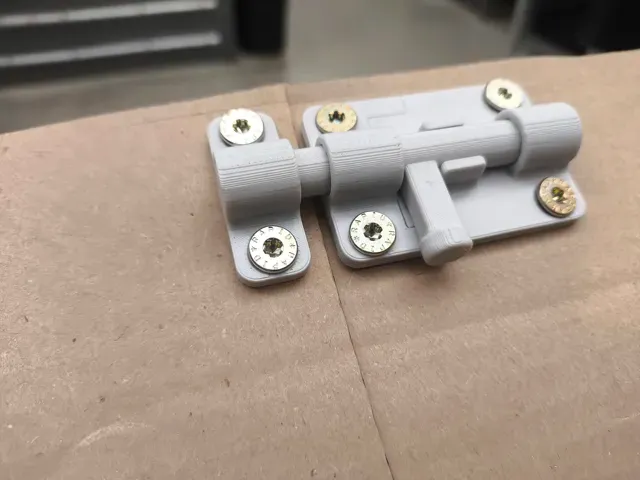

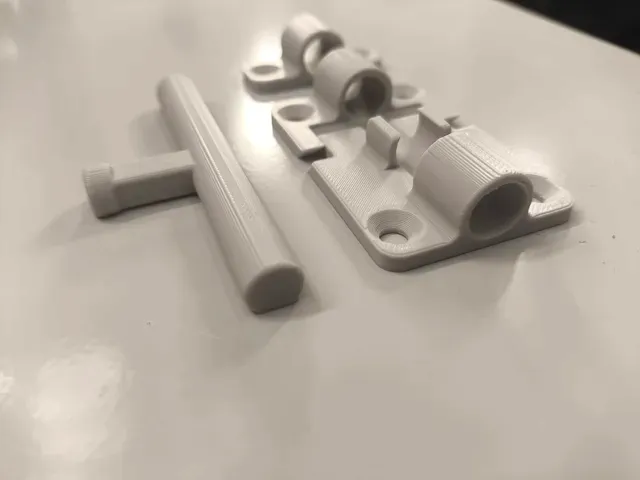

Slide Bolt Latch / Sliding Door Lock
A sturdy and reliable slide bolt latch designed for doors, cabinets, gates, sheds, and various DIY projects.
Features
- Three mounting hole versions included: - Ø3 mm screw holes - Ø4 mm screw holes - Ø5 mm screw holes - Integrated safety lock to prevent accidental opening - Easy to print - Strong and functional design - Suitable for indoor and outdoor use (recommended materials: PETG, ASA) Applications
- Doors - Gates - Cabinets - Sheds - Workshops - Storage boxes - General household and DIY projects If you find this model useful, please consider leaving a like and sharing your make. Enjoy printing!
Guides and print profiles
Print profiles and steps
5mm PETG 0.2mm layer, 2 walls, 15% infill
5mm PLA 0.2mm layer, 2 walls, 15% infill
4mm PLA 0.2mm layer, 2 walls, 15% infill
3mm PLA 0.2mm layer, 2 walls, 15% infill
5mm ASA 0.2mm layer, 2 walls, 15% infill
Similar models
Free
bolt latch
MakerWorld
Free
Customizable Slide Bolt Gate Latch, Print-in-Place
MakerWorld
Free

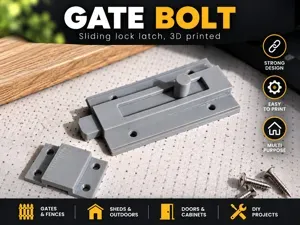

Gate Bolt
MakerWorld
Free
Sliding Door Bolt Lock–Printable Latch with Handle
MakerWorld
Free

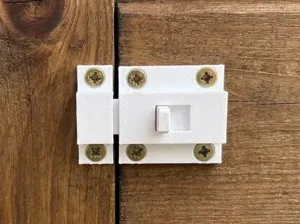

SlideLock – Easy Print Sliding Bolt Lock
MakerWorld
Free

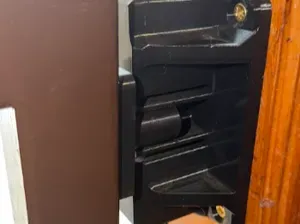

PUSH-TO-OPEN Heavy Duty Gate Latch
MakerWorld
Free
Sliding Barn Door Catch / Latch
MakerWorld
Free

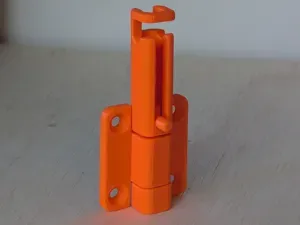

Sliding-bolt lock (vertical)
MakerWorld
Free
sliding bolt door latch
MakerWorld
Free

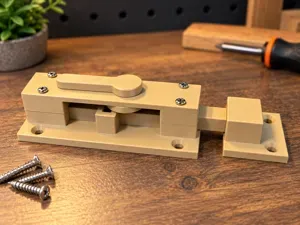

Mechanical Sliding Bolt Latch
