6" 10" 19" Rack Panel Generator – Blank & Vented

Follow the collection for new rack modules and updates

Boost Me Consider giving it a boost, its free and helps me keep interest in adding more features

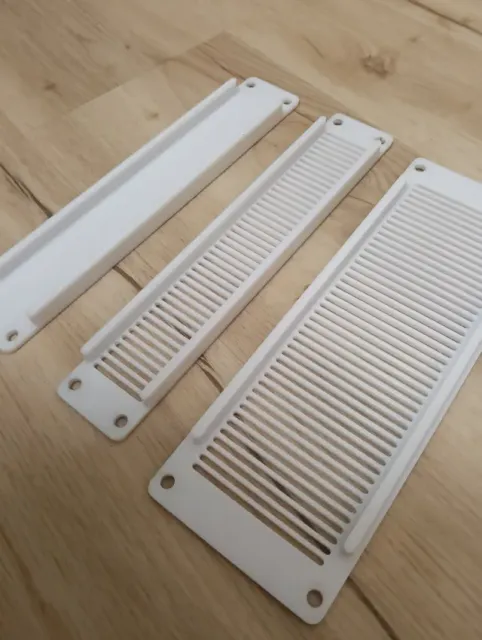

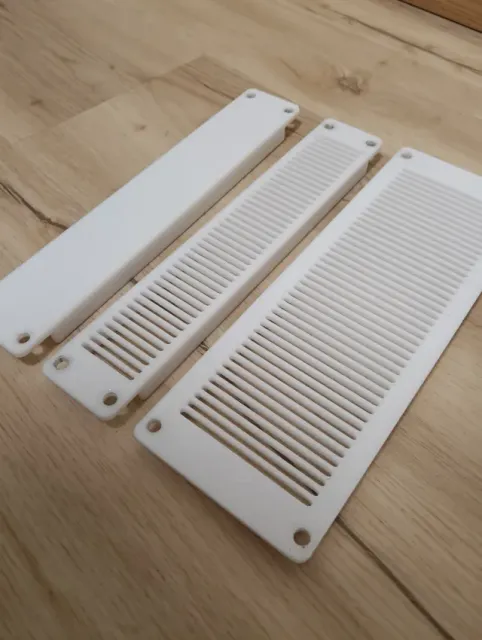

A fully parametric rack panel designer for homelab, networking, and compact server setups. You can generate both blank panels and ventilated panels from the same model, making it ideal for modular rack builds.

The design is based on standard rack unit (U) spacing and is fully customizable in height, allowing you to create panels from 0.5U and above. Ventilation patterns are optimized for airflow while maintaining structural strength, and optional reinforcement improves rigidity when needed.

This model is designed for easy 3D printing with clean geometry and no supports required.

SUPPORTED SIZES

0.5U up to 10U, in 0.5 steps, could be unlimited but wont fit on any printer anyway.

From 6" racks up to 25" racks in 0.5" steps.

CHANGELOG

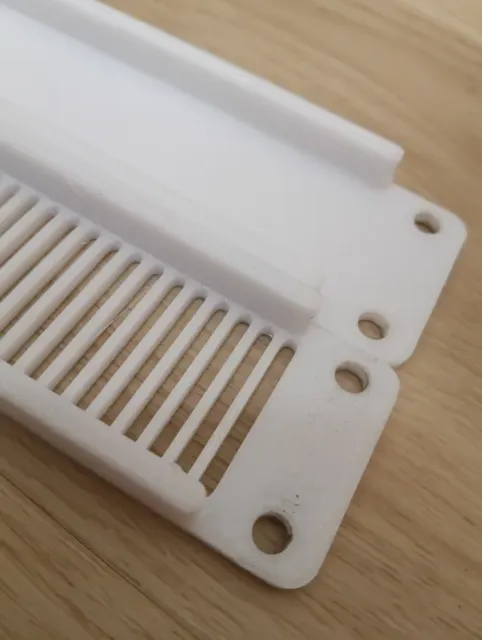

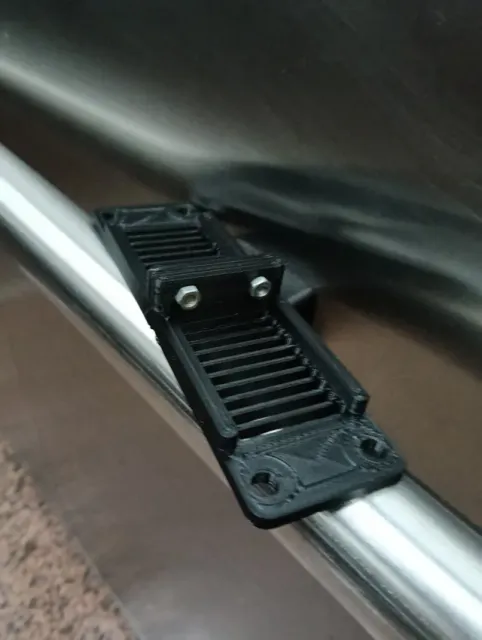

Added an option to split the panel in half to be able to fit 19" panels in most common printers.

Added more holes in the split when the pannel is bigger than 1U.

Added a closed backplate to make decorative panels without ventilation.

Added a slotted version of the mounting holes as an option.

Added SKADIS pattern, in this one you cannot change size for obvious reasons but you can use full shapes only and rotate

Added new patterns

Added 0.5U increments

Added Dense Skadis and Superdense Skadis patterns

Added hexagon and octagon patterns

Added multicolor for all patterns

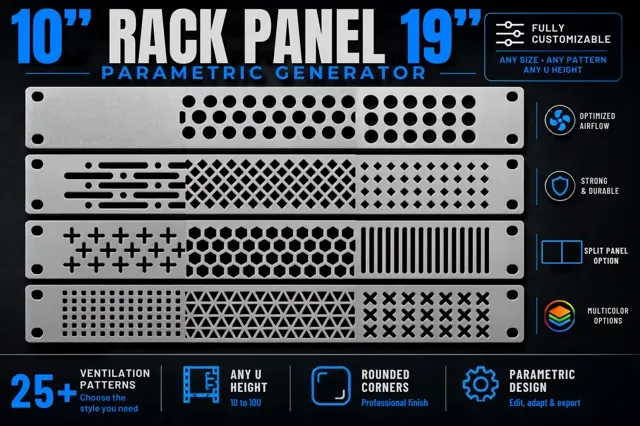

PATTERNS AVAILABLE

BLANK

WINDOW

BRICK OFFSET

CHEVRON

CHEVRON ALTTERNATE

CIRCLE

CIRCLE HEX

DASH DOT

DIAMOND

DIAMOND ALT

DIAMOND SQUARE

HERRINGBONE

HONEYCOMB

LEIDENFROST

LEIDENFROST ALT

LINES HORIZONTAL

LINES VERTICAL

LINES DIAGONAL

OCTAGON

PILL SLOTS
