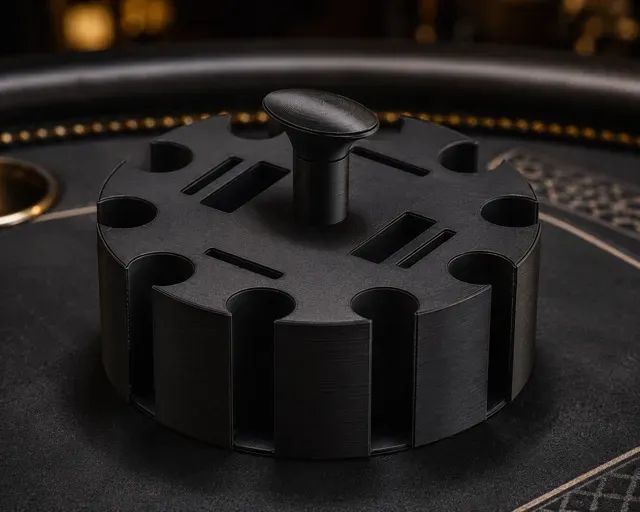

Poker Chip & Card Holder with Bottom Release

A poker organizer for chips, cards, and role tokens with 10 chip slots, a minimum capacity of 200 chips, and a bottom release mechanism controlled by the central handle. The model helps keep a poker set in one place and makes chip preparation more convenient before the game.

Overview

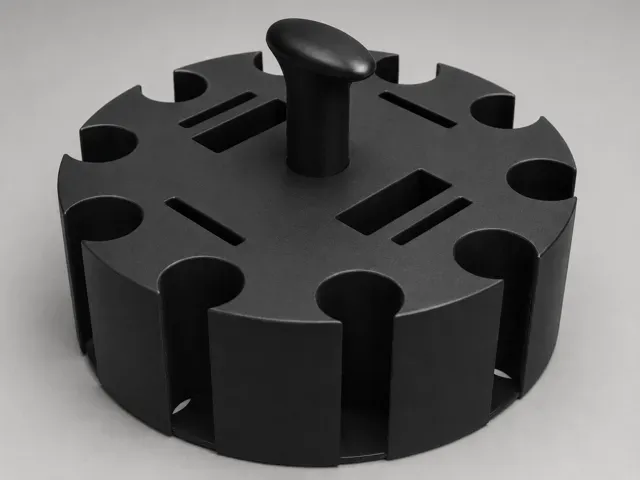

This is a poker holder organizer designed for storing and preparing game accessories before play. The model has 10 chip slots, each designed for 20 chips with an additional height clearance of about 20 mm. The minimum organizer capacity is 200 chips.

The top section includes 2 openings for playing card decks and 4 additional openings for role tokens: dealer, big blind, small blind, and all in. The central handle works both as a carrying grip and as the control element for the bottom release mechanism.

Mechanism

The construction consists of a main body, a movable bottom, a spring, and a handle. The bottom works as chip support, a shutter, and the release element. The spring locks the bottom in place and helps prevent it from opening on its own without user pressure. The body and handle include dedicated seating features for spring fixation.

To use the chip release mechanism, place the organizer on a flat surface, gently press the top handle, and rotate it in either direction until the openings in the bottom align with the chip slots. Then carefully lift the organizer so the chip stacks remain on the surface. Lift the holder smoothly to avoid disturbing the chip stacks or scattering the chips.

The bottom release mechanism is intended for carefully releasing chip stacks onto a flat surface. The result may depend on print accuracy, assembly quality, and chip size.

Dimensions

- Height: 95.700 mm - Width: 289.350 mm - Minimum capacity: 200 poker chips - Chip slots: 10 - Card deck openings: 2 - Role token openings: 4

Printed parts

The organizer consists of 4 printed elements :

- Main body - Movable bottom - Spring - Handle

The model is prepared as 3 STL files :

- Main body - Bottom - Spring with handle

Assembly

1. Place the bottom on a flat surface. 2. Place the main body on top so the central rod from the bottom passes through the center hole of the body. 3. Insert the spring into the central opening of the body. 4. With light pressure to compress the spring, screw the handle onto the rod from the bottom. 5. Check that the bottom rotates smoothly and locks in place before regular use.

Features

- 10 chip slots for storing at least 200 poker chips. - Dedicated openings for 2 card decks and 4 role tokens. - Bottom release mechanism for carefully placing chip stacks on a surface. - Central handle works as both a carrying grip and control element. - Spring locking helps reduce accidental bottom release. - Separate printed parts designed for assembly.

Use cases

- Storing poker chips, cards, and role tokens. - Preparing chip stacks before a game with friends. - Organizing a home poker set. - Carrying game accessories around the home. - Accessory for card and tabletop games.
