Lightsaber Blade Vertical Mount/Holder

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 5 Likes
  • 12 Downloads
  • 12 Makes
  • 41 Collected
  • 3 Boosts
  • 1 Comments
  • 0 Views

Author:Blackcrow

Published

Description

Boost Me Show your support if you like it! 😀 Lightsaber Blade Vertical Wall Mount

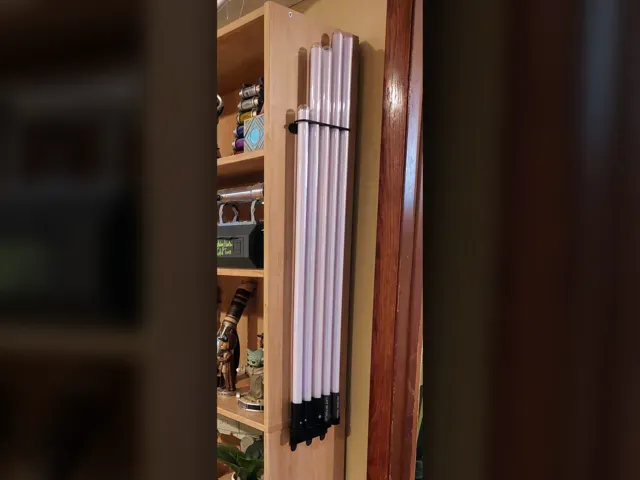

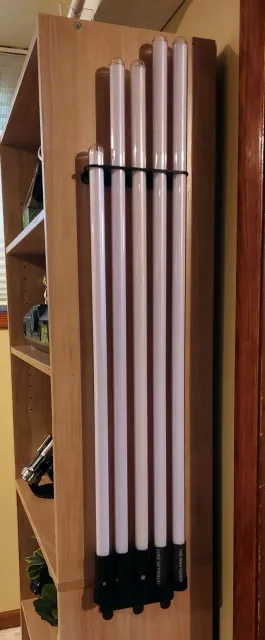

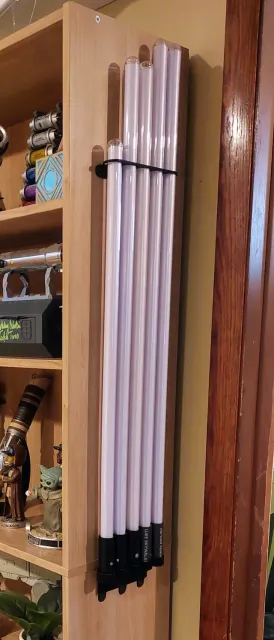

A clean, space-saving wall mount for displaying your lightsaber blades vertically — designed around Savi's Workshop (Star Wars: Galaxy's Edge, Disney) legacy/detachable lightsaber blades, but compatible with any detachable blade around 25–26mm in diameter.

Features

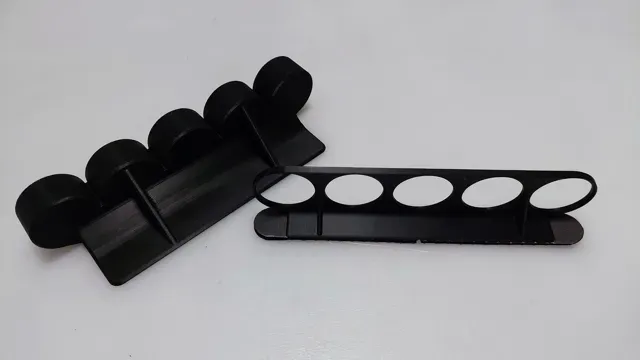

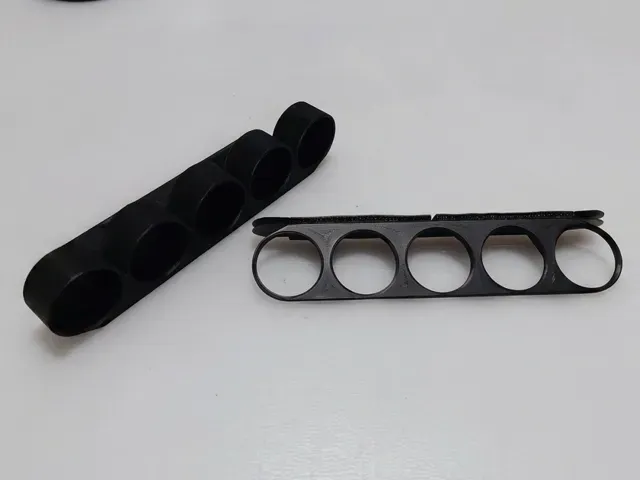

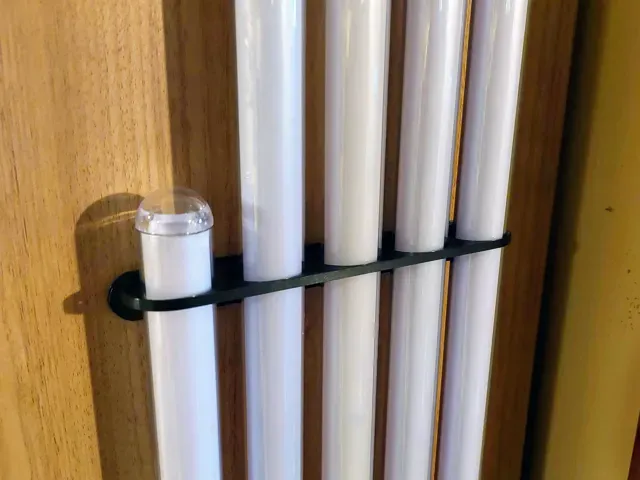

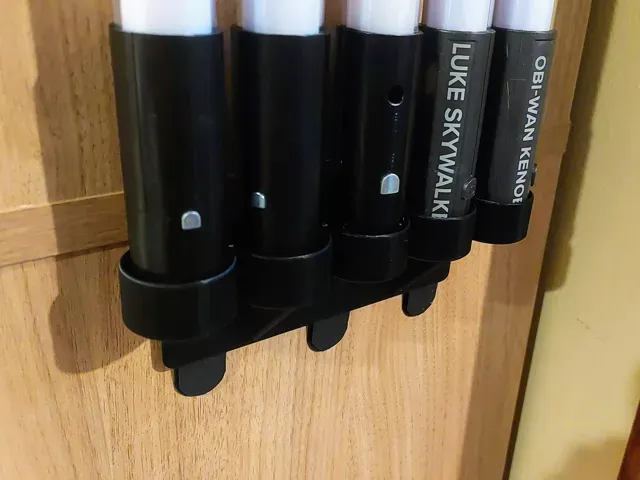

- Holds up to 5 blades side-by-side - Top cradle supports the blade emitter/tip, while a lower bar holds the shaft in place — keeps blades secure while still easy to remove - Low-profile design that mounts flush to a wall, shelf side, or bookcase - Great for displaying your collection of Galaxy's Edge Lightsaber Blades, or repurposed for any similarly-sized rod/tube Mounting

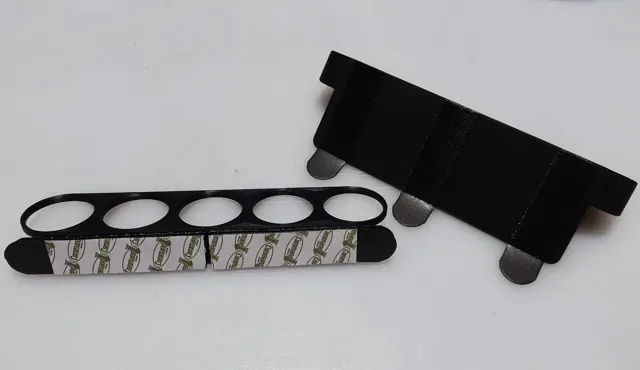

This mount is designed to attach with 3M Command Strips (no drilling required):

- Top holder: 2 Large Command Strips, trimmed 7–10mm off each end to fit - Bottom holder: 3 Medium Command Strips - Any other adhesive mounting strips of similar strength can be substituted if preferred How to Remove a Blade

- Lift the blade up - Tilt the bottom of the blade outward slightly to clear the bottom mount - Slide the blade down until it clears the top holder

Guides and print profiles

Print profiles and steps

0.12mm layer, 3 walls, 15% infill .12mm layer height for increase smoothness of the cups. Supports needed for the inside of the cups.

0.2mm layer, 3 walls, 15% infill .20mm layer height and increase printing speed to shorten the printing time at the expense of smoothness. Supports needed for the cups.
