Parametric Screw, Nut & Washer Generator

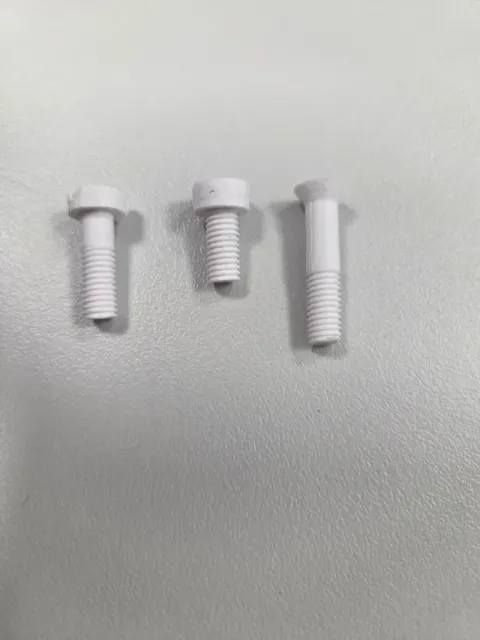

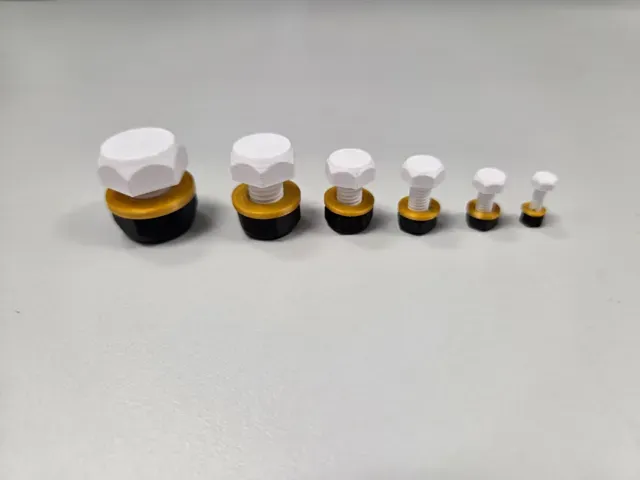

Parametric Screw, Nut & Washer Generator — Image 2 of 10

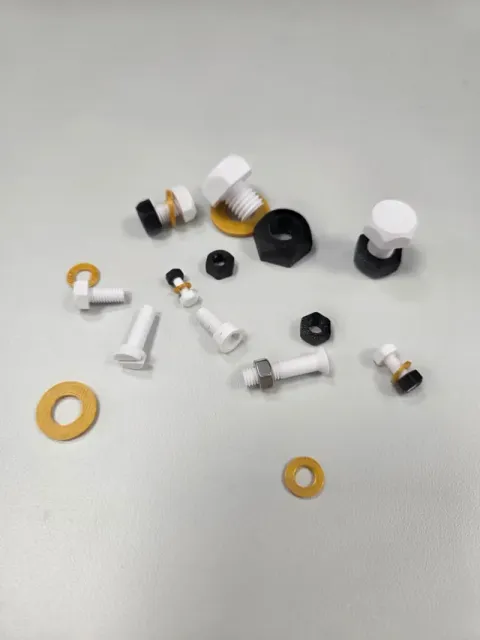

Parametric Screw, Nut & Washer Generator — Image 3 of 10

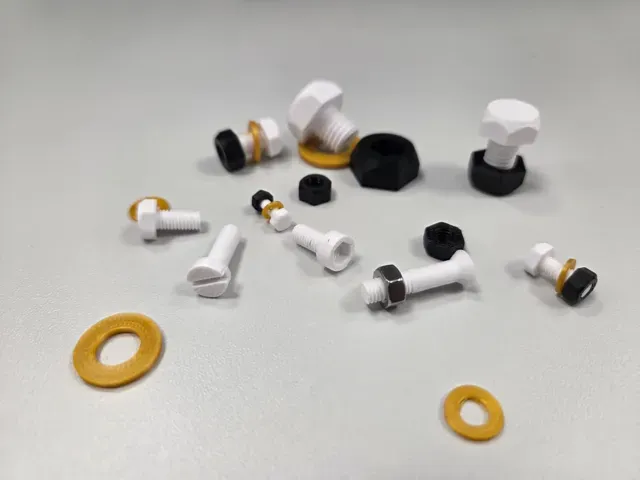

Parametric Screw, Nut & Washer Generator — Image 4 of 10
Parametric Screw, Nut & Washer Generator — Image 5 of 10
Parametric Screw, Nut & Washer Generator — Image 6 of 10

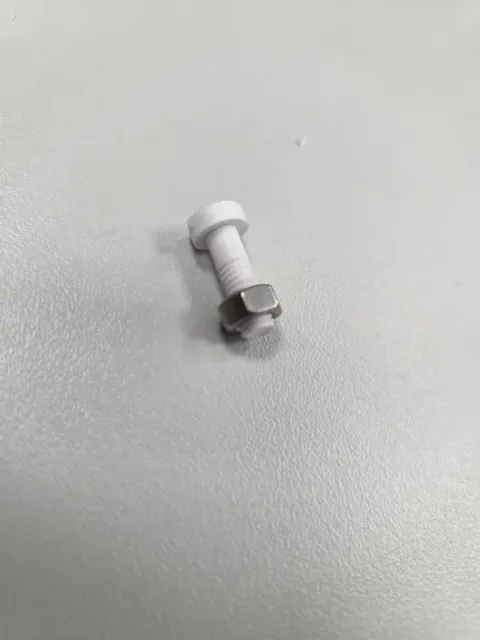

Parametric Screw, Nut & Washer Generator — Image 7 of 10
Parametric Screw, Nut & Washer Generator — Image 8 of 10

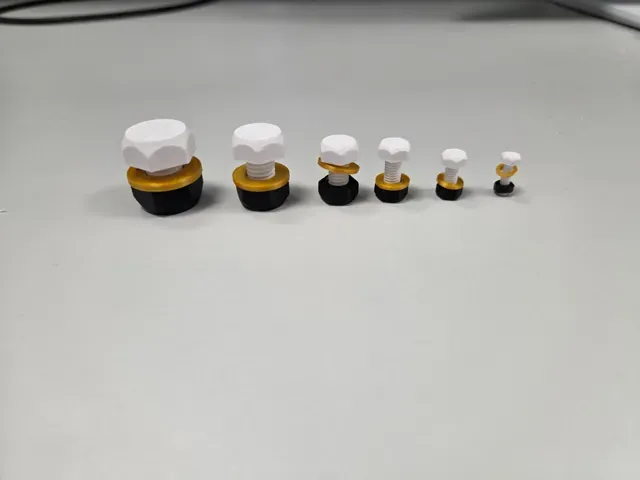

Parametric Screw, Nut & Washer Generator — Image 9 of 10

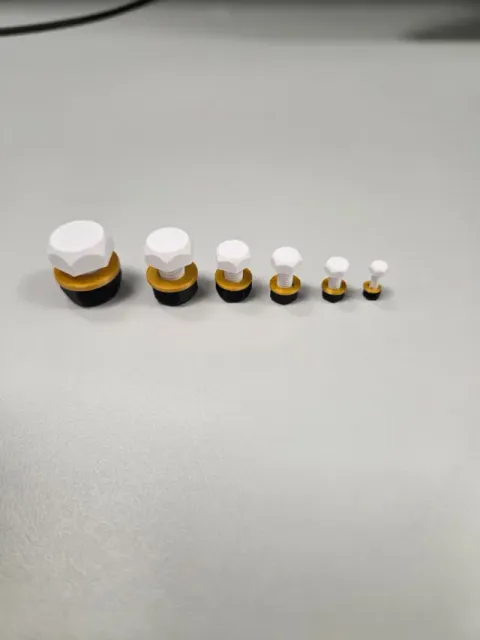

Parametric Screw, Nut & Washer Generator — Image 10 of 10
3D model · MakerWorld

Parametric Screw, Nut & Washer Generator

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
SCAD
  • 496 Likes
  • 872 Downloads
  • 372 Makes
  • 2 363 Collected
  • 9 Boosts
  • 3 Comments
  • 0 Views

Author:IExplosiV

Published

Download on MakerWorld

Description

Fully parametric bolt, nut, and washer generator for MakerWorld. This script allows you to customize your hardware based on your exact needs.

Features

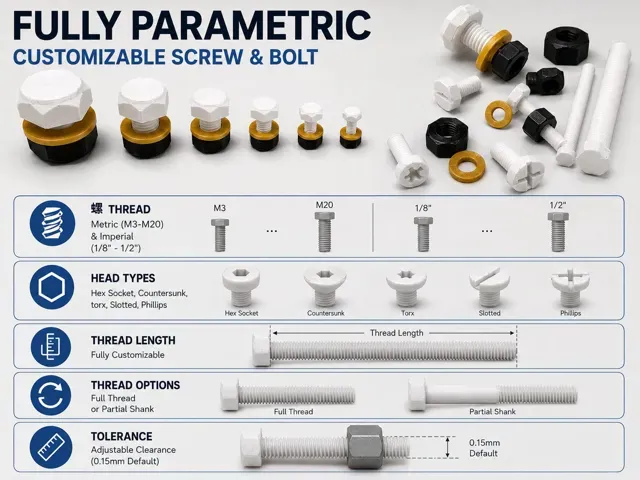

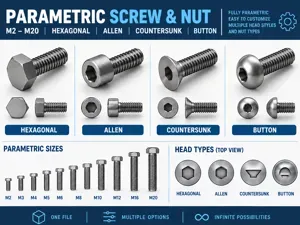

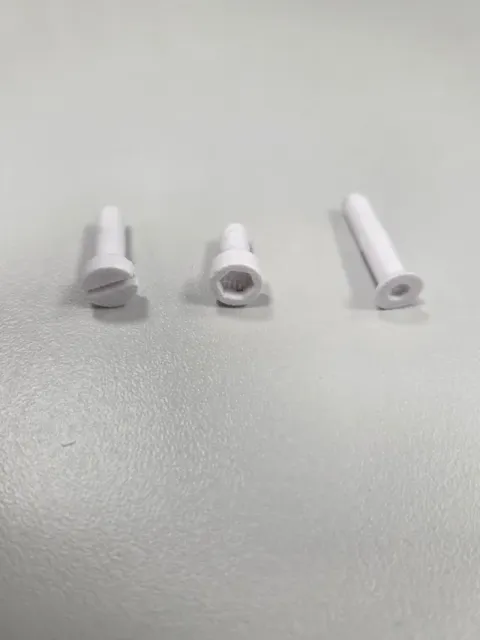

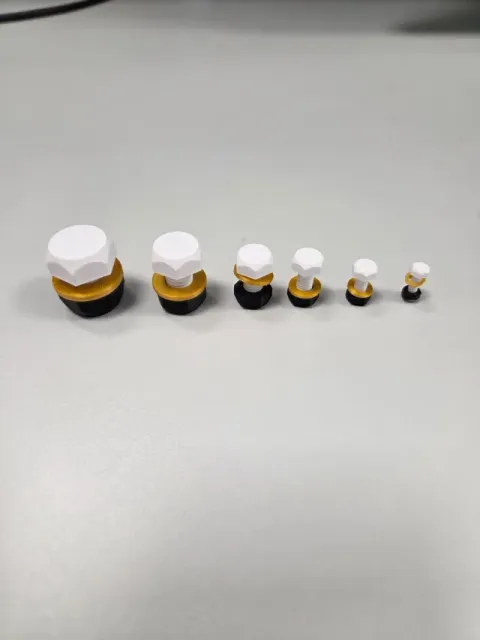

- Supports both Metric ISO from M3 to M20 and Imperial UTS from 1/8 to 1/2 inch with official standard thread pitches. - Choose from multiple head types including TORX , Hex Head, Socket Head, Button Head, Countersunk, Slotted, and Phillips . - Includes an option for partial threads to generate a smooth shank under the head. - Features a built in printable 45 degree chamfer on hex parts for easy 3D printing without supports. - Adjustable tolerance slider for the perfect nut fit on any calibrated 3D printer. Its very important to check your printers tolerances before pint to ensure perfect fit

Guides and print profiles

Print profiles and steps

0.1mm layer, 3 walls, 25% infill please check you tolerances before printing

Tags

parametricopenscadcustomizerscrewboltnutwasherthreadscrewshardwaremetricimperialm3m4m5m6m8m10m12fastenerhexsocketbuttonheadcountersunkphillipsmechanicalprintableutilityfunctionalpartsdiytoolsengineeringroboticstolerancebambubambulabp1pp1sx1ca1makerlab3dprintingcustomorganizerworkshopsortingrepairsparepartscomponent
