ProClip Filament Clip

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 25 212 Likes
  • 128 164 Downloads
  • 119 055 Makes
  • 81 607 Collected
  • 5 997 Boosts
  • 21 278 Comments
  • 0 Views

Author:JDJDJD

Published

Download on MakerWorld

Description

Boost Me If ProClip helps you on your 3D printing journey, please Boost me! Meet the ProClip!

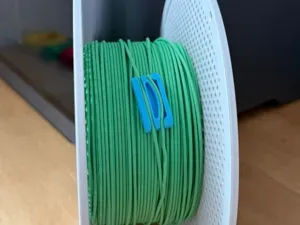

The ProClip Filament Clip is a pleasure to use and easy to print.

ProClip has a built-in handle that works in coordination with a clamping tunnel to manage and secure your filament.

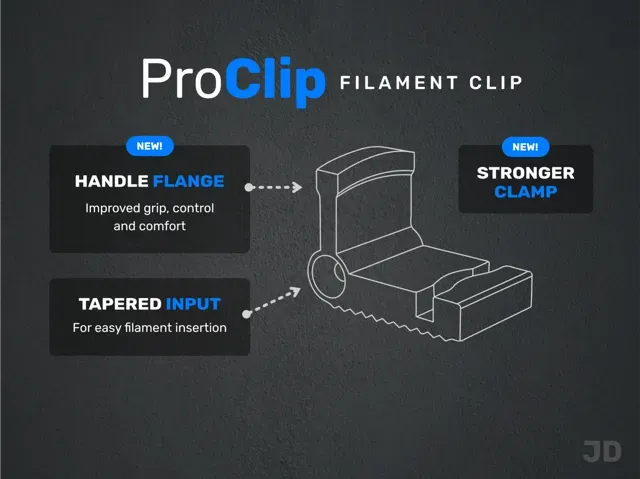

NEW! ProClip V2 features:

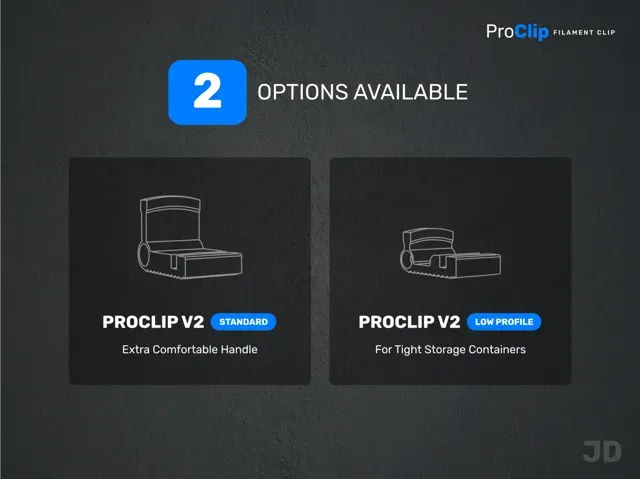

- A extra durable clamp inside the tunnel. - Symmetrical input holes work for right handed and left handed users. - Handle flange provides good control and a comfortable grip. - A Low Profile option designed for tight storage containers.

BENEFITS:

- No Supports - No Overhangs - No Brims - Designed for FDM Printing - Free to Download!

UPDATES:

- 10/06/23 ProClip V2 Released

TIPS:

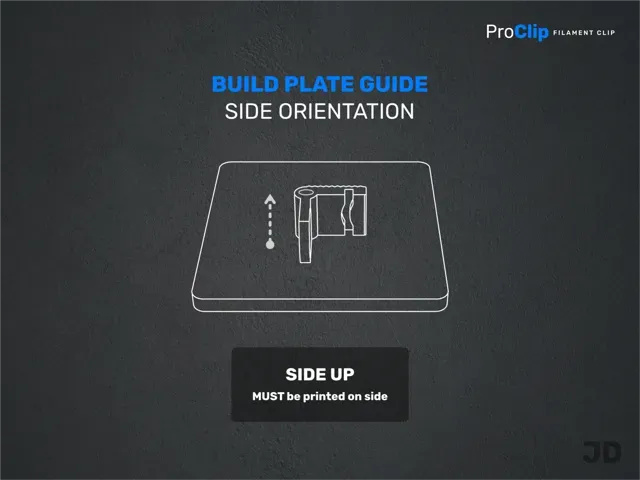

- MUST be printed on side - Printer tolerances vary. If your ProClip is running tight just slide a piece of filament back and forth to break it in a little bit. - Glue stick can help condition the print bed for proper adhesion/release and is recommended. - Remove before placing spool in AMS.

NOTES:

- ProClip can be used commercially, but can’t be resold.

TESTED PRINT DETAILS:

ProClip has been built around the following conditions.

- Glue Stick: Yes (without is at your own risk) - Support: Disabled - Walls: 2 - Brims: No - Nozzle: 0.4mm - Layer Height: 0.2mm - Infill: 15% Gyriod

Guides and print profiles

Print profiles and steps

ProClip V2 Nozzle: 0.4mm

Layer Height: 0.2mm

Material: PLA

Walls: 2

Infill: Gyroid 15%

Glue stick: Yes

ProClip V2 Low Profile Nozzle: 0.4mm

Layer Height: 0.2mm

Material: PLA

Walls: 2

Infill: Gyroid 15%

Glue stick: Yes

10 Clips Same awesome design, just 10 clips ready to go

Single Clip w/ brim, 0.16mm layer, 2 walls, 15% infill - 0.16mm layer - 2 walls - 15% infill - 6mm outter brim

Low Profile, 6 clips, 101% scale for ease of use Following the advice of other reviewers, I scaled these to 101%, which reduced the chances of filament breaking off on removal.

8 min SUPER RELIABLE- Copy and Paste for more Perfect settings optimized for speed and reliability.

First layer prints slow for better adhesion and far lower failure rates.

Simply copy and paste for more.

V1, No Brim, 0.16mm layer, 2 walls, 15% infill

Ultra Low Profile for filament drying I chopped off the handle of the low profile completely to allow using it for drying ABS filament in the AMS.

Only 7 min: 0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill Only 1 Piece.

Ready in 7 min without calibration. 0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

0.16mm layer, 4 walls, 15% infill

PRUSA MINI, 0.2mm layer, 2 walls, 15% infill Profile for the prusa mini printer. Using the same defaults as the author suggested.

0.2mm layer, 2 walls, 15% infill 6 uds

A1 mini, optimized 0.2mm nozzle - Works on a1 mini - 0.2mm nozzle - optimized print time

0.2mm layer, 2 walls, 15% infill To add names to the clips to easily identify filament types without having to check the side of the spool.

Instead of priting direction onto the ProClip, I made tags that can easily be removed when swapping between different type of filaments.

A quick creation I made on Bambu Studio for my own use and hope others find it useful too.

Two version I tested with PLA basic:

- Thin - 1mm - minimal material - Thick - 2mm - tighter fit, more durable

0.2mm layer, 3 walls, 5% infill

130 clips (Max I think) (I wonder if anyone will use this)
