10" Rack 3U 4x 3.5" + 6x 2,5" Caddy hotswap Module

Follow the collection for new rack modules and updates

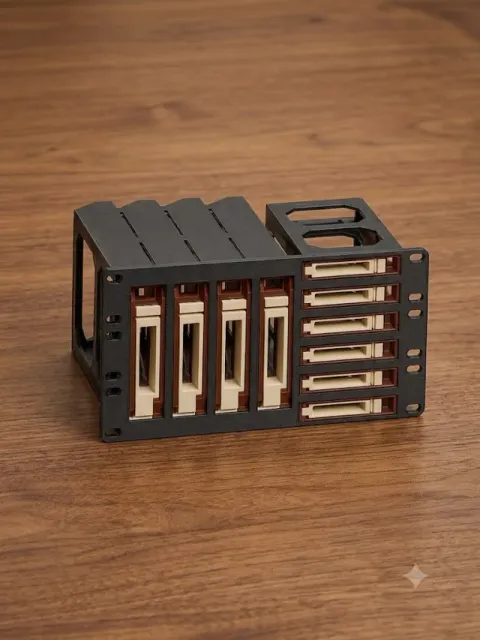

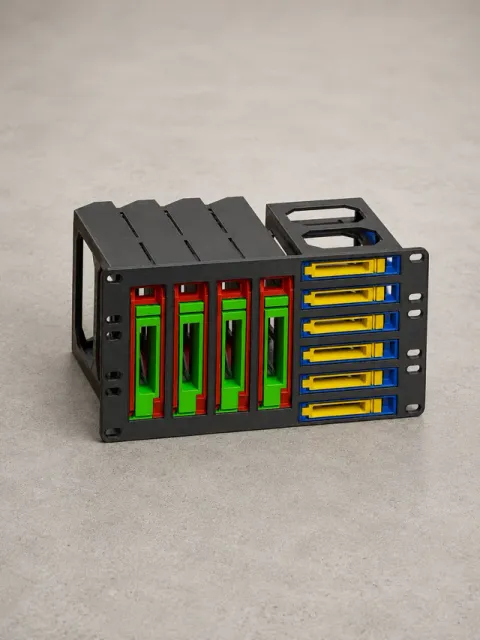

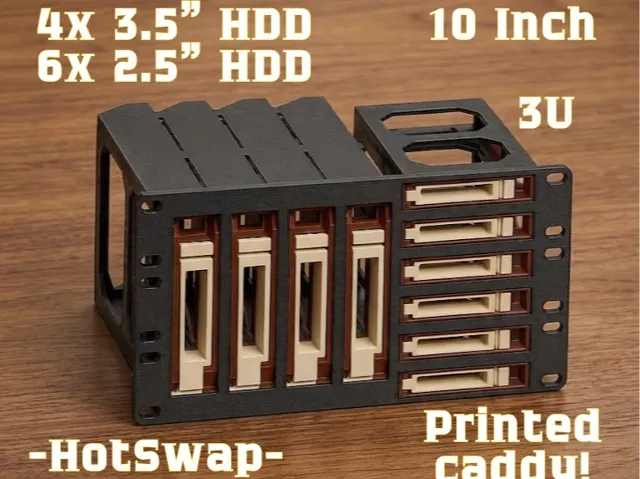

This is a 3U rack module for 4× 3.5" drives and 6x 2.5" drives , designed specifically for short-depth HP-style caddies , solving a common issue with existing designs that require extra depth to fit standard trays.

Most available solutions need additional clearance behind the drives, making them unsuitable for compact racks or shallow enclosures.

This version is optimized to fit shorter caddies while maximizing storage density in a compact 10-inch rack.

Additionally, I have designed compatible 3D printable caddies, allowing you to build a complete storage system even if you don't have original HP Gen8/Gen9 caddies.

Key Features

✅ Holds 6× 2.5" SATA/SAS drives and 4× 3.5" SATA/SAS drives

✅ Designed for short-depth HP-style caddies

✅ Compatible with HP Gen8 and Gen9 drive caddies

✅ Compatible with my 3D printed HP-style caddies 3.5" Files here and 2.5" Files here

✅ Space-efficient 3U design

✅ Strong and rigid construction

✅ Perfect for compact homelab storage servers

Boost Me If you found this model usefull consider giving it a boost

Why this model?

- Existing drive cages often require more rack depth. - Many designs are incompatible with short HP-style caddies. - This module maximizes storage capacity while remaining compact. - Ideal for building modular storage systems in 10-inch racks. Use Cases

- NAS builds - Homelab storage servers - TrueNAS - Unraid - Proxmox - 10" rack systems - Compact storage appliances Printing

- 0.2 mm layer height - 2–3 walls - 15–20% infill - PETG / ABS / ASA recommended Assembly

To be ablke to achieve hotswap, you are going to need these adapters Link here

I recommend using the sas to sata adapters as they can fit sas disks as well as sata disks without any downside and are not much more expensive.

To mount all drives you will need:

- 6 HP Gen8/Gen9 compatible 2.5" drive caddies (original or my printable version) - 4 HP Gen8/Gen9 compatible 3.5" drive caddies (original or my printable version) - 10 SATA/SAS adapters - 20 M3×8 mm screws (or similar) for mounting the adapters The drives simply slide into the module, providing a clean, compact and modular storage solution for your homelab.
