Shower Basket

Wall-Mounted Shower Basket with Razor Hook, Toothbrush Slots & Utility Hooks

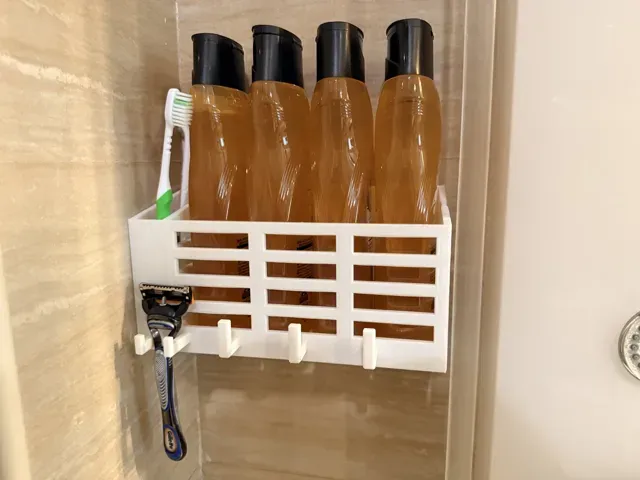

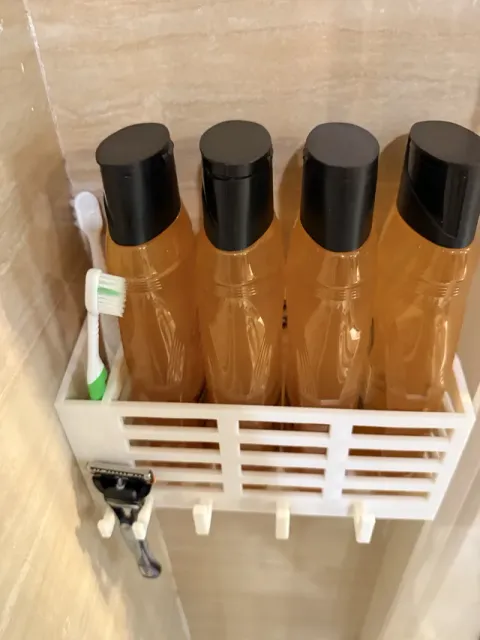

I designed this basket for an awkward spot in my shower where an old caddy used to hang — the wall already had two screw holes in it, so I built this to reuse them instead of drilling new ones or leaving them exposed. That's also why the mounting holes are where they are: the top screw hole sits 1 mm to the left of the bottom one, intentionally, to match my existing wall holes. Don't worry if your holes are perfectly aligned — both holes have generous slop (9 mm openings for a standard 4 mm screw, about ±2.5 mm of wiggle in every direction), so perfectly vertical screw pairs fit with room to spare. If you choose to use the adhesive only, I would use a very strong adhesive or consider less weight than my use.

FEATURES

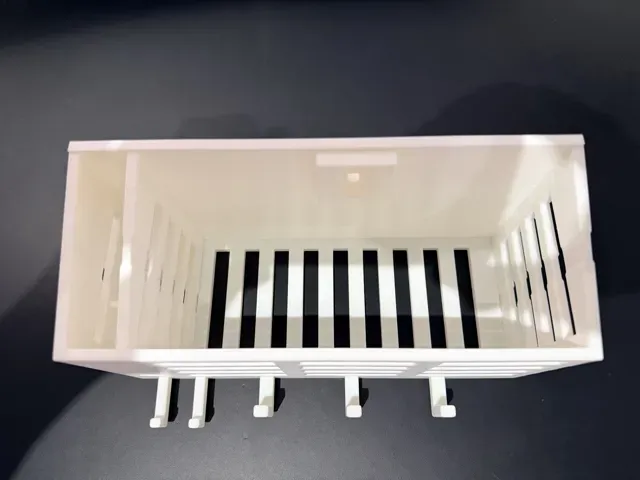

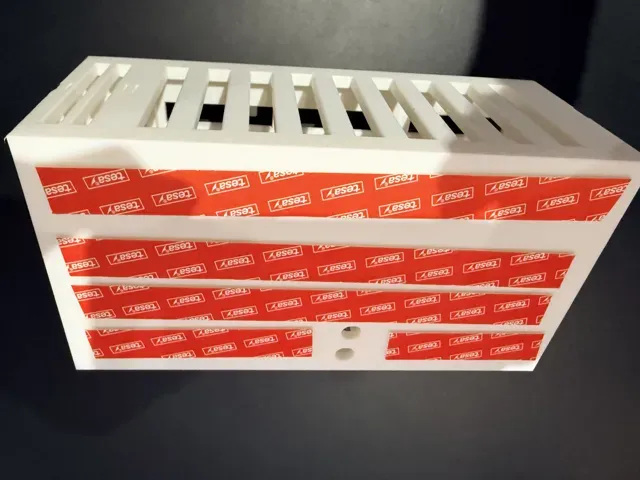

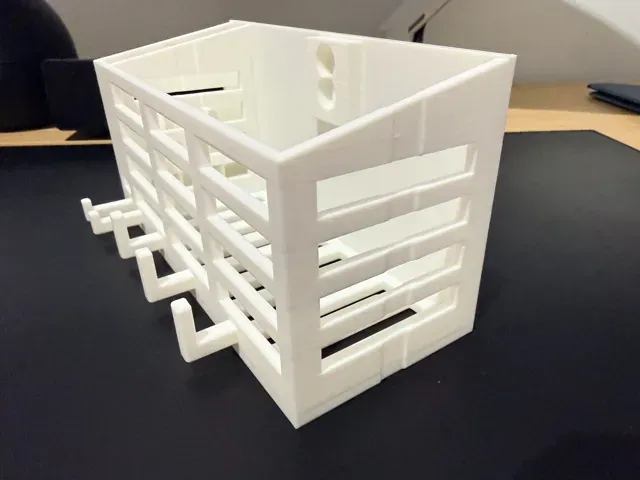

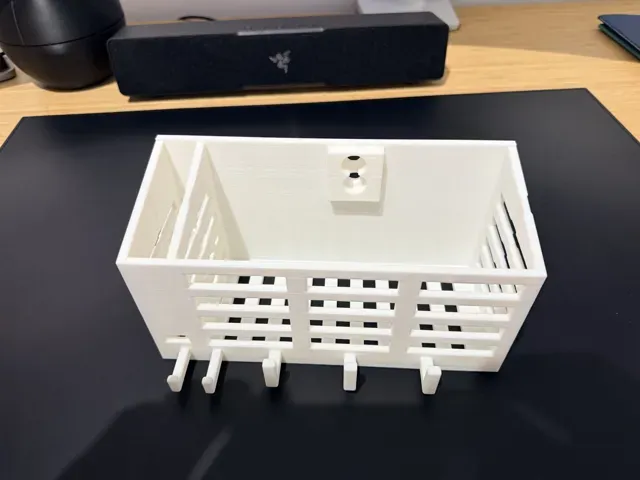

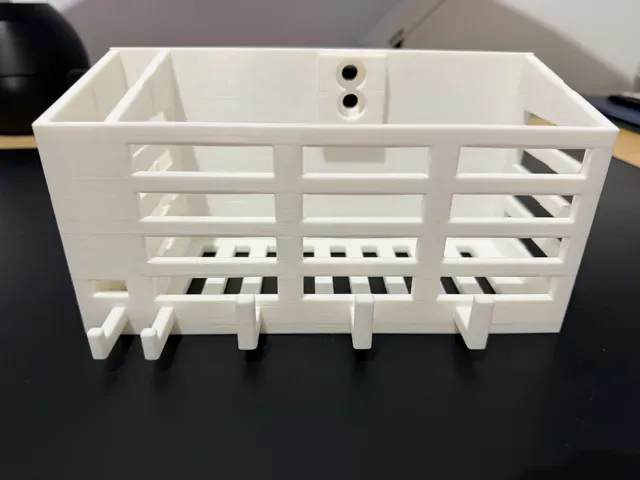

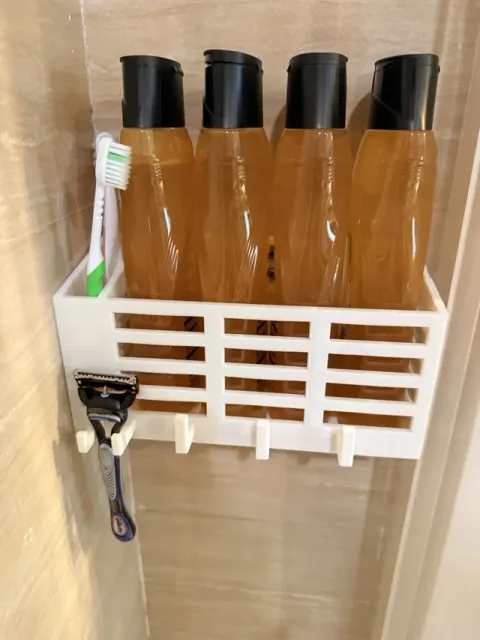

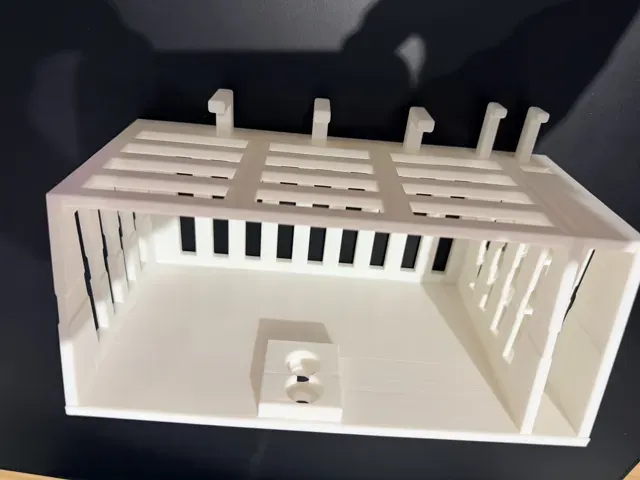

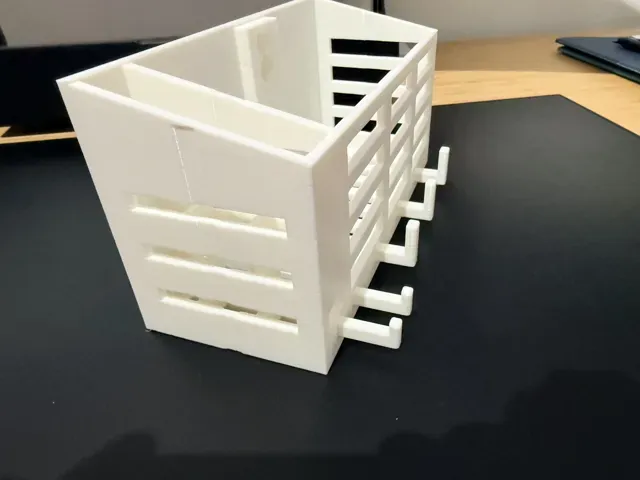

- Solid flat back wall (23 x 12 cm) for adhesive mounting — use waterproof mounting tape or silicone across the full surface - Two recessed screw mounts near the top as well — heads sink into an interior boss, so nothing pokes into your storage space. Use screws, adhesive, or both (both = rock solid) - Main basket holds full-size shampoo and body wash bottles (interior ~19 x 8.5 cm, sides 10-12 cm tall) - Slatted front, sides, and bottom so water drains straight through — no standing water - Toothbrush compartment on the left with 3 divided slots and drain holes - Two-prong razor hook on the front — fits Gillette Fusion 5 and similar razors (16 mm gap, end bumps keep it from sliding off) - 3 J-hooks across the front for washcloths, sponges, loofahs, and other light items - All touchable edges are filleted or chamfered — nothing sharp to catch a finger on PRINTING

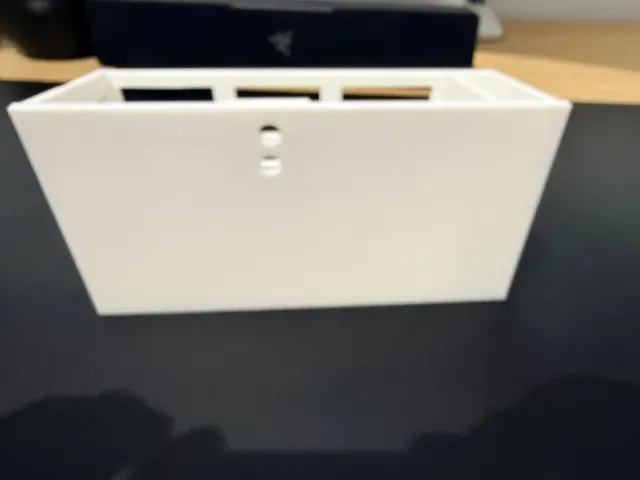

- Print flat on its back (solid back wall on the build plate) — great bed adhesion, no brim needed - Supports: only needed under the small hook tips - 4 walls, 25-30% infill, 0.2 mm layers - PETG recommended for hot/steamy showers; PLA+ works too - Tested to comfortably hold five 20 oz bottles (~3 kg / 6.5 lbs) with wide safety margin MOUNTING Screw holes are 15 mm apart vertically, centered 13 cm from the left edge, near the top of the back wall so you can still apply adhesive everywhere else. Drive the screws from inside the basket — the top hole lines up above the front rail for a straight shot with your screwdriver.

DIMENSIONS

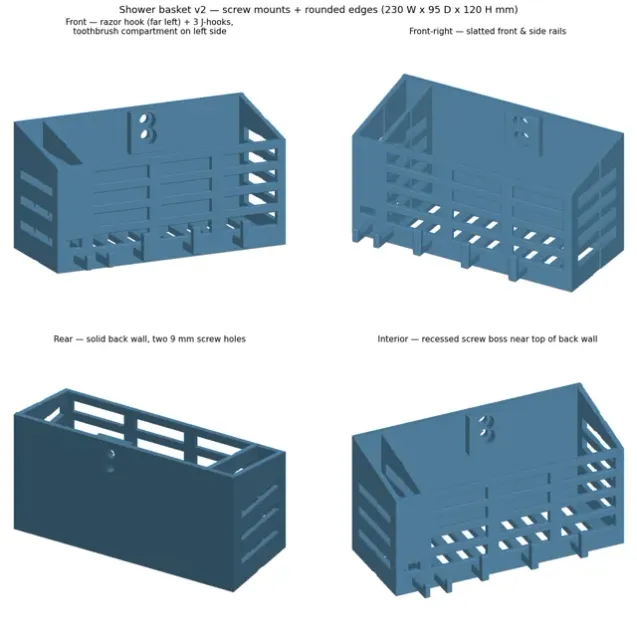

- Overall width: 230 mm (23 cm) - Overall depth: 95 mm (9.5 cm) — 123 mm (12.3 cm) including front hooks - Overall height: 120 mm (12 cm) - Back wall (adhesive surface): 230 x 120 mm, 5 mm thick, solid and flat - Front wall height: 100 mm (10 cm) - Side walls: slope from 119 mm at back to 100 mm at front - Wall thickness: 5 mm - Floor thickness: 6 mm - Main basket interior: 193 mm wide x 85 mm deep - Toothbrush compartment: 22 mm wide channel, 3 slots approx. 26 mm each - Toothbrush compartment drain slots: 6 mm wide - Slat openings (front and sides): 12 mm tall bands - Bottom drain slots: 10 mm wide - Slot edge chamfers: approx. 0.6 mm at 45 degrees - Screw holes: 9 mm diameter, fits standard 4 mm screws with +/- 2.5 mm adjustment - Screw hole spacing: 15 mm apart vertically, top hole offset 1 mm left - Screw hole position: centered 13 cm from left edge, 93 mm and 108 mm from bottom - Counterbores (recessed screw heads): 16 mm diameter, max head height 13 mm - Screw boss pad: 36 x 40 mm, 8 mm proud of interior back wall - Razor hook: 2 prongs, 6 mm wide each, 16 mm gap, 28 mm reach - J-hooks (3): 8 mm wide, 22 mm reach, upturned tips rise 18 mm - Hook positions from left edge: razor at 30 mm, J-hooks at 80, 130, 180 mm - Weight capacity: approx. 3 kg (five 20 oz bottles) with wide safety margin - Print weight: approx. 350-400 g in PLA at 25-30% infill
