🛠️ Universal HVAC & Radiator Fin Straightener Comb

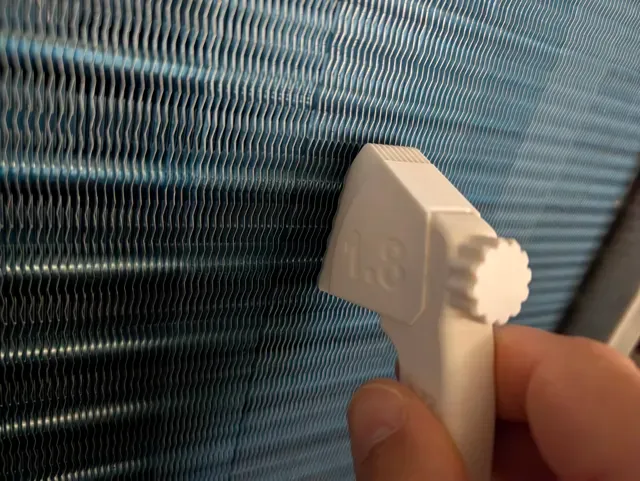

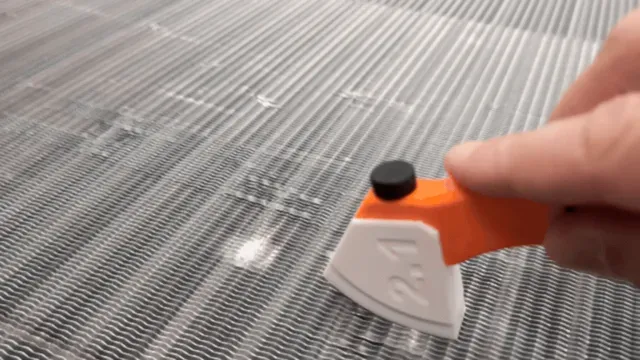

An essential workshop and maintenance tool for air conditioners, radiators, and finned-pack heat exchangers. Precisely straighten bent or crushed aluminum fins to restore proper airflow and heat exchange efficiency.

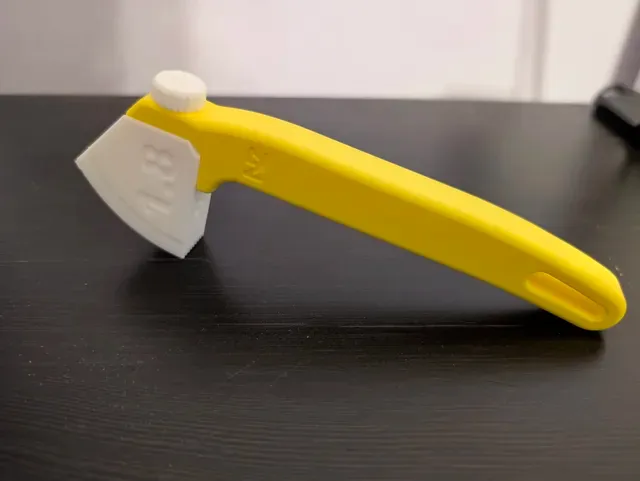

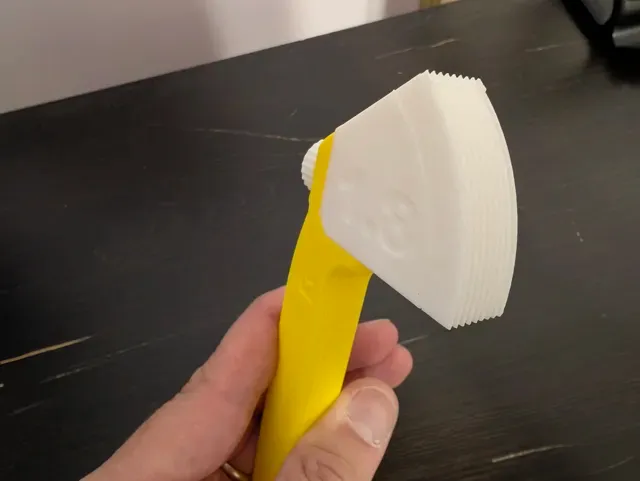

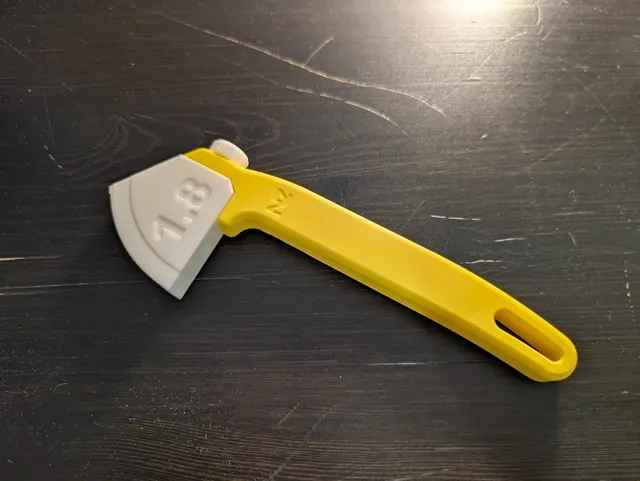

Designed to be modular and durable: interchangeable comb heads swap in seconds via a printed thumb screw.

🚀 Found this tool useful?

If this model saved your AC, radiator, or tumble dryer, leaving a Boost is 100% FREE for you!

It costs you $0, takes just a second, and helps keep updates coming.

Thank you for your support!

Boost Me It costs you $0 to say thanks! Boost it!

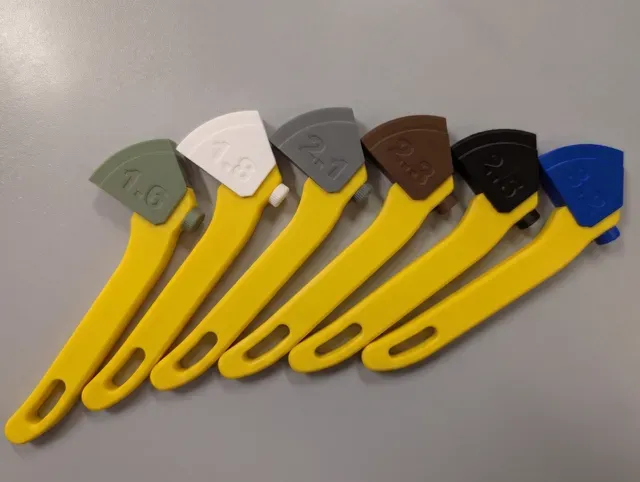

📐 Included Fin Pitches (8 Sizes)

Each comb head is clearly embossed with its pitch size:

- 1.3 mm (NEW!) - 1.4 mm - 1.6 mm - 1.8 mm - 2.1 mm - 2.3 mm - 2.5 mm - 3.2 mm 🧵 Material Recommendations & Filament Drying

- HANDLE ➔ PETG: Provides optimal flexibility and mechanical strength to absorb bending stress. - COMB HEADS & SCREW ➔ PLA (or ABS): PLA offers the stiffness required to push through bent aluminum without flexing. (Do NOT print comb heads in PETG, as the teeth are too soft!) 📐 How to Measure the Correct Fin Pitch

Measuring a single fin gap can be tricky and lead to errors. Use the 10-gap rule for precise results:

- Count 11 Fins: Position your caliper or ruler across 11 consecutive fins (this spans exactly 10 spaces). - Measure the Total Distance: Record the distance from the 1st fin to the 11th fin in millimeters. - Divide by 10: Divide your measurement by 10 to get the exact fin pitch. - Example: If 11 fins measure 18 mm total $\rightarrow$ $18 \div 10 = \mathbf{1.8\text{ mm}}$ pitch. Select the 1.8 mm comb head!

⚠️ CRITICAL: DRY FILAMENT REQUIRED!

For fine-pitch combs (especially 1.3 mm and 1.4 mm ), your filament must be completely dry . Any stringing caused by moisture will fuse the fine teeth together during printing, rendering the comb unusable.

🔄 Update 2.0 Highlights

- 🆕 New 1.3 mm Pitch: Added ultra-fine comb head. - 📦 All-in-One Plate: Added a single-plate profile (Handle + Comb + Screw, all in PLA) for quick printing. - 🔧 Threading & Tolerance Fixes: Fixed 1.4 mm thread fitting, added lead-in chamfers, and adjusted tolerances across all sizes for smooth hand-tightening. ⚙️ Recommended Print Settings

- 🟡 Handle (PETG): 0.20 mm layer height | 5 wall loops | 20% Gyroid infill | Supports: Yes - ⚪ Comb Heads & Screw (PLA): 0.16 mm layer height | 3 wall loops | 15% Gyroid infill (100% for screw) | Supports: None 🔧 Assembly

- Select the comb head matching your heat exchanger's fin pitch. - Insert the head into the handle slot. - Hand-tighten the thumb screw until secure—no metal hardware needed!
