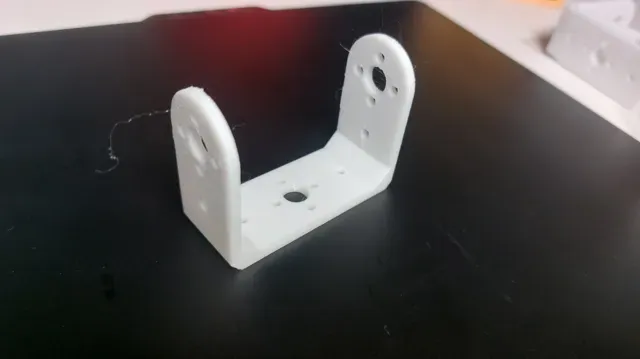

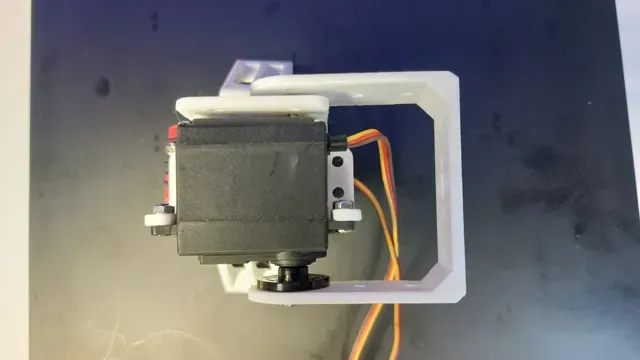

Heavy-Duty Pan-Tilt (MG996R) | Dual-Axis Gimbal

Hier ist eine ausführliche und professionelle Beschreibung, die du direkt für deinen MakerWorld-Upload verwenden kannst:

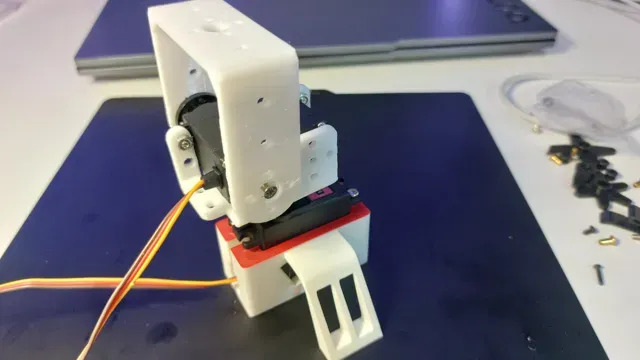

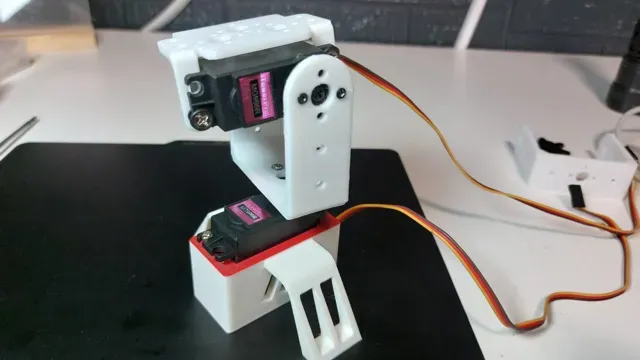

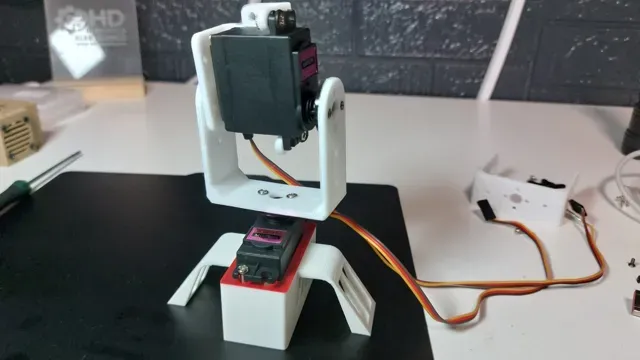

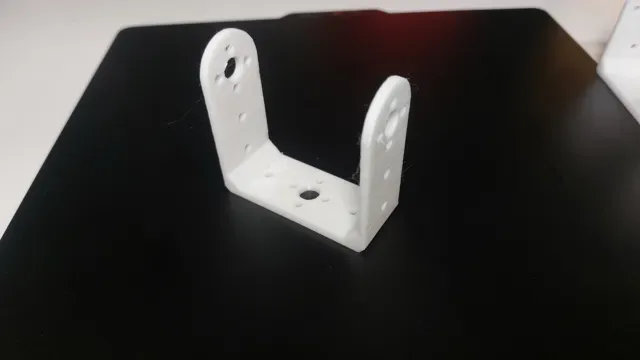

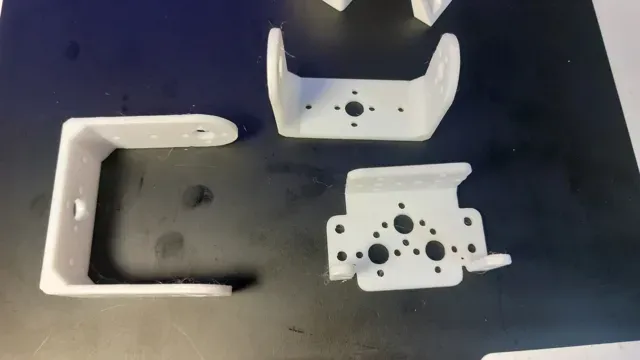

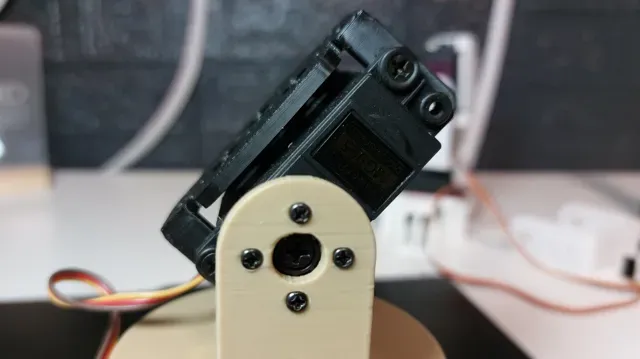

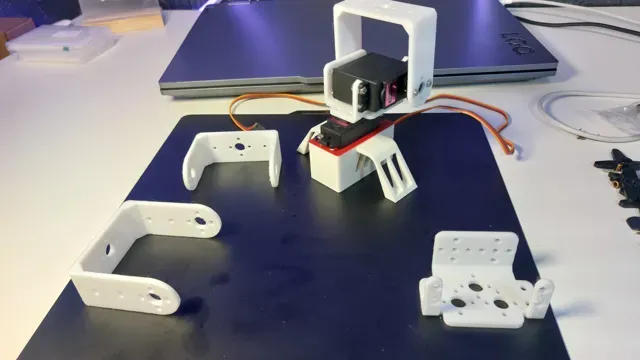

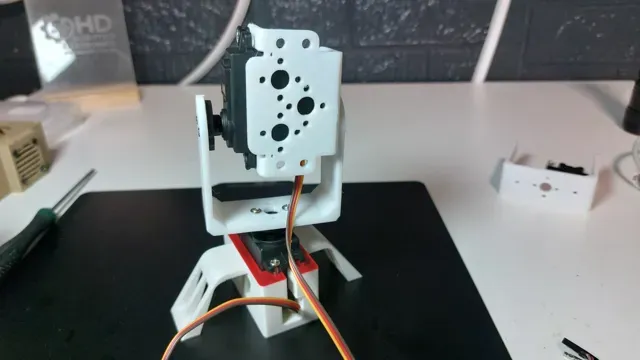

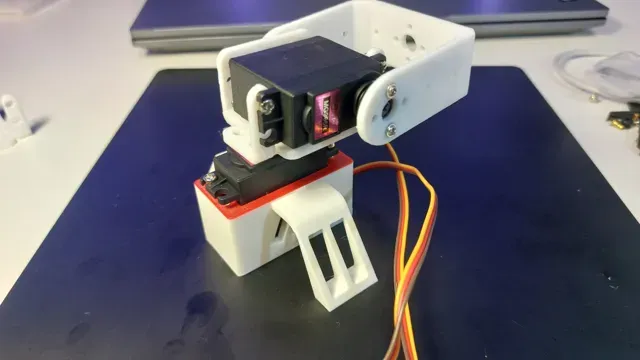

🚀 Heavy-Duty 2-Axis Pan-Tilt Mount (MG996R)

Upgrade Your Robotics & Camera Projects!

This robust, fully 3D-printable 2-Axis Pan-Tilt System is specifically engineered for high-torque TowerPro MG996R metal-gear servos . Perfect for smooth camera tracking, sensor orientation, or custom robotic systems!

🖨️ Material Recommendation & Printing Strategy

Why PETG is the Recommended Choice:

While this model can be printed in standard PLA , we highly recommend using PETG for the best long-term performance:

- 🛡️ Superior Layer Adhesion & Impact Resistance: Pan-tilt mechanisms experience continuous rotational forces and mechanical stress. PETG is tougher and less brittle than PLA, preventing layer snaps around the screw mounting holes. - 🌡️ Heat Resistance: High-torque digital servos like the MG996R can generate noticeable heat during extended operation under load. PETG resists warping at higher temperatures where PLA might soften over time. - 🔩 Flexibility for Screw Threads: PETG offers slightly better elasticity, making direct screw insertion cleaner and reducing the chance of cracking around plastic joints. (Note: Standard PLA works fine for light loads, short runs, or basic prototyping!)

📐 Optimal Layer Height Strategy (0.20mm ➔ 0.12mm)

To achieve the ultimate balance between strong bed adhesion and ultra-smooth mechanical motion, use the following layer setup:

- First Layer Height (0.20 mm): - Ensures maximum bed contact and reliable initial adhesion. - Prevents corner warping and guarantees a solid foundation for all parts. - Main Body & Remaining Layers (0.12 mm Fine Detail): - Ultra-smooth rotational surfaces: Minimizes layer friction where components pivot and rotate. - Precise screw holes: Provides crisp thread gripping and accurate fitting for M3/servo hardware. - Clean aesthetic finish: Hides layer lines on curved and angled outer shells for a professional studio look. ⚙️ Recommended Print Settings at a Glance

Parameter Setting / Recommendation

Material PETG (Recommended) or PLA

First Layer Height 0.20 mm (For optimal adhesion)

Subsequent Layer Height 0.12 mm (For high precision & smooth motion)

Walls / Perimeters 3 - 4 Walls

Infill Density 25% - 30% (Gyroid or Grid recommended)

Supports Minimal / Enabled where indicated by model orientation

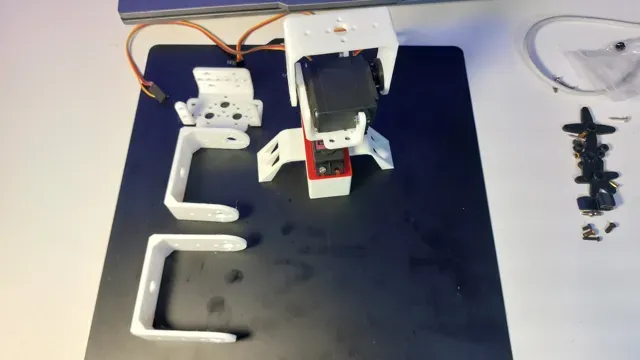

🔩 Required Hardware

- 2x MG996R Servo Motors (Digital Metal Gear) - M3 Hardware (Screws & Nuts) - Standard Servo Horns (included with standard MG996R packages)
