Customizable Grid-Stitch Floss Bobbins DMC Color

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 16 Likes
  • 15 Downloads
  • 13 Makes
  • 90 Collected
  • 0 Boosts
  • 0 Comments
  • 0 Views

Author:eginio

Published

Description

Tired of stickers peeling off or marker ink rubbing off your embroidery bobbins?

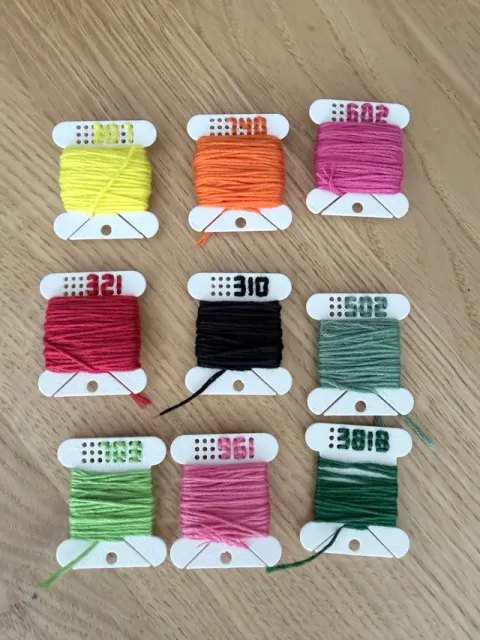

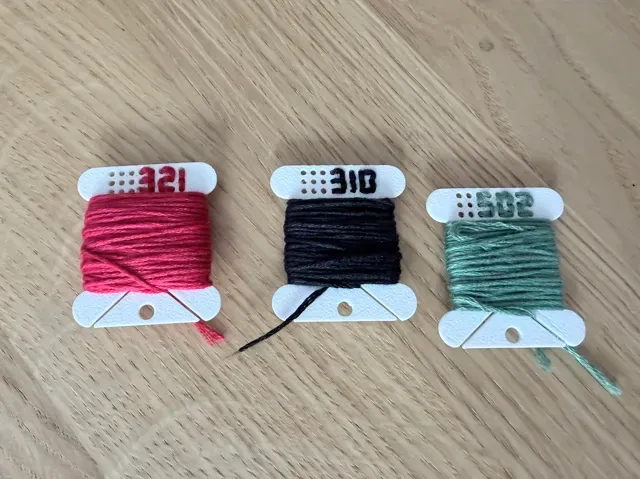

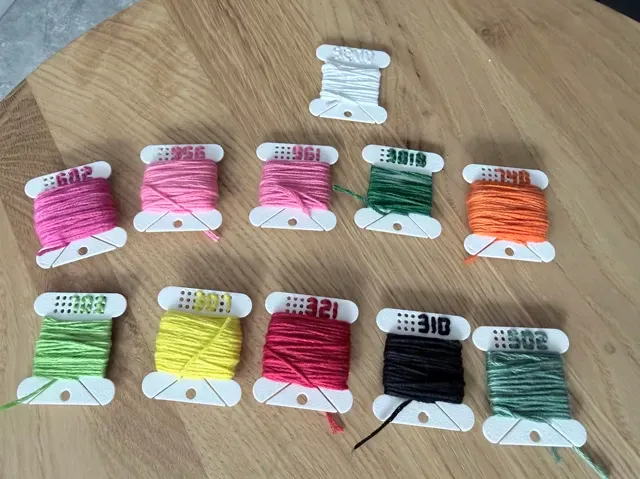

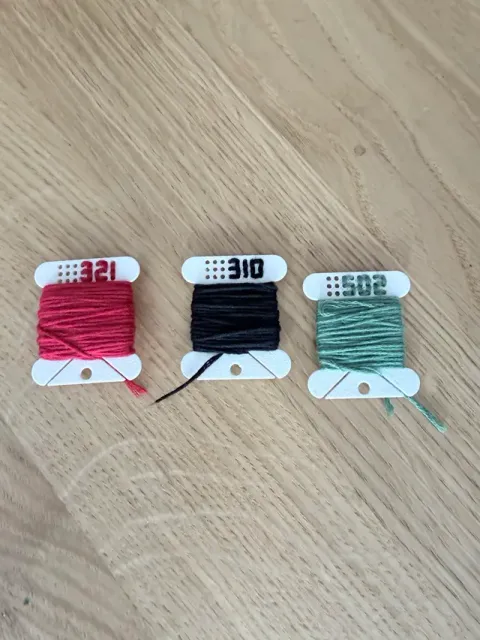

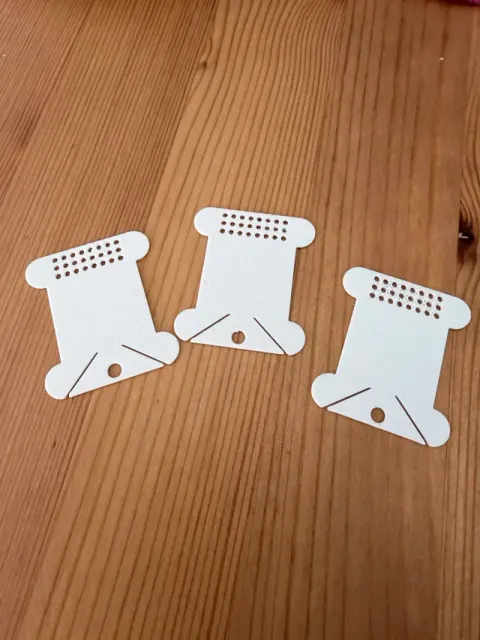

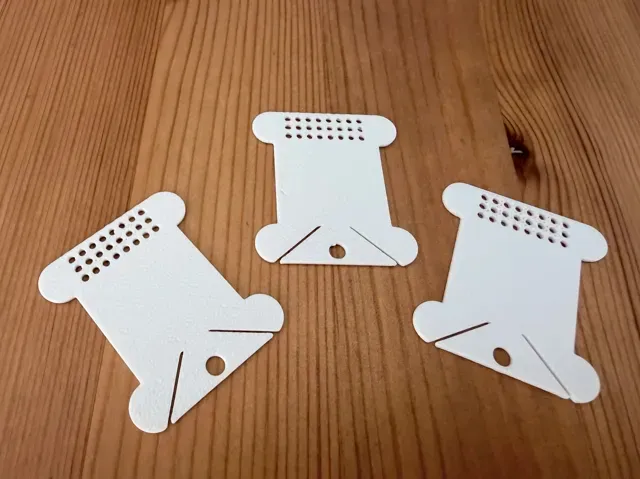

These bobbins feature an integrated micro-grid matrix at the top that allows you to cross-stitch your DMC color codes directly using the floss itself. Never lose track of your thread numbers again!

Key Features:

- Stitchable Label Matrix: 3-row dot grid allows you to easily cross-stitch 3-digit, 4-digit, or 5-digit color codes. - Smart Thread Securing: Includes angled locking slits at the base to hold your thread tails securely in place without damaging the floss. - Ring / Binder Hole: Centered bottom hole makes organizing on a metal ring or sorting board effortless. - Durable & Reusable: Designed specifically for PETG to ensure flexible, snap-resistant thread notches. Print Settings & Recommendations:

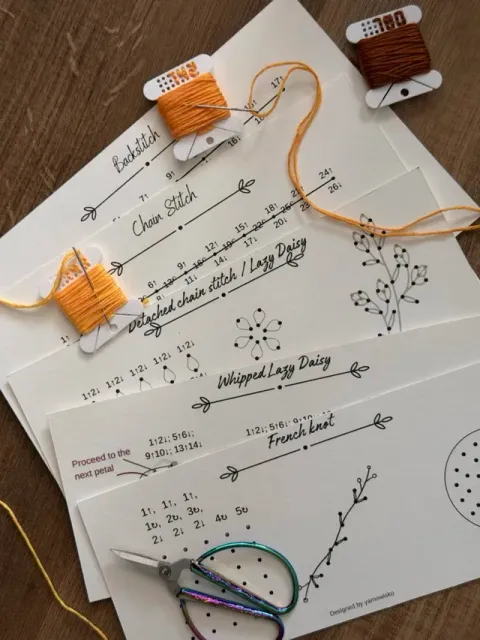

- Material: PETG (recommended for notch flexibility and durability; PLA also works) - Nozzle Size: 0.4 mm - Layer Height: 0.20 mm (Standard) or 0.16 mm (for sharper holes) - Walls / Perimeters: 3 - Infill: 100% (Solid) - Supports: None (prints completely flat in minutes) Stitching Tip: Use a standard embroidery needle with a single or double strand of the spool’s matching floss to cross-stitch the digits (following a standard 3x5 or 4x5 digital/pixel font style).

If you find this model helpful, please leave a like, review, and boost!

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill rint Settings & Recommendations:

- Material: PETG (recommended for notch flexibility and durability; PLA also works) - Nozzle Size: 0.4 mm - Layer Height: 0.20 mm (Standard) or 0.16 mm (for sharper holes) - Walls / Perimeters: 3 - Infill: 100% (Solid) - Supports: None (prints completely flat in minutes)

0.2mm layer, 2 walls, 15% infill Recommended Print Settings:

- Filament: PLA / PLA Basic / PLA+ - Nozzle: 0.4 mm - Layer Height: 0.20 mm (or 0.16 mm Optimal for extra smooth surfaces) - First Layer Height: 0.20 mm - Wall Loops (Perimeters): 3 - Top / Bottom Shell Layers: 4 - Infill Density: 100% (Solid) - Infill Pattern: Rectilinear / Monotonic - Supports: None (Not needed) - Brim: No (Not required on a clean textured PEI / smooth sheet) - Wall Ordering: Inner / Outer (helps maintain precise hole tolerances) - Retraction / Cooling: Standard Bambu PLA defaults (ensure filament is dry for zero stringing inside the micro-grid)
