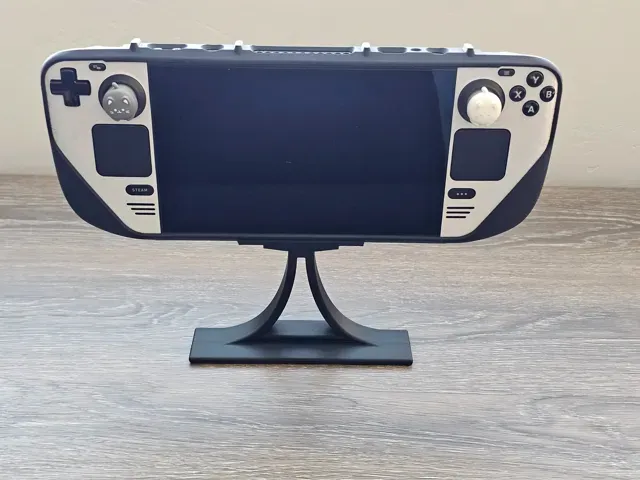

Steam Deck Belly Stand for Dbrand Killswitch Case

Unofficial noncommercial remix of the Belly Stand for Steam Deck, modified to fit a Steam Deck wearing the Dbrand Project Killswitch case.

Source models:

“Belly Stand For Steam Deck” by TachyTCG https://makerworld.com/en/models/958737-belly-stand-for-steam-deck Licensed under CC BY 4.0: https://creativecommons.org/licenses/by/4.0/

“Project Killswitch - Steam Deck Dock Adapter” by dbrand https://www.printables.com/model/411302-project-killswitch-steam-deck-dock-adapter Licensed under CC BY-NC 4.0: https://creativecommons.org/licenses/by-nc/4.0/

Changes made:

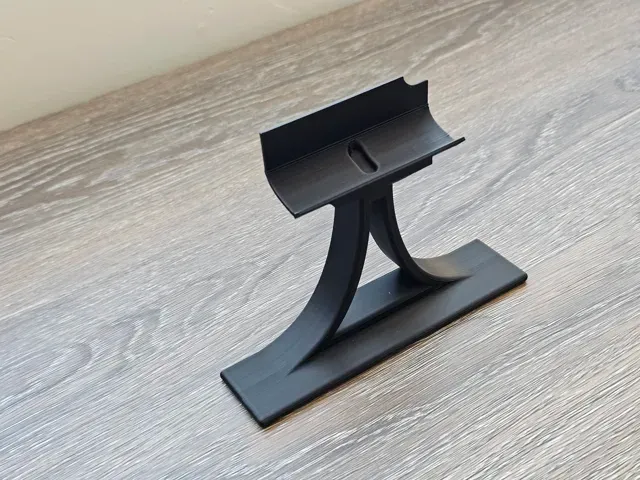

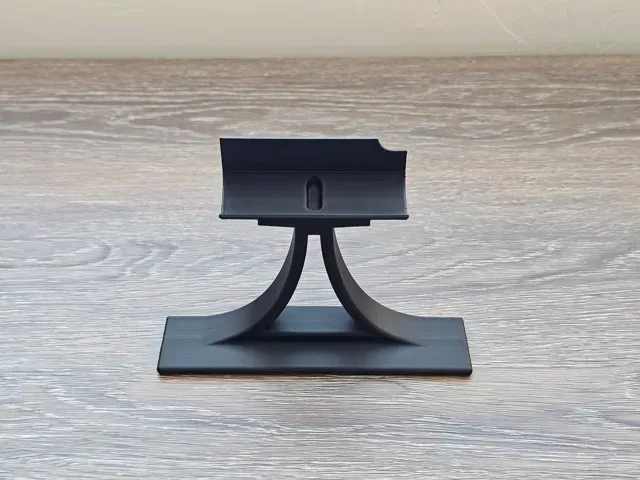

- Retained the Belly Stand base and swept supports. - Replaced the original bare-Steam-Deck cradle with an 80 mm-wide Killswitch receiver derived from Dbrand’s dock-adapter geometry. - Preserved the original blind socket for the Killswitch alignment nub. - Added a 15 mm rear case support. - Added a tapered 19 mm-to-48 mm structural connection. - Removed the original cradle lips, dock-only rails, and unnecessary support geometry. - Set the device angle to 0 degrees. - Oriented the model for printing on its flat back. - Final STL dimensions in print orientation: 150 × 112.68 × 35 mm.

This remix is distributed under CC BY-NC 4.0 and is not for commercial use. Dbrand and TachyTCG do not endorse this remix.
