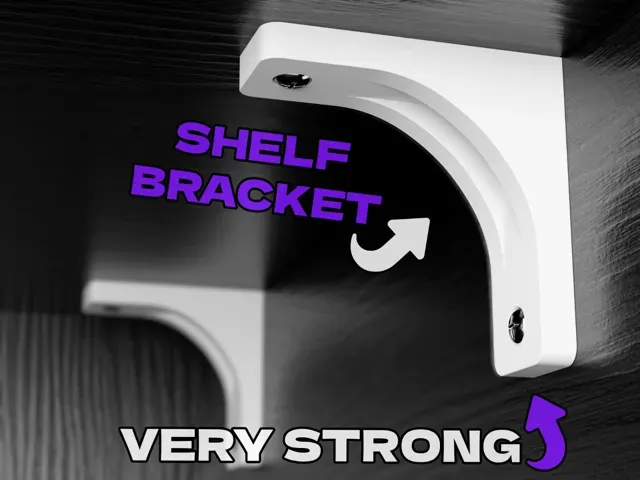

Shelf Bracket Very STRONG

Boost Me Please click ❤LIKE❤ if you appreciate my work 😊

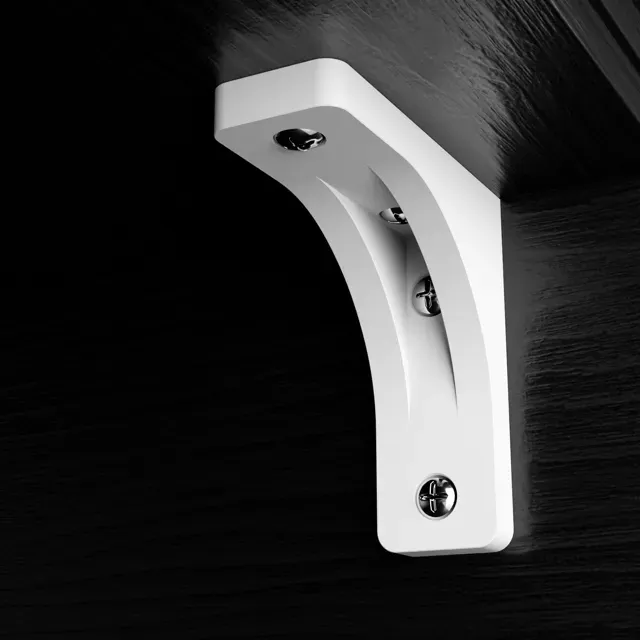

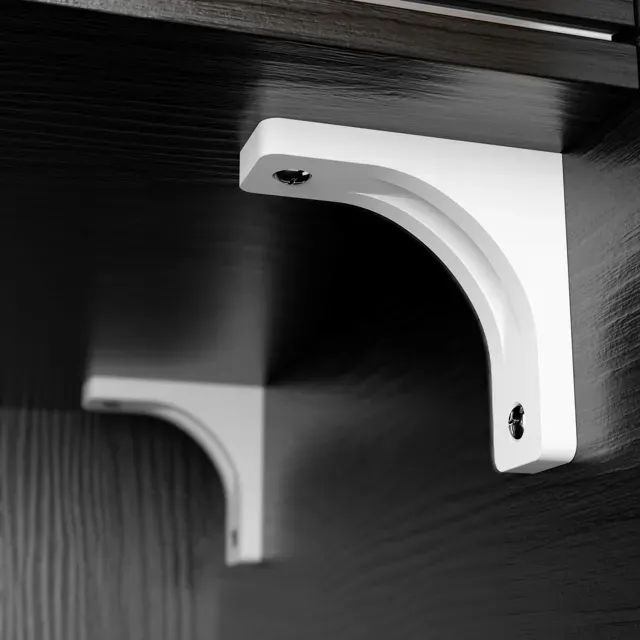

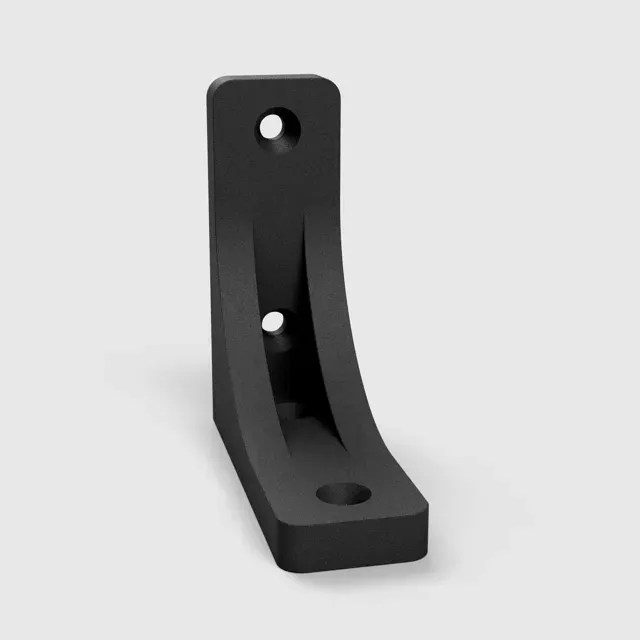

A functional 90° shelf bracket featuring a distinctive curved structural rib. The model was designed from scratch specifically for 3D printing and practical DIY applications.

The curved geometry gives the bracket a modern appearance and creates a smooth transition between the two mounting surfaces.

📐 Specifications

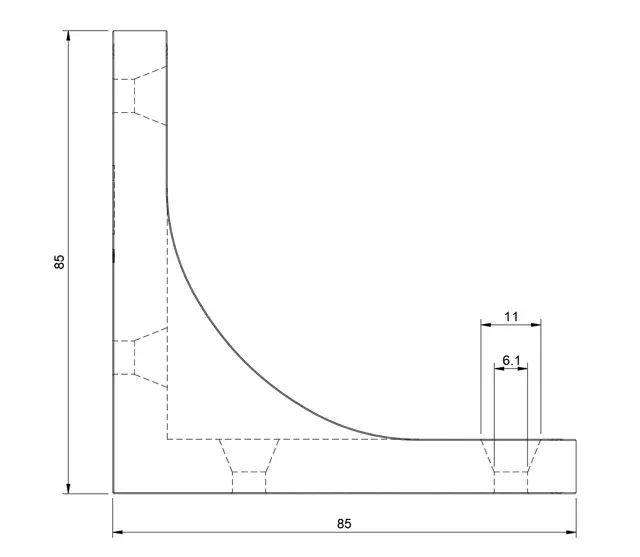

- Angle: 90° - Mounting holes: Ø6 mm - Screw head recess: Ø11 mm - Design: 100% original - Applications: Shelves, furniture, cabinets, shelving units, structures and DIY projects 🎨 Original Design

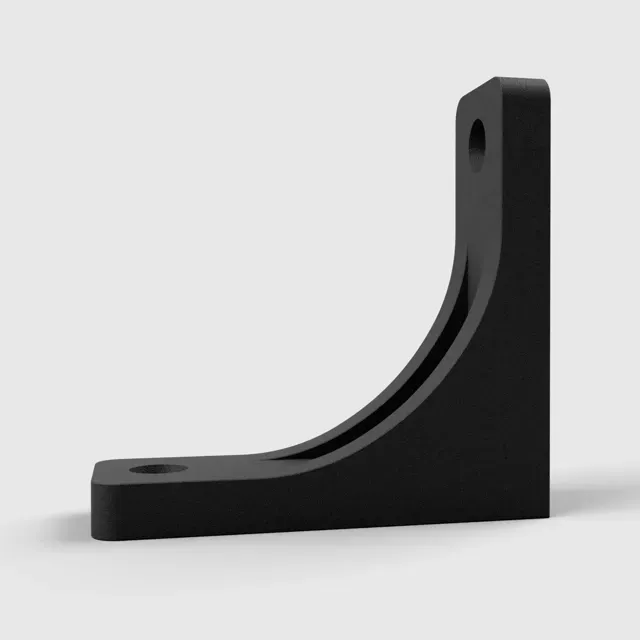

The most distinctive feature of this model is its curved structural rib , giving the shelf bracket a unique appearance compared to conventional straight-profile shelf supports.

The design focuses on combining aesthetics, functionality and 3D printability .

🖨️ 3D Printing

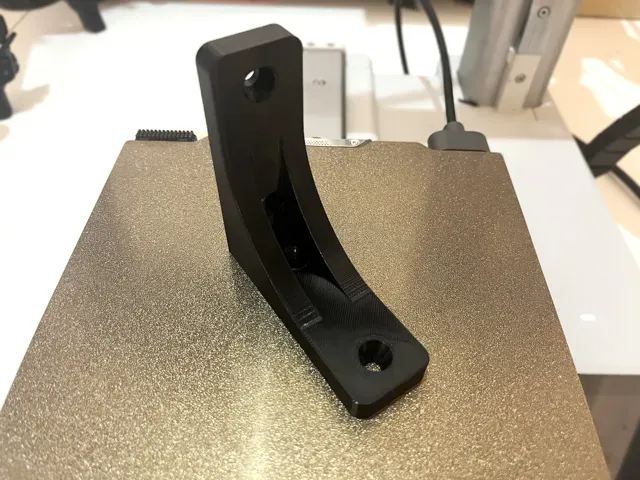

The model was designed specifically for FDM 3D printing .

Recommended starting settings:

- Layer height: 0.28 mm - Nozzle: 0.4 mm - Walls: 6+ - Floor: 4 - Roof: 6 - Infill: 10-15% 3D honeycombs - Material: PETG-CF or ASA Printing parameters can be adjusted depending on the intended application.

🔩 Mounting

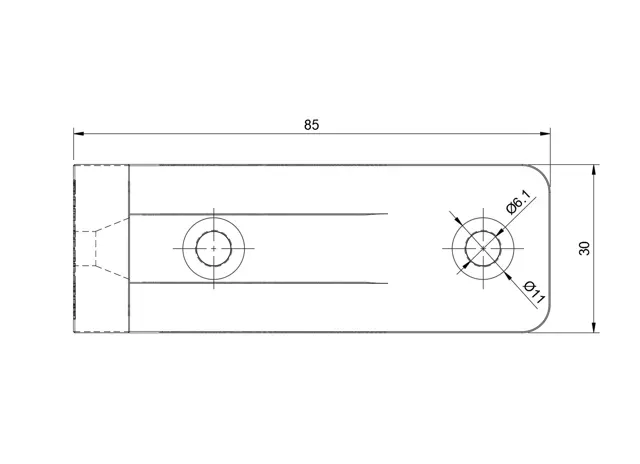

The bracket features Ø6 mm mounting holes with Ø11 mm recesses for the screw heads .

This allows the screw heads to sit partially inside the bracket, providing a cleaner and more finished appearance after installation.

✨ Original Project

An original, independently designed shelf bracket created from scratch with practical use and 3D printing in mind.

Functional geometry + distinctive design — a different take on the traditional shelf support.

If you print it, don't forget to share your Make !

Like, Make or Boost is greatly appreciated. ❤️
