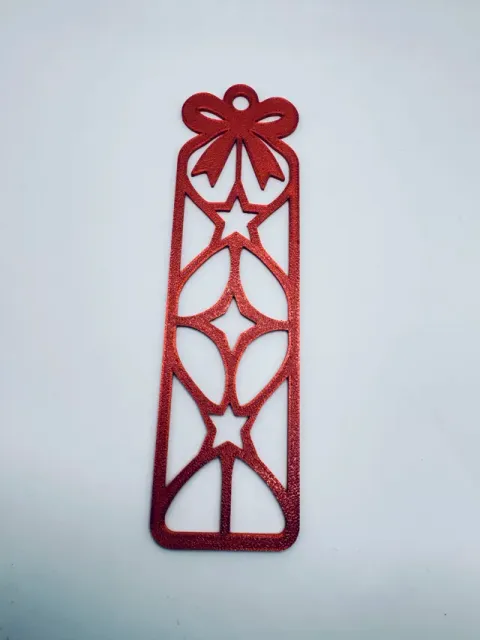

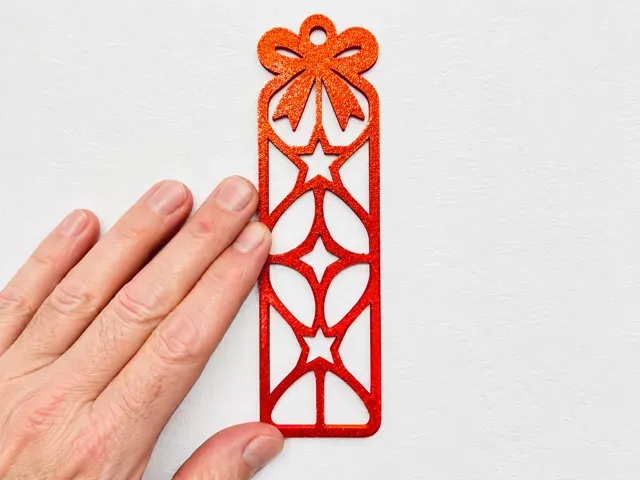

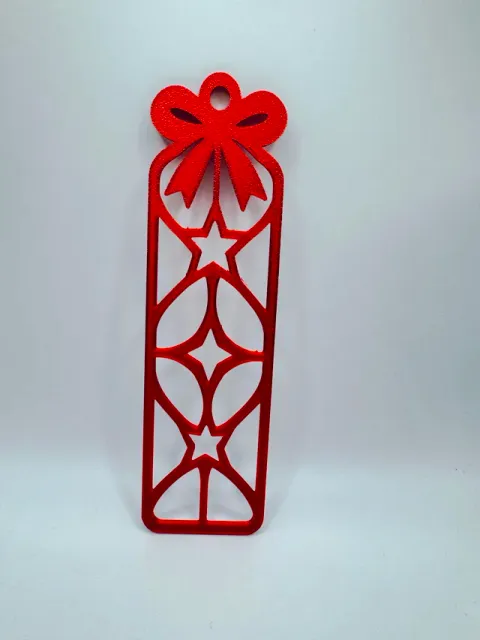

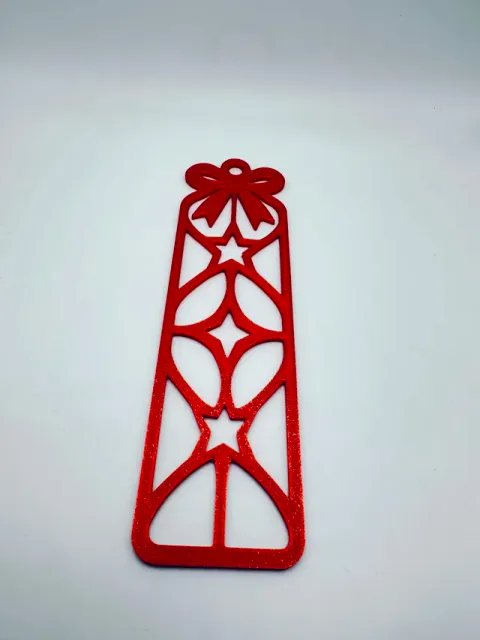

Christmas Bow and Stars Openwork Bookmark

0.2mm layer, 2 walls, 15% infill PRINT PROFILE DESCRIPTION

Optimised for a standard 0.4 mm nozzle using a 0.20 mm layer height, 2 walls and 15% infill.

The bookmark is designed to print flat on the build plate without supports.

Arachne wall generation helps maintain the clean curves, decorative bow and detailed star openings.

Smart scarf seam is enabled to help improve the appearance of the finished edges.

Just use my supplied settings and you’ll get the print exactly as shown.

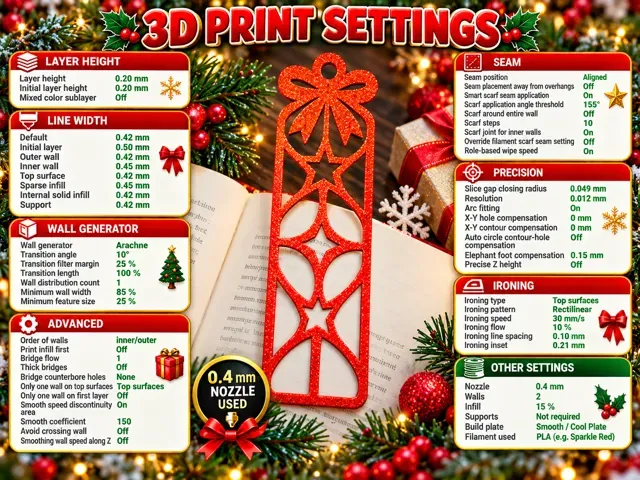

PRINT DETAILS / NOTES

LAYER HEIGHT

Layer height: 0.20 mm Initial layer height: 0.20 mm Mixed colour sublayer: Off

LINE WIDTH

Default: 0.42 mm Initial layer: 0.50 mm Outer wall: 0.42 mm Inner wall: 0.45 mm Top surface: 0.42 mm Sparse infill: 0.45 mm Internal solid infill: 0.42 mm Support: 0.42 mm

SEAM SETTINGS

Seam position: Aligned Seam placement away from overhangs: Off Smart scarf seam application: On Scarf application angle threshold: 155° Scarf around entire wall: Off Scarf steps: 10 Scarf joint for inner walls: On Override filament scarf seam setting: Off Role-based wipe speed: On

PRECISION

Slice gap closing radius: 0.049 mm Resolution: 0.012 mm Arc fitting: On X-Y hole compensation: 0 mm X-Y contour compensation: 0 mm Auto circle contour-hole compensation: Off Elephant foot compensation: 0.15 mm Precise Z height: Off

IRONING

Ironing type: Top surfaces Ironing pattern: Rectilinear Ironing speed: 30 mm/s Ironing flow: 10% Ironing line spacing: 0.10 mm Ironing inset: 0.21 mm

WALL GENERATOR

Wall generator: Arachne Wall transitioning threshold angle: 10° Wall transitioning filter margin: 25% Wall transition length: 100% Wall distribution count: 1 Minimum wall width: 85% Minimum feature size: 25%

ADVANCED SETTINGS

Order of walls: Inner/Outer Print infill first: Off Bridge flow: 1 Thick bridges: Off Bridge counterbore holes: None Only one wall on top surfaces: Top surfaces Only one wall on first layer: Off Smooth speed discontinuity area: On Smooth coefficient: 150 Avoid crossing wall: Off Smoothing wall speed along Z: Off

ADDITIONAL PRINT INFORMATION

Nozzle: 0.4 mm Walls: 2 Infill: 15% Supports: Not required Recommended material: PLA Build plate: Smooth or Cool Plate SuperTack

PRINTING ADVICE

Print the bookmark flat on the build plate.

Make sure the build plate is clean before printing, particularly around the delicate decorative sections.

Allow the print to cool before removing it.

Carefully lift the bookmark from the plate to avoid bending the thinner decorative sections.

PLA works particularly well for this design.

Sparkle or metallic-effect PLA can give the finished bookmark an attractive Christmas appearance.
