Description

This is a re-upload by the original creator. Any previous uploads of this design were done without permission. Sorry for any inconvenience!

Check out my Youtube video for detailed assembly instructions:

This coin-sorter is connected to a storage box with individual trays for each type of coin, all secured behind a vault door. Aside from 3d printed parts, you will need:

- 5 bearings - 22mm outer diameter, 8mm inner diameter, 7mm high - 2 metal dowels 30mm long, 5mm diameter - Note: Dowels can also be 3D printed, if you prefer (Thanks Reee) NOTE: This is for American currency only, but there have been many great adaptations to other currencies uploaded to Printables. Here are a few links:

Euro Coin Sorting Vault: https://www.printables.com/model/671175-euro-coin-sorting-vault

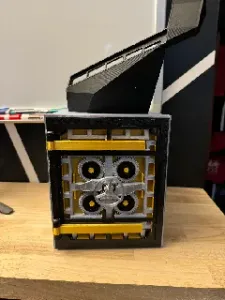

Canadian Currency Coin Sorting Vault: https://www.printables.com/model/688113-cad-coin-sorting-vault

Guides and print profiles

Print profiles and steps

Complete Parts 0.2mm layer, 2 walls, 20% Gyroid infill The outer door frame plate doesn't need support with Bambu's PETG Basic (TESTED on X1C)

Tags

vaultcoin sortercoinbankpiggybankvaultdoor
