Filament spool wall mount (single or dual rod)

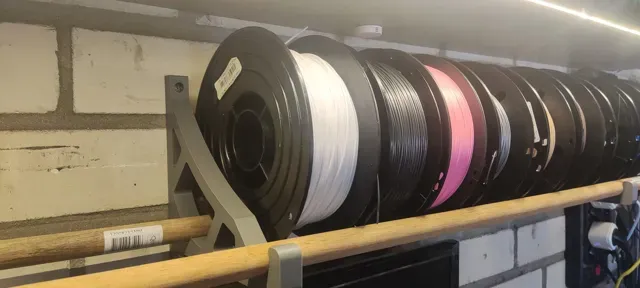

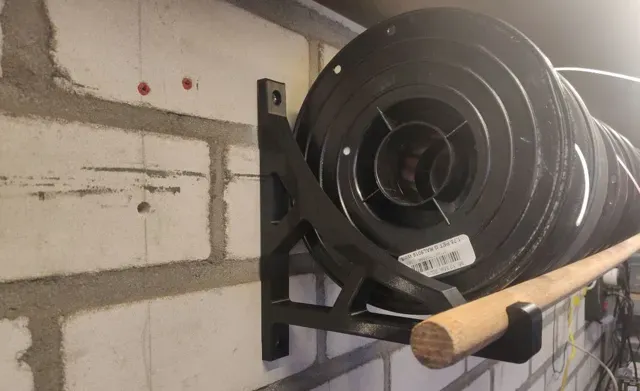

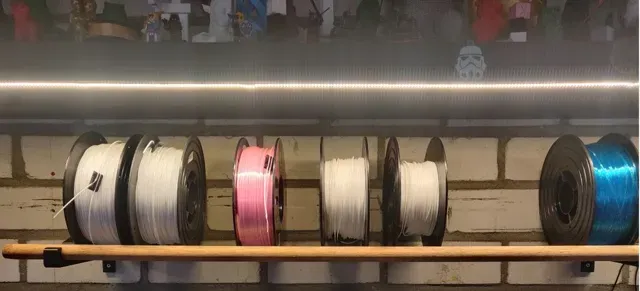

I designed this wall mount to have a few of my spools ready to use (Other spools are box stored)

The rod is just a wooden broomstick with a diameter of 23.5mm (place where the rod is resting is designed as 24mm to compensate for some deviations in the rods)

(For the Dutchies: Bought it for just a few Euros @ the "Action")

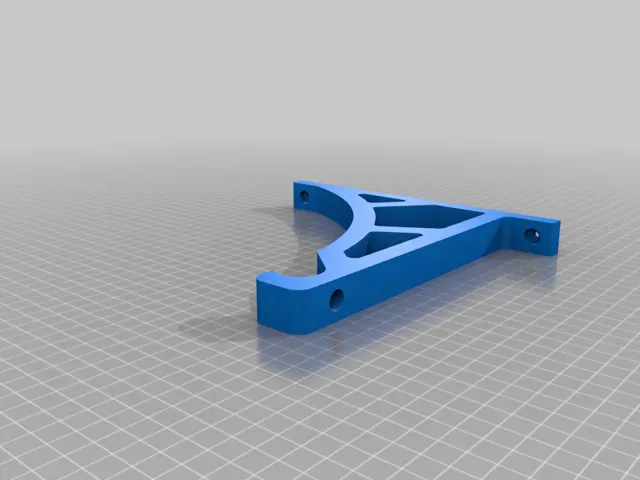

-2x wall mounting holes -1x screw hole to secure the rod.

Printed with 3 perimeters (walls) and 15% infill.

Update September 2023:

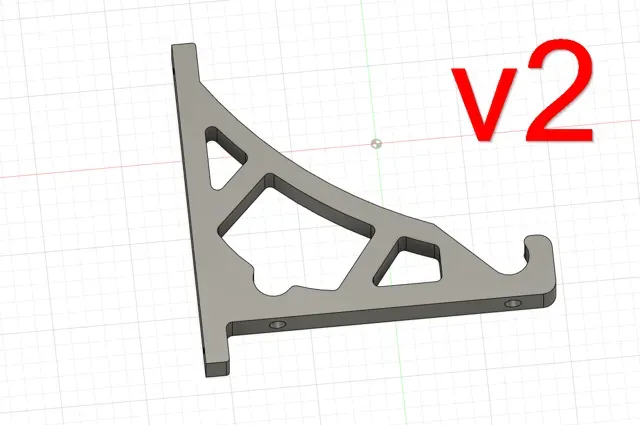

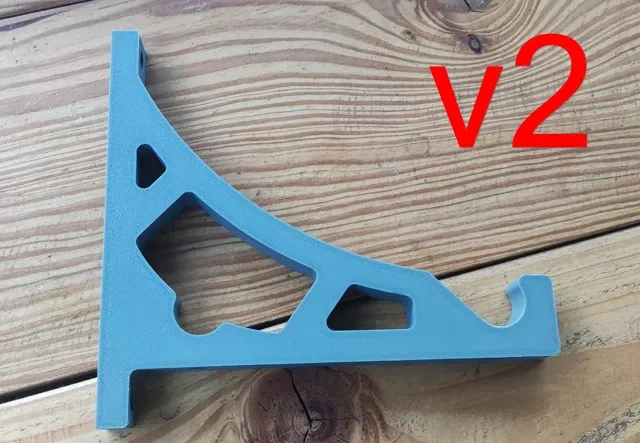

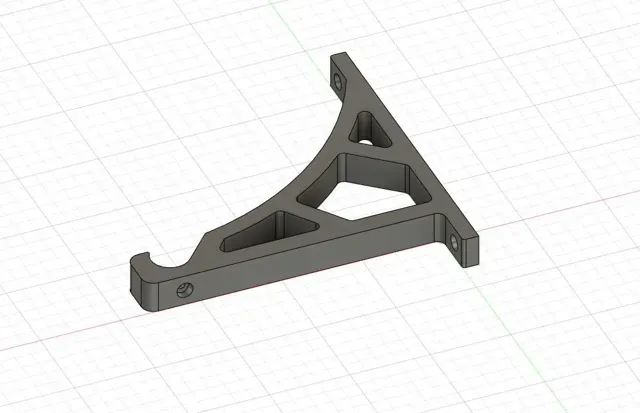

I redesigned the bracket from scratch with the original design in mind.

- Added clearance from the wall so spools won't damage it. (designed arround a 20cm spool) - Added a second "rod slot" for this - Uploaded designs for several rod diameters (23 mm, 25mm, 32mm) All with an added 1mm extra for inconsistant rod diameter or print accuracy.

Allready printed the v1? No worries, I redesigned with the same mounting hole distance in mind (180mm) so a replacement should work without any hassle!

Please feel free to ask for additional rod diameters if needed.

Note: I only tested the 23mm rod size since I personally own that one.

Posting a make and liking the model is much appreciated!
