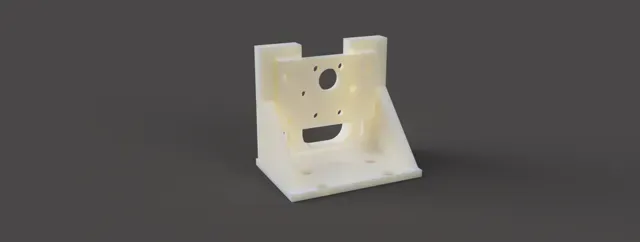

12V DC Motor Holder Adjustable - Small Version

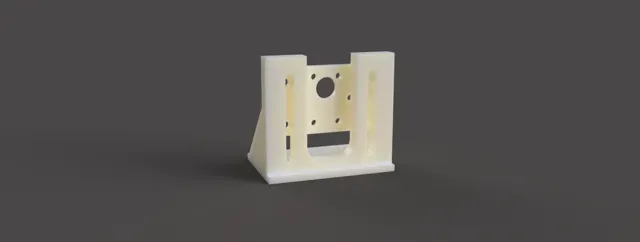

12V DC Motor Holder Adjustable - Small Version — Image 2 of 2
3D model · MakerWorld

12V DC Motor Holder Adjustable - Small Version

Model details

Platform
MakerWorld
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
F3D
  • 12 Likes
  • 62 Downloads
  • 27 Makes
  • 32 Collected
  • 0 Boosts
  • 3 Comments
  • 0 Views

Author:jerikunderic

Published

Download on MakerWorld

Description

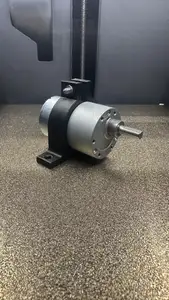

Hi, I designed an adjustable motor holder for 12V DC motors just as this one: https://www.amazon.de/Greartisan-Getriebemotor-Mikrodrehzahl-Exzentrische-Ausgangswelle/dp/B071XCX1LH/ref=sr_1_15?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=1LYXRIGYATT2W&keywords=getriebemotor%2B12v%2B50rpm&qid=1697469322&sprefix=getriebemotor%2B12v%2B50%2Brpm%2Caps%2C93&sr=8-15&th=1

Things you will need for assembly:

4x M3 Screw and nuts to hold the motor to the holder plate

4x M4 Screw and nuts to hold the plate to the holder to be able to adjust the height

4x M4 Washer for mounting the plate to the holder

4 Screws to mount it at whatever you want :)

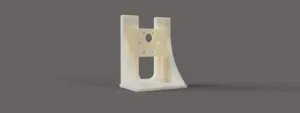

If you need a bigger version take a look at my profile :)

Print profile coming soon.

Guides and print profiles

Print profiles and steps

Stable Version, 100% infill - print without support - stable version

Cheaper Version, 25% infill - print without support - stable version avaliable
