Author:MagiikDesign

Published

Description

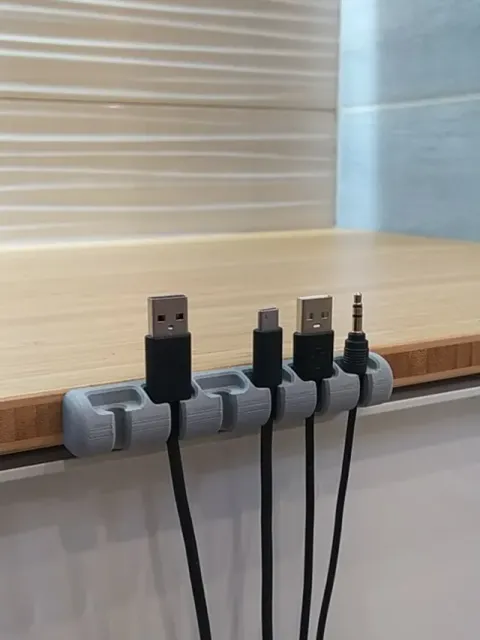

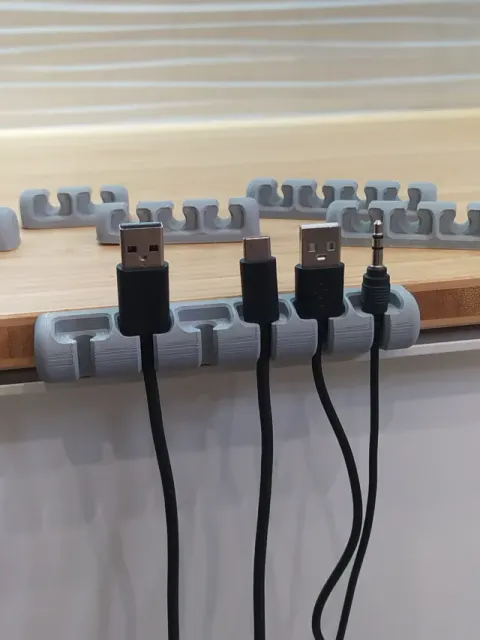

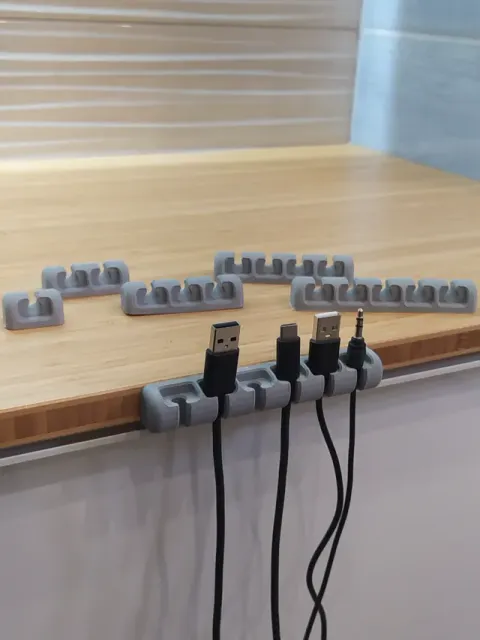

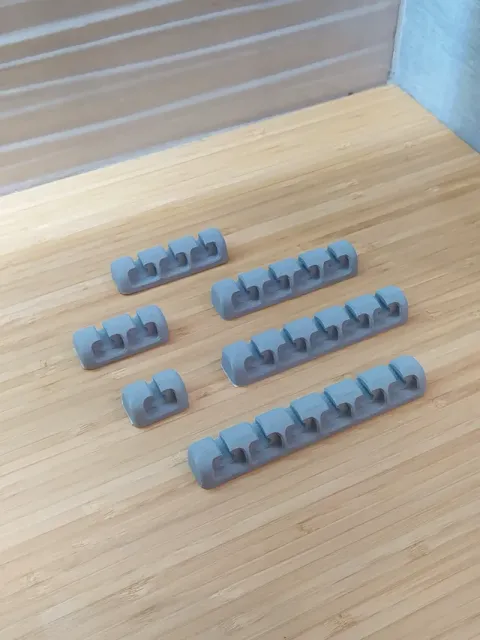

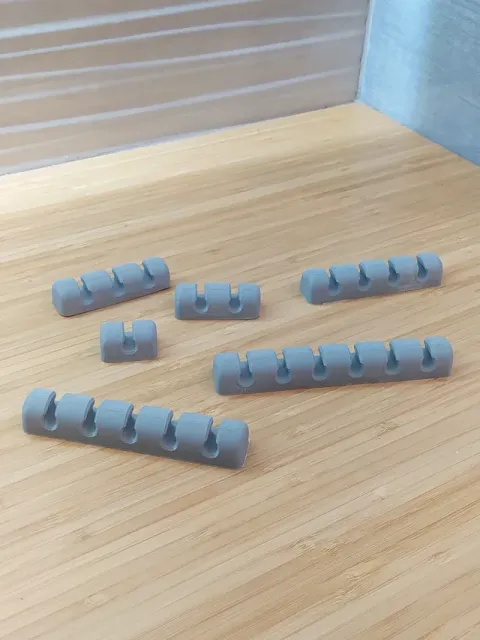

I re-design and add few models for 1,2,3,4,5 or even 6 cables

I print this one with 0.4mm nozzle and 0.1mm layer height

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 7% infilly + adaptive layer height

Print just the holder you need Print just the holder that holds the amount of cables you need!

0.20mm +adaptive 0.8 layers, 2 walls, 7% infill 0.20 and adaptive 0.08 layer height the last layers. 7% Gyroid infill.

0.2mm, 2 walls, 7% infill, 3mm Screw Holes, 7mm counterbore Same profile, added 3mm holes with a 7mm counterbore to adapt to small screws that I have.

0.2mm layer, 2 walls, 7% infill

0.2mm layer, 2 walls, 7% Gyroid infill 0.20 mm layer 7% Gyroid infill NO supports needed

0.2mm layer, adaptive, 2 walls, 7% infill, added screw hole I uploaded this profile as i think it is not worthy of been a Remix.

It is still printed with 0.20 layer height and adaptive 0.08 layer height the last layers and with 7% Gyroid infill, but i modified the model to have screw hole and decided to share it if someone else needed it.

I used normal wood screws and the maximum diameter of the head should be 6.7 mm.

0.16mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 7% infill I have added a bracket so that it sits on top of a raised 16mm edge of a desk / bench

0.15 mm 50%, 5.5 h, 200 mm/s (Ultimaker Cura) + support 0.15 mm 50%, 5.5 h, 200 mm/s (Ultimaker Cura Elegoo Neptune 4Plus) + support
