HSW Caliper Holder Super-Strong Posts

I love the Honeycomb Storage Wall by @RostaP enough to now have a 30-panel wall in my workroom - covering 108cm x 111cm (nearly 4 feet x 4 feet)! All of the outer panels have a solid frame thanks to the fabulous Honeycomb storage wall with borders remix by @Waldmops_249902 !

Naturally, some of my favorite tools couldn't be suitably held by any of the HSW remixes that I found on Printables, so I got to work in ViaCad Pro...

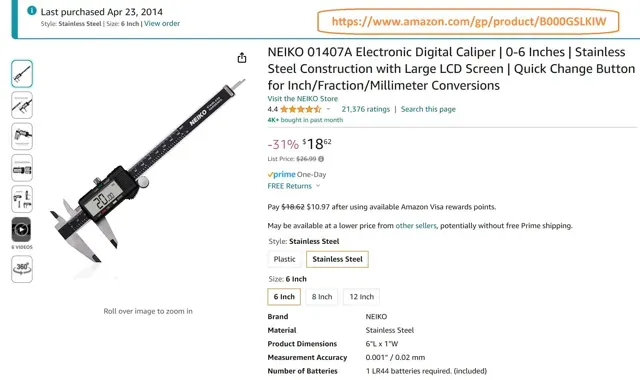

My calipers are " NEIKO 01407A Electronic Digital Caliper | 0-6 Inches" that I purchased (in 2014) on Amazon at https://www.amazon.com/gp/product/B000GSLKIW

This HSW Caliper Holder may fit many other brands of digital caliper; please comment to let me know how they work for you if you have a different caliper.

The “ Digital Calipers Kinex 150mm ” sold on the Prusa Store at https://www.prusa3d.com/en/product/digital-calipers-kinex-150mm/ also appear to be a virtual clone of my Neiko calipers, so they “should” fit nicely in this holder.

The existing HSW Caliper Holders that I tried all ended up with a broken post before I even got them in the wall, and they also didn't match the 15mm vertical distance between the bottom of the left and right jaws in my model.

This HSW Caliper Holder features super-strong posts and has an M3 hole for attachment to the honeycomb storage wall with the @RostaP insert-with-M3.stl insert.

The provided STL file can be printed in PLA or PETG and does not require supports.

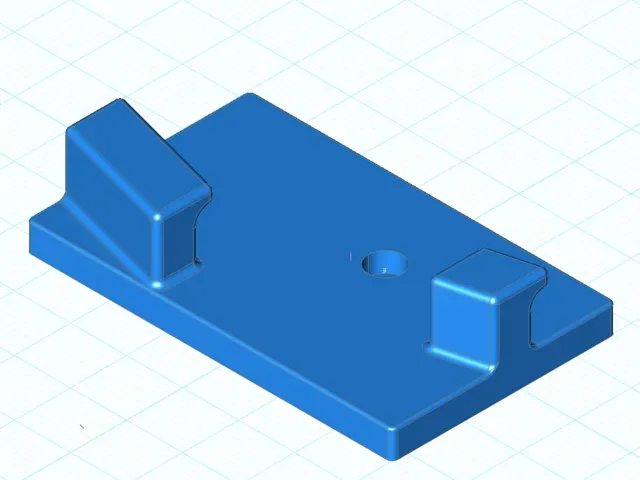

A STEP file has been included in case you need to make any adjustments for your calipers.

A 3MF file is provided for generic PLA.

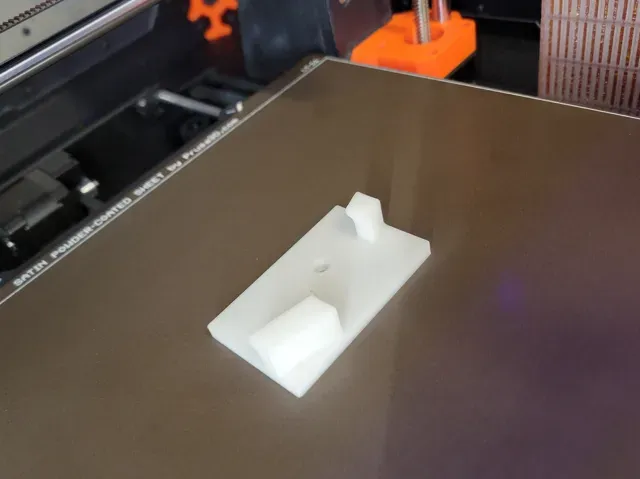

The HSW Caliper Holder seen in the photos was printed with Sunlu White/Blue Glow-in-the-dark PLA with a 0.4mm nozzle at 0.2mm layer height with a 15% gyroid infill.

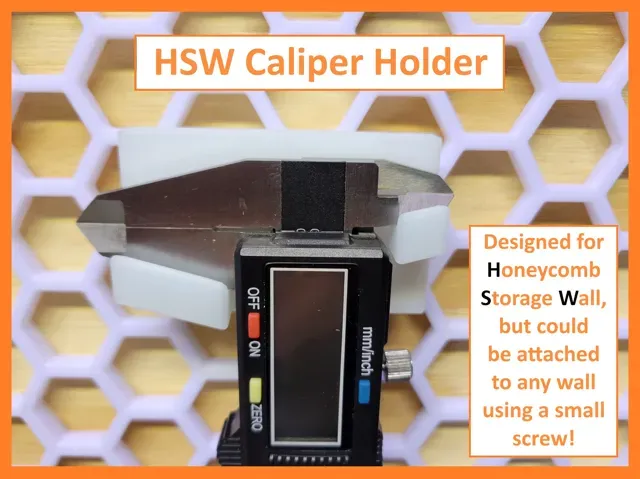

Note that this HSW Caliper Holder is designed for the honeycomb storage wall, but it could be attached to any wall using a small screw!

Be sure to check out my other designs - including honeycomb storage wall (HSW) accessories, universal key covers, and a diverse collection of household accessories and 3D printing tools - on MakerWorld at  https://makerworld.com/en/@PhilCaruso

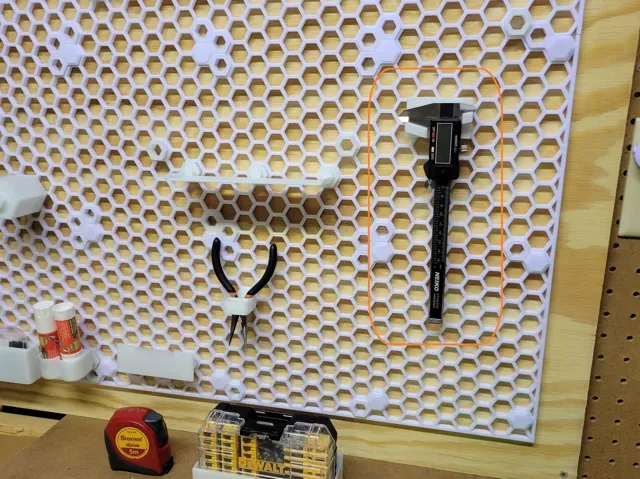

Here are a couple photos of my 99% complete Honeycomb Storage Wall as well as my HSW glowing in the dark. It includes 9 of my own designs and about 2 dozen models from other designers - including, of course, @RostaP …
