Ikea Alex Modular Drawer Bins (Thin Walls)

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 43 Likes
  • 158 Downloads
  • 54 Makes
  • 137 Collected
  • 6 Boosts
  • 8 Comments
  • 0 Views

Author:FaumeBuilds

Published

Download on MakerWorld

Description

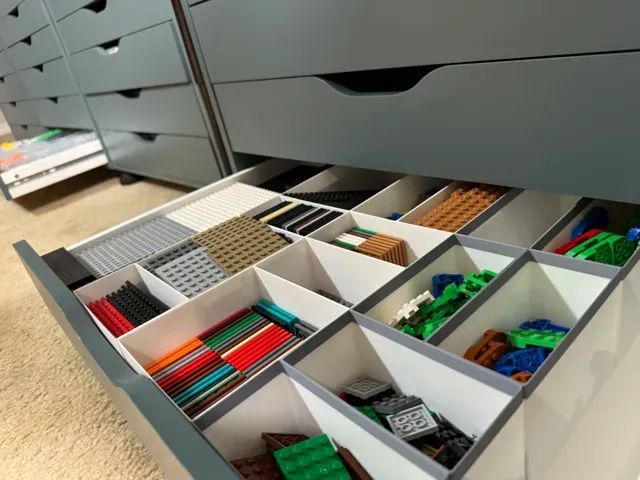

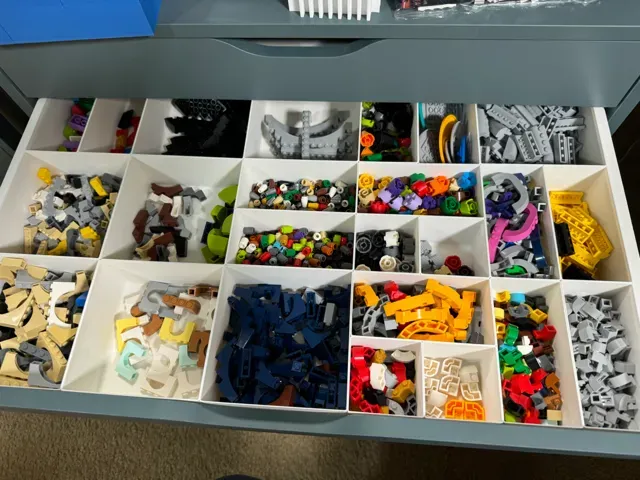

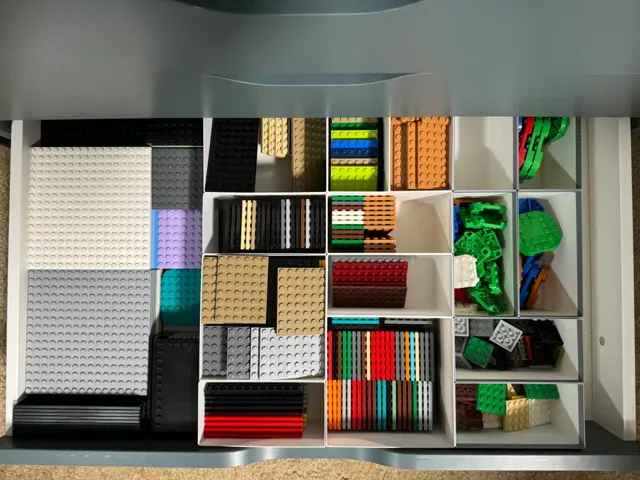

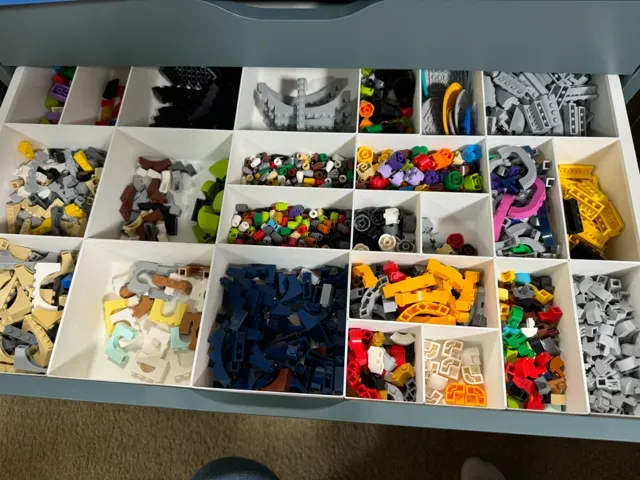

This system of sorting bins is designed around the wide Ikea Alex drawer unit with internal measurements of 60cm x 42cm with a depth of 6cm for the top drawers and 8cm for the bottom drawers. The module size is 6cm x 6cm x 2cm. This gives the drawer a layout of 10 modules x 7 modules. Short drawers have a depth of 3 modules, and tall drawers have a depth of 4 modules.

I recommend using longer bins in the back for visibility since the drawers don't fully open.

4x4x? bins won't fit on P1S build plate, but model included in other files.

Guides and print profiles

Print profiles and steps

0.28mm layer, 3 walls, 15% infill

Tags

ikea alexikeaalexdrawer organizerboxbinsortorganizersort by colorsort by typebricksmodular
