Description

Update logs  更新日志 2024 /5/13

In order to help friends who don't watch assembly videos complete the assembly smoothly, I have updated Model 2.0 and increased support for wood width and more usage scenarios.

为了让不看组装视频的朋友能顺利完成组装，我更新了模型2.0，同时加大了对板材宽度及更多使用场景的支持。

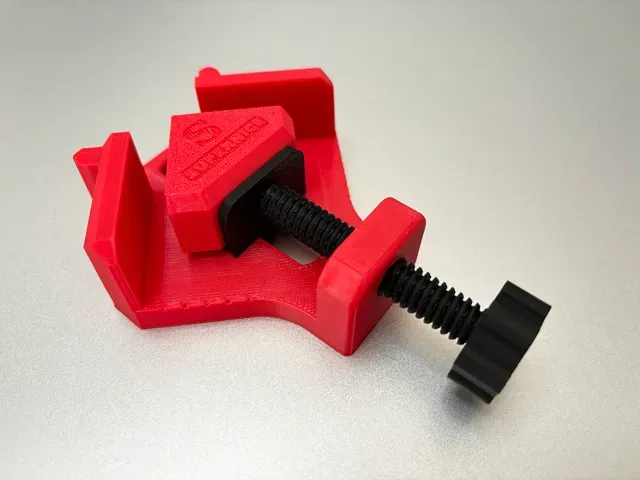

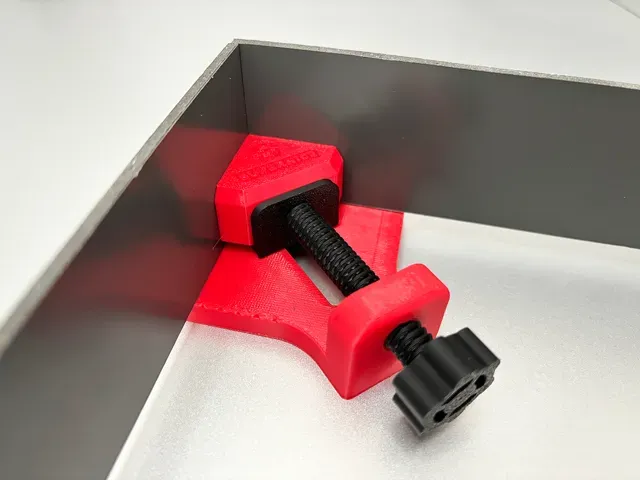

Right Angle Clamp, Single Handle 90°Corner Clamp, Right Angle Clip Clamp Tool Woodworking Photo Frame Vise Holder.

Adjustable width to fit different thicknesses of boards！

If you like it, please download and use it with support ， Welcome to follow my account.

Thanks！

直角夹，单柄90°角夹，直角夹夹具工具木工相框虎钳座。

可调整宽度，贴合不同厚度板材

如果你喜欢它，请下载使用并支持，欢迎关注我的账号。

谢谢你！

Adjustable width to fit different thicknesses of boards！

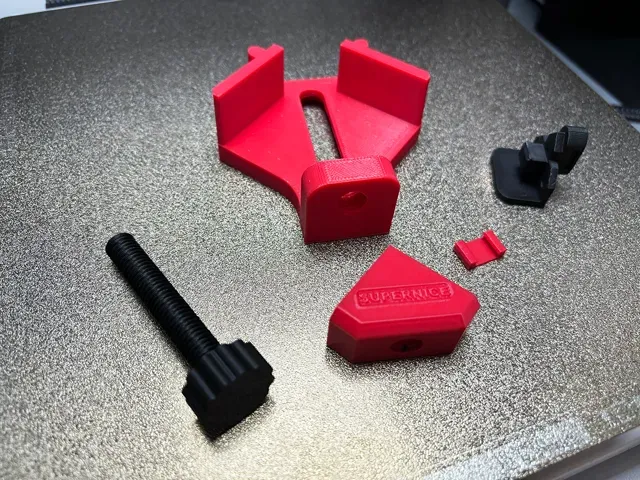

Assembly video 组装视频

YouTube

bilibili

Guides and print profiles

Print profiles and steps

新版(New v2.0) 0.2mm layer, 4 walls, 25% infill New 2.0version, model optimization；Easier to assemble; More convenient to use, supporting the use of fixed wooden boards in different scenarios

PLA Only, 0.2mm layer, 4 walls, 25% cubic infill clean and easy print with brim added for better adhesion,

0.2mm layer, 4 walls, 25% cubic infill

2 Color, V2, 1 Plate, 0.2mm layer, 4 walls, 25% infill

SOLID SCREW + SUPPORTS 0.2mm layer, 2 walls, 15% infill Improved screw toughness and strenght by having 100% infil on the “screw” part. The rest of the model has 15% Gyroid infill. Optimized SUPPORTS included for efortless removal (Tested wtih PETG and PLA+).

2H Print : 0.6mm nozzle, 0.3mm layer, 4 walls, 25% infill
