Nissan s14 Air Filter Bracket ePA-CF
Model details
- Platform
MakerWorld
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- 3MF
- 26 Likes
- 64 Downloads
- 15 Makes
- 40 Collected
- 1 Boosts
- 1 Comments
- 0 Views
Description

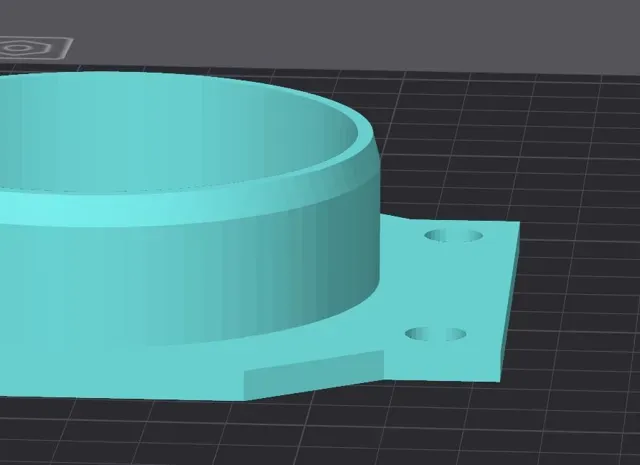

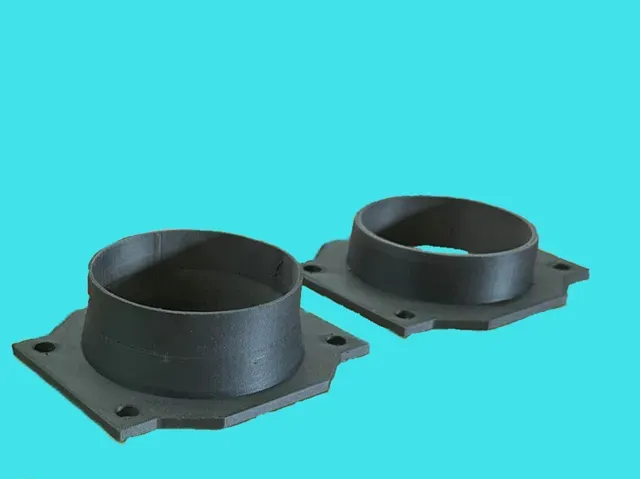

Nissan 200/240sx Air Filter Bracket
Made this bracket so it could fit a standard K&N filter on my 1997 Nissan 200sx (EU)
I used eSUN ePA-CF 1.75mm 1kg - natural for extra strength and capability to tolerate heat
outer diameter is 72,5mm and the wall thickness on the “Pipe” is 3mm ( a bit over 1/8 inch)
The flat surface is 95mm X 110mm (3.74In X 4.33In)

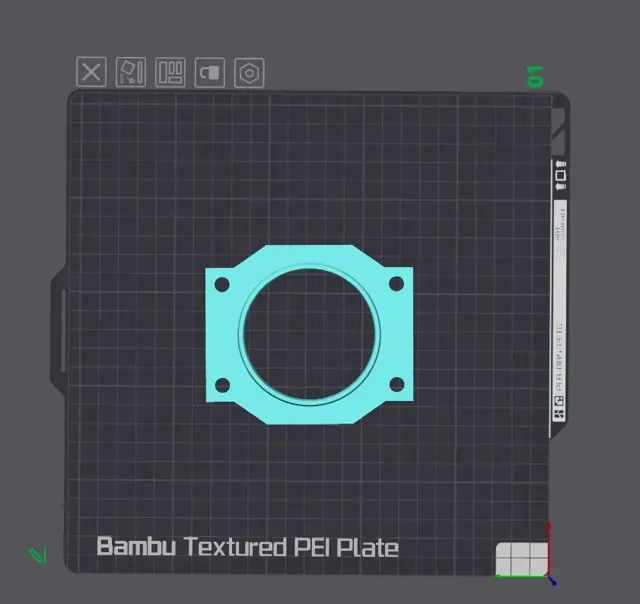

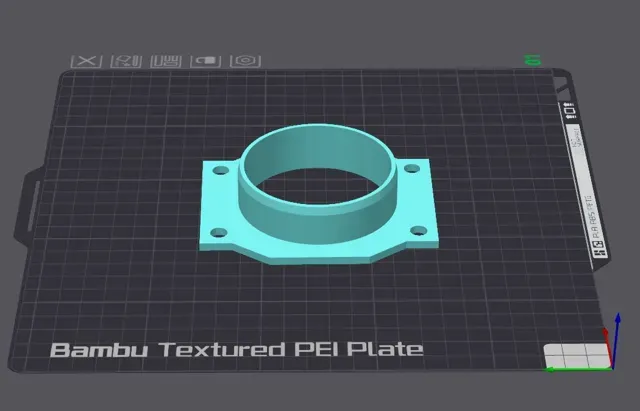

NOTE: Printed on Bambu Lab P1s on 50% speed!
Filter fits perfectly and does not fall of (you will need a clamp to tighten the filter to the bracket)
Disclaimer: I am not responsible if anything happens to something or someone!
Guides and print profiles
Print profiles and steps
0.2mm layer, 4 walls, 20% infill - 0,2mm Layer Height - 4 Wall Loops - 20% Infill - 280' Degrees On Nozzle - 100' Degrees on Bed
