All Cardboard Filament Spool Rim for Bambu Lab AMS

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 447 Likes
  • 3 456 Downloads
  • 3 210 Makes
  • 1 495 Collected
  • 68 Boosts
  • 399 Comments
  • 0 Views

Author:Phil the Printer

Published

Description

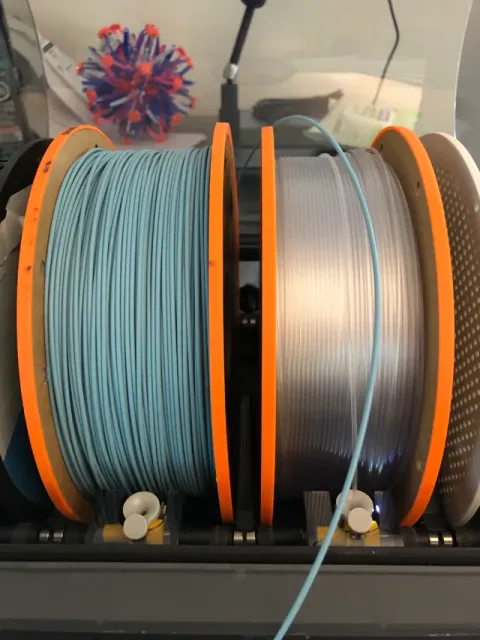

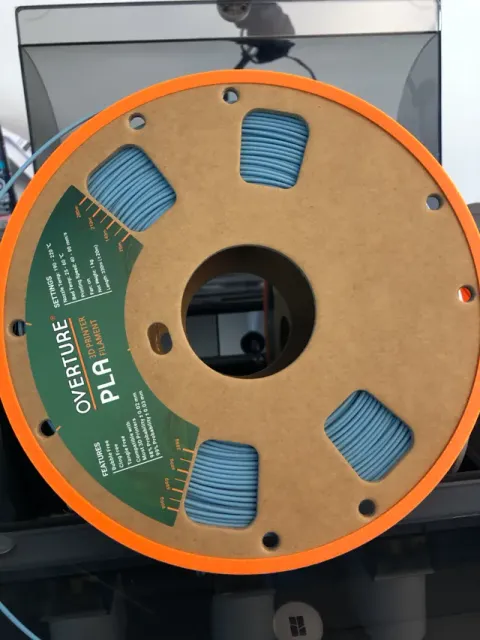

Since Bambu Labs AMS doesnt like cardboard filament and will cause it to break over time, This Rim cover will make it smooth and very simple to put on. Snap on, should be a tight fit , meant for 198mm spools but if the cardboard is slightly bigger just scale in the slicer by .5 for every 1mm larger, very simple and easy to use. Infill doesnt matter its very thin so it saves on filament and time. Only takes 9 minutes to print not including set up time.

I added different sizes so no need to scale in the print profiles! If you guys can help me fill this out that would be awesome

Spool Size Scale Percent Brands

196 99%

197 99.5% Elegoo (not sure which one)

198 100% Elegoo, Polymaker, Overture(TPU only), Inland, Hatchbox, PolyTera, Creality, Enderfast Pla, Polytera, Inland Petg, Comgrow

199 100.5% Overture, Yousu, Esun, Real spools,

200 101%

201 101.5%

Guides and print profiles

Print profiles and steps

100% 198mm diameter Spool size 0.2 mm layer with 0.4 nozzle

Infill doesnt matter, too thin

Overture Size 100.5% 199mm diameter Overture Size 100.5% 199mm diameter

101% 200mm diameter 101% 199mm diameter

99% 196mm diameter 99% 196mm diameter

99.5% 197mm diameter 99.5% 197mm diameter

101.5% 201mm diameter 101.5% 201mm diameter
