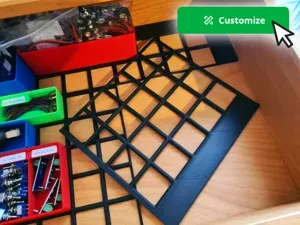

Gridfinity Parametric Base Plate

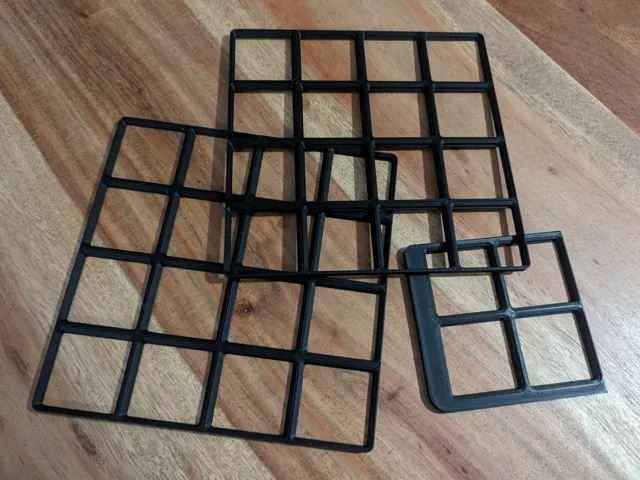

Gridfinity Parametric Base Plate — Image 2 of 3

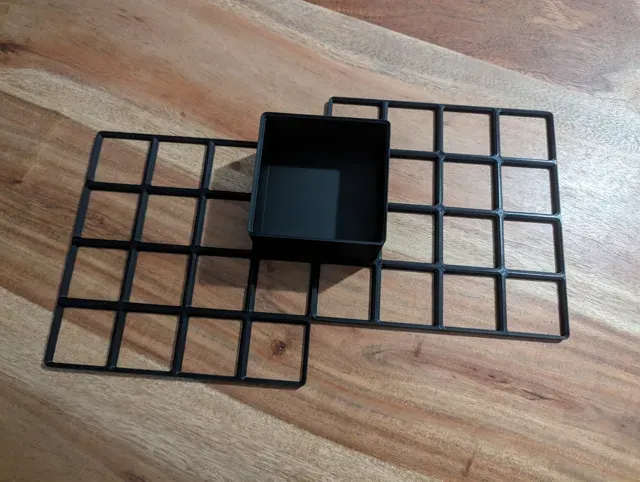

Gridfinity Parametric Base Plate — Image 3 of 3
3D model · MakerWorld

Gridfinity Parametric Base Plate

Model details

Platform
MakerWorld
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
SCAD
  • 1 582 Likes
  • 12 054 Downloads
  • 6 933 Makes
  • 5 527 Collected
  • 462 Boosts
  • 468 Comments
  • 0 Views

Author:LayerCake

Published

Download on MakerWorld

Description

Based on the excellent Gridfinity system by Zach Freedman Wiki: https://gridfinity.xyz/

Differences from the standard design:

- The interface has an added 0.4 mm flat section on top. - The bottom chamfer has been extended for improved print bed adhesion. - The base units can be overwritten which breaks compatibility but can use all space available. Please do not share print profiles here that break compatibility. Label print profiles well according to their settings.

Customization Options

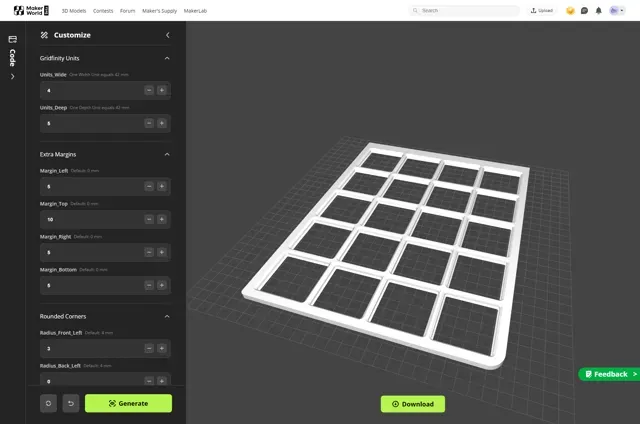

The basic customization starts at the width and depth of the base plate in gridfinity units. Additionaly margins can be added on all sides and the rounded outside corners can be configured or completely removed.

On top of that the base units for the grid can be redefined. This will break compatibility with the standard gridfinity containers etc. but will allow for much more flexibility when filling a drawer completely with containers.

An equally modifiable container can be found in my other models here .

Notes

The OpenSCAD file is licensed as MIT.

Source files included.

Guides and print profiles

Print profiles and steps

Gridfinity 4x4 Base Plate - Default Settings

A1 Mini Compatible, 4x4 0.2mm layer, 2 walls, 15% infill

A1mini, 3 x 3, 0.2mm layer, 2 walls, 15% infill mit A1mini, 3 x 3, einfacher Druck

Strong and lightweight 0.2mm layer, 2 walls, 10% infill This model doesn't require a lot of infill but is still strong.

Set for Ikea Hemnes chest (small drawer). Fits A1 mini A set with margins for Ikea Hemnes chest (8 drawers model) for small drawers at the top

- Gyroid infill

Baseplate for Really Useful Box 4L (A1 mini) Made to exactly fit the common really useful box. It is split in 4 parts to fit the A1 mini printbed.

RSP 6x2 +16mm and 5x2+16mm need to pull the purge line off after it prints
