Roy Air Purifier

Model details

Platform
MakerWorld
Price
Free
License
CC0
Public domain: print, modify and sell, no attribution required.
Formats
ZIPSTLSLDPRT
  • 22 Likes
  • 22 Downloads
  • 1 Makes
  • 38 Collected
  • 0 Boosts
  • 11 Comments
  • 0 Views

This model on other platforms

Author:川

Published

Download on MakerWorld

Description

Video:

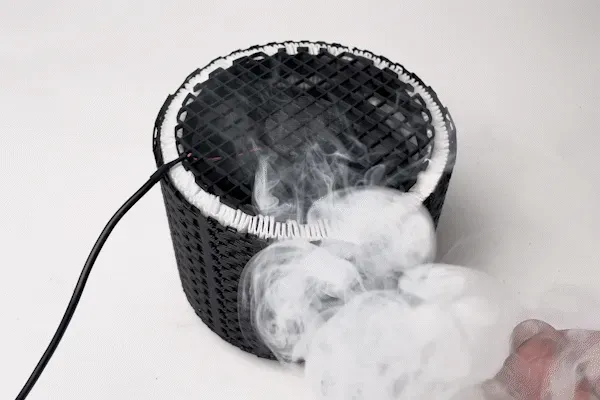

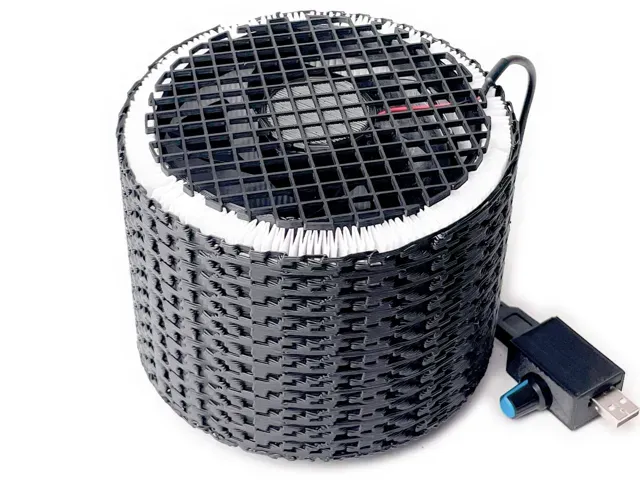

Roy draws air from the sides and the bottom. The air drawn from the bottom is filtered by activated carbon, which removes odours and gases, the air drawn from the sides is filtered by Hepa Filter, which removes dust and allergens. Overall, the air in a room is filtered by both activated carbon and Hepa filter.

Roy works with 120mm fans: cut the fan frame with pliers

Then attach the fan to the cap with thick double-sided tape.

A good fan is UpHere, which is smaller then usual 120mm fans, that is why there is a custom "uphere" version of Roy. Use the non “Uphere” version for other 120mm PC fans.

If you choose a USB fan, add a "usb fan speed controller" (Google it) to adjust and increase USB fan speed:

Cut 3 Roy filters from 1 400x300x10mm “Frameless hepa filter” ( link1 , link2 )

Use 3-5mm granular activated carbon

Airflow measure video:

Guides and print profiles

Print profiles and steps

Roy This profile makes the same pattern as Ivo , wich is slightly different compared to the pattern shown in the pictures.

For the same pattern, download “Roy_print files.zip” folder and use the Cura sliced universal gcodes.

Global:

Layer height: 0.6mm

line width sparse infill: 0.9mm

walls: 0

top shell layers: 0

bottom shell layers: 0

sparse infill density: 40% sparse infill pattern: rectilinear lenght of sparse infill anchor: 1000mm (unlimited)

maximum lenght of sparse infill anchor: 1000mm (unlimited)

speed sparse infill: 50mm/s

brim: yes

Roy body 2:

sparse infill density: 60%

sparse infill pattern: Grid

Roy body 3:

line width sparse infill: 1.2mm

sparse infill density: 60%

sparse infill pattern: Grid
