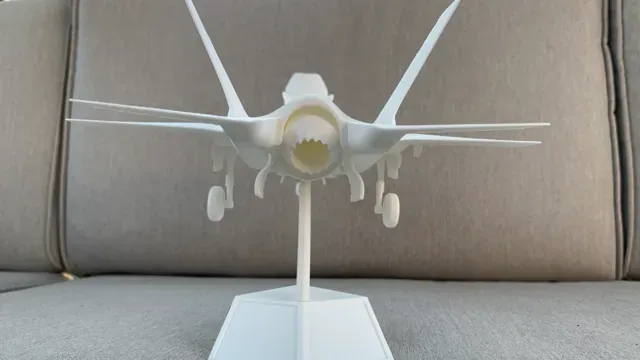

F-35 B Lightning II STOVL — Image 6 of 15
F-35 B Lightning II STOVL — Image 7 of 15

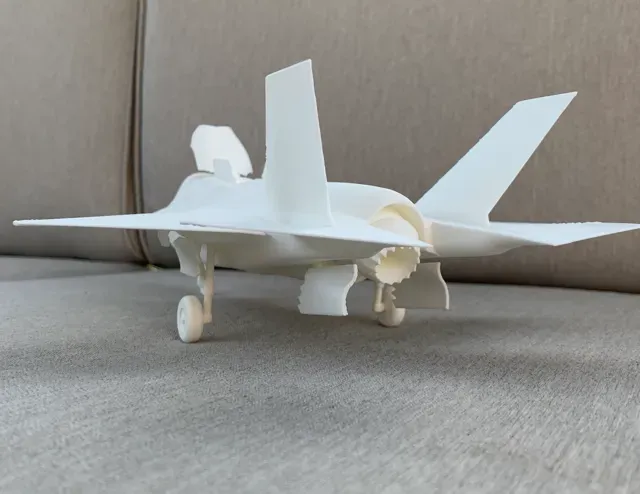

F-35 B Lightning II STOVL — Image 8 of 15
F-35 B Lightning II STOVL — Image 9 of 15

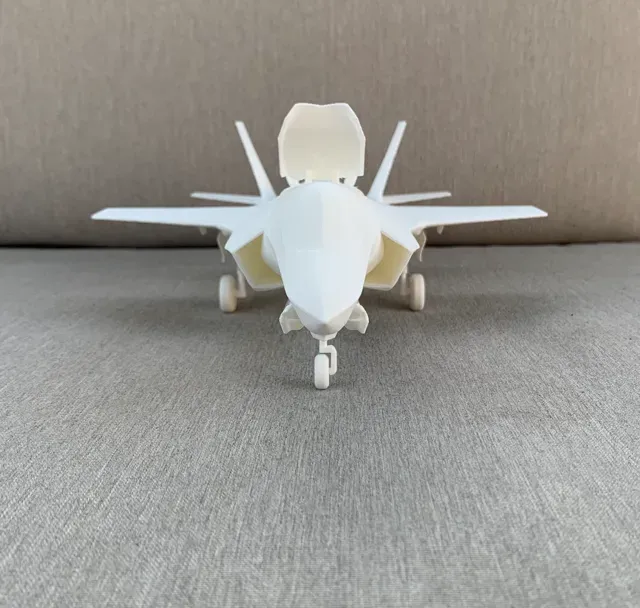

F-35 B Lightning II STOVL — Image 10 of 15
F-35 B Lightning II STOVL — Image 11 of 15
F-35 B Lightning II STOVL — Image 12 of 15
F-35 B Lightning II STOVL — Image 13 of 15
F-35 B Lightning II STOVL — Image 14 of 15
F-35 B Lightning II STOVL — Image 15 of 15
3D model · MakerWorld

F-35 B Lightning II STOVL

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STL
  • 2 085 Likes
  • 4 265 Downloads
  • 1 535 Makes
  • 4 473 Collected
  • 377 Boosts
  • 302 Comments
  • 0 Views

Author:Sgt_Reckless

Published

Download on MakerWorld

Description

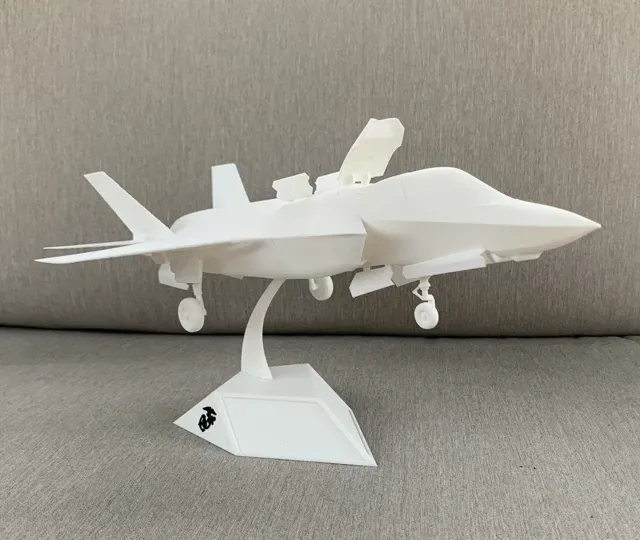

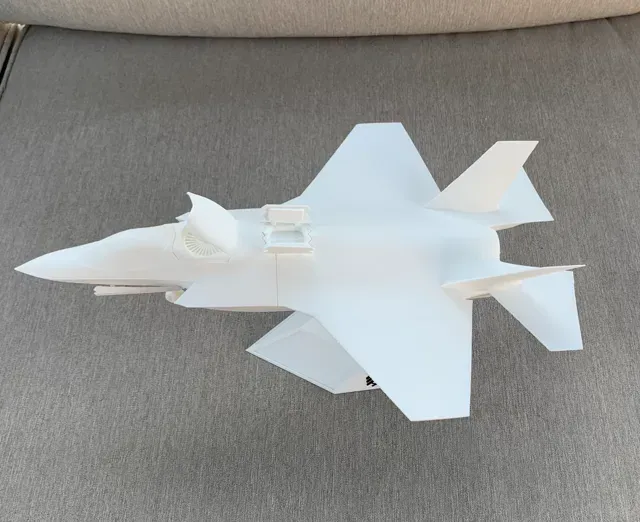

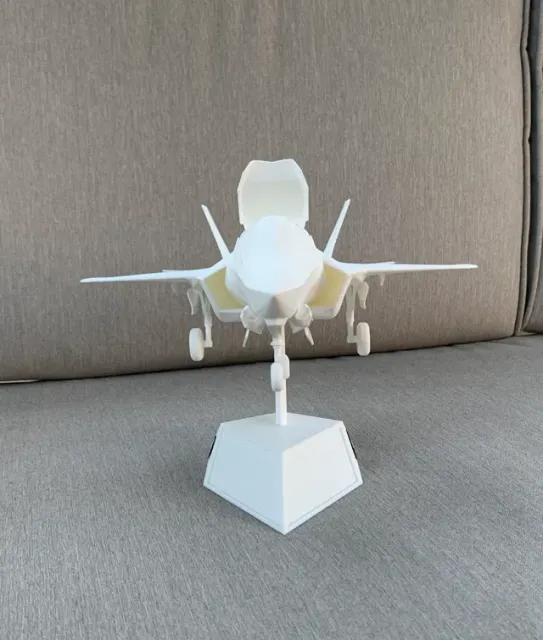

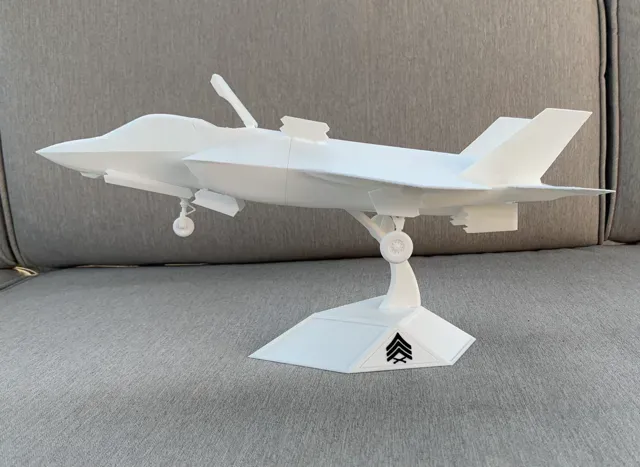

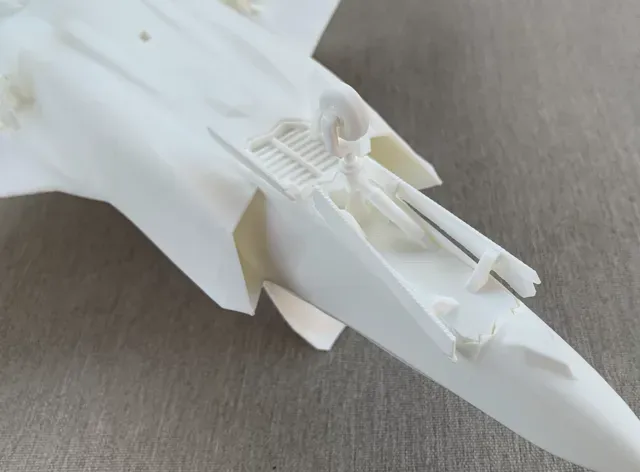

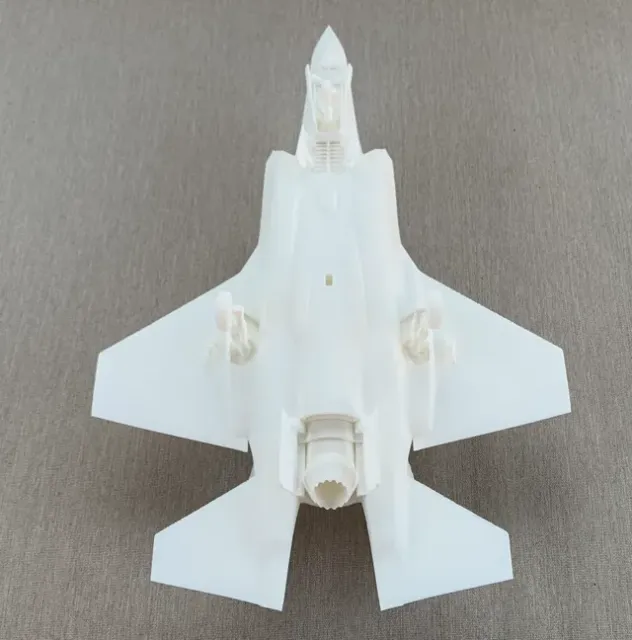

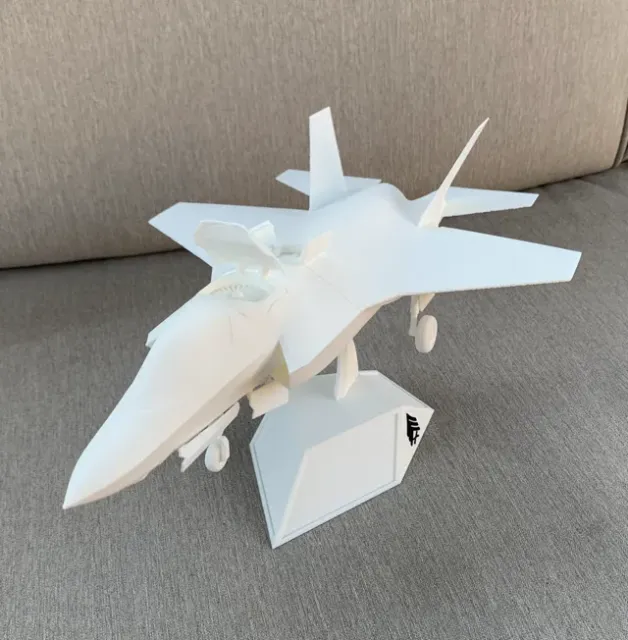

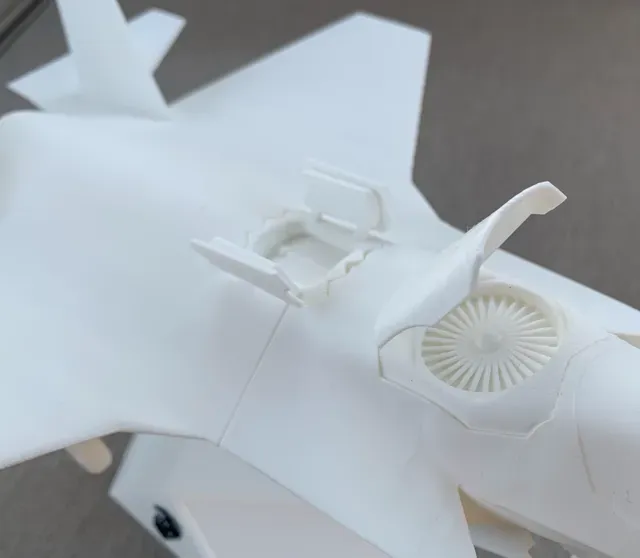

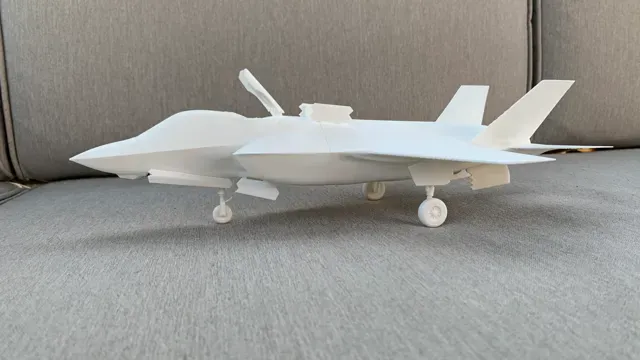

This is the Marine Corps' F-35B Lightning II in STOVL mode. It is the only variant out of the three within the F-35 program that has the capability of Short Take-Off Vertical Landing. It was initially designed to be a light, agile multirole fighter comparable to the F-16, but as more capabilities were added, the aircraft gained a considerable amount of weight, earning it the name "Fat Amy" or the "Battle Penguin" due to its short wingspan compared to the length of its fuselage. Nonetheless, it is a highly capable and very lethal stealth penguin in the US military arsenal. This is a 1:46 scaled model .

Like all my models I've posted, every bit of this is drawn from scratch using Autodesk Fusion. The stand design I came up with was inspired by the Electro-Optical Targeting System (EOTS) used on the F-35s, giving it a unique look that sets it apart from some of the stands you can find online.

If you enjoy this model and share a passion for 3D printing and aviation history like me, please drop a like and a boost!

This model is copyrighted (c) with a license belonging to Sgt_Reckless.

Guides and print profiles

Print profiles and steps

All Printers, 0.16mm, 7% Triangular 0.16 layer height

Print with supports, tree supports recommended

7% infill on the body

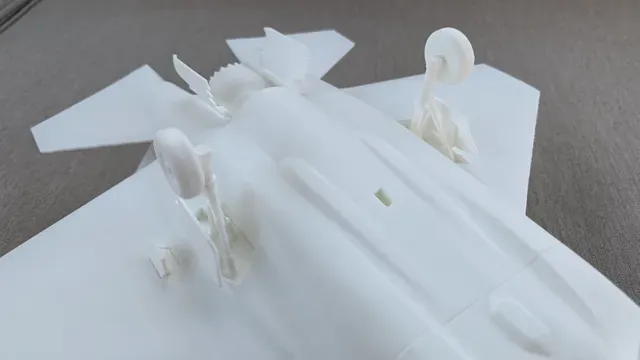

Black/Grey Dual Color Details I added black coloring for the smaller pieces like the tires and fan. The pieces were reorganized to optimize print time. Total is around 11 hours.

***please note: to reduce print time and waste, the main fuselage is not multicolor, you must use a marker or paint for the canopy and the engine ***

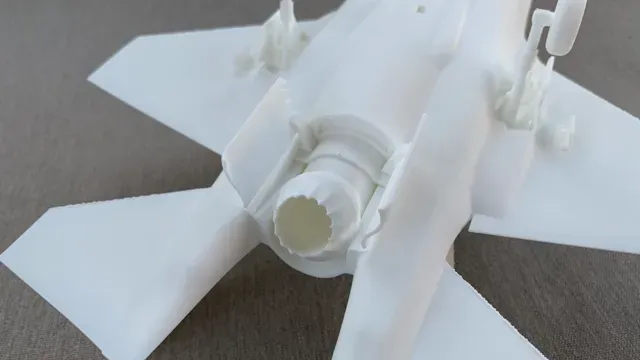

Multicolor fuselage/wheels,0.16mm layer,2 walls,15% infill I used Bambulab translucent PETG to simulate a real aircraft canopy. Moreover I colored the jet engine and back ailerons in black to have a better contrast with the rest of the fuselage.

Like the original, but on a single plate The only modification I made is on the supports for the main body which are now “normal snug” to save a little bit of space
