Description

Update:

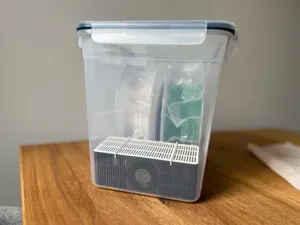

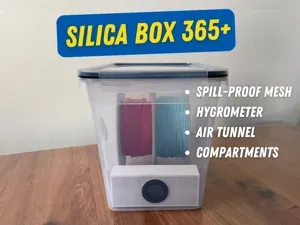

I made a complete new version with a improved silica box with locking lids.

You can find it here

Alle parts are compatible to this one, so for example you can just print the new silica box and keep the other parts.

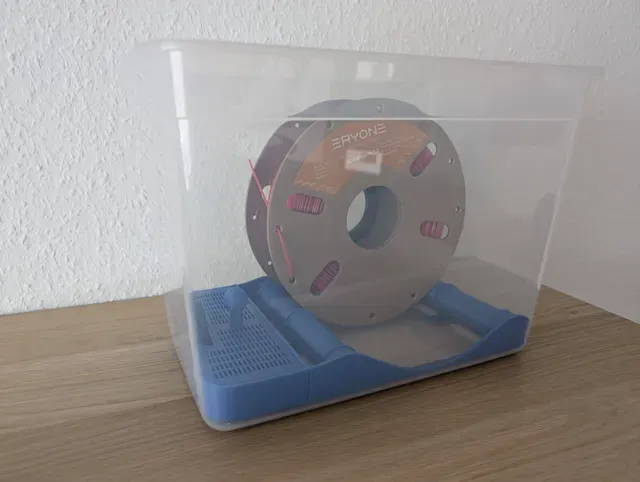

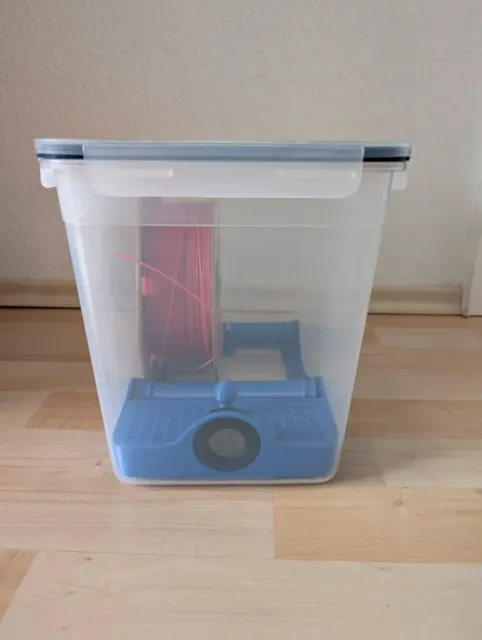

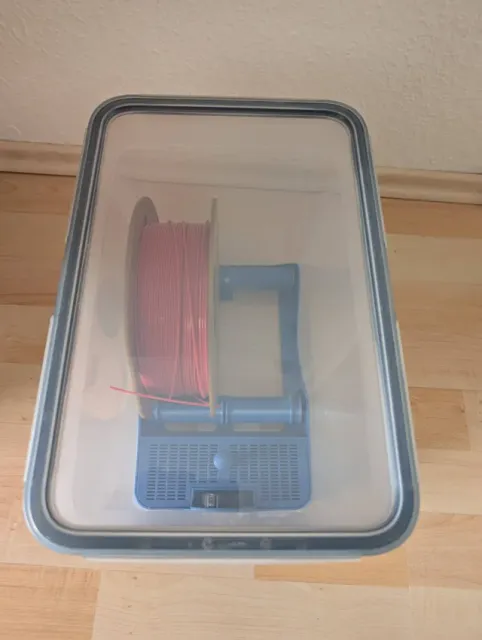

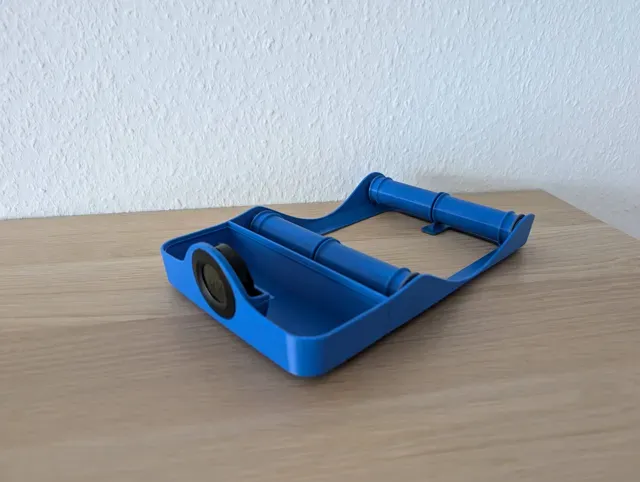

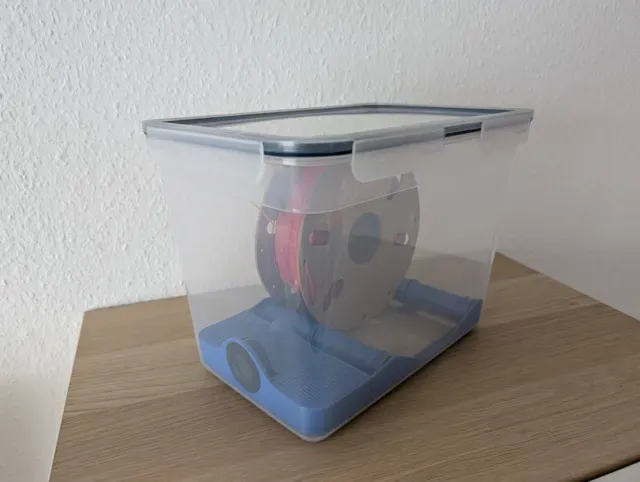

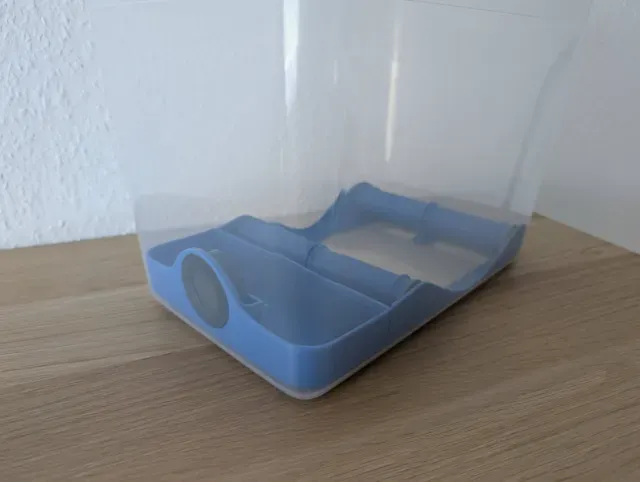

Was looking for a dry box and found the IKEA 365+ 10,6l container and @Twotone74 already designed a spool holder for it.

I did a quick and dirty remix to it, to better fit my needs:

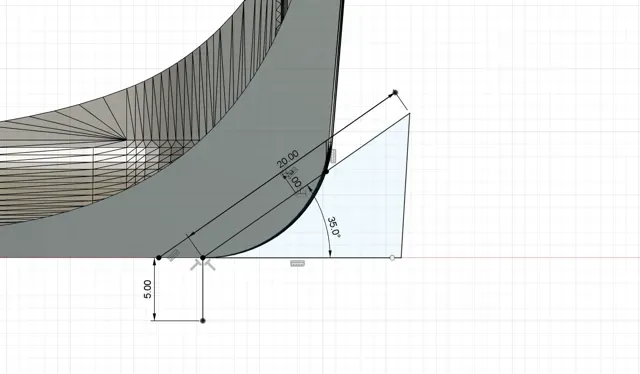

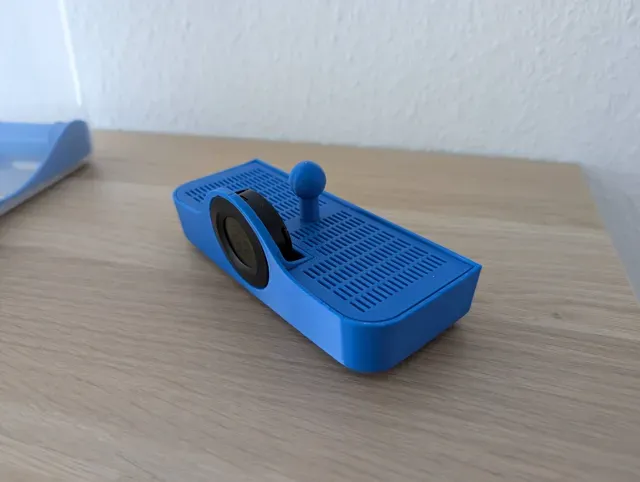

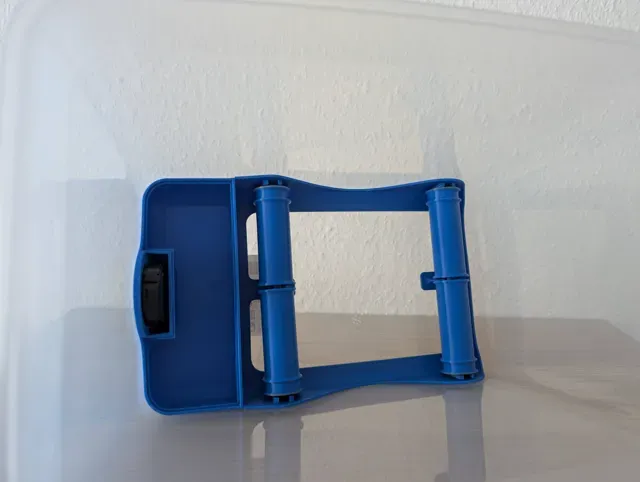

- made it symmetrical, original it was 65+85mm, now it is 75+75mm Rolls - resized the hole for the bearings, it was a big to bit - added a version of the roll for use without bearings - angled the underside edge to 35° so it's easier to print - made a lid for the silica container - resized the slot for the hygrometer (affiliate link), it's now a bit wider and without cutouts for the tabs, now all versions of the hygrometer should snap in, regardless of their tab positioning and you can just rotate it into correct orientation You will need 8x 608 bearings (affiliate link) and 1xM3 screw for the silica lid.

Guides and print profiles

Print profiles and steps

0.2mm layer, 3 walls, 15% infill

better fit for bearings and shaft slightly reduced openings to fit  bearings tighter openings have now the same diameter on both sides

increased shaft size slightly for tighter fit through the bearings

für A1 mini geschnitten und angepasst neben dem Schnitt wurden noch Versteifungen ergänzt

Spool Holder without Rolls - 0.2mm layer, 2 walls, 5% infill Alternative Spulenhalter ohne Rollen, falls ihr nicht aus der Box drucken möchtet.

- 0,2mm Schichthöhe - 2 Wandlinien - Füllung 5% mit Gyroid - weniger Filament als original

Alternative Handle Just a simple alternative handle that is a little lower profile and possibly more ergonomic (I know nothing about the subject) as I wasn't keen on the look of the original handle.

A1-mini optimized with 608 bearings snap fit - Bearings 608 snap fit version - Further optimized for A1-mini, everything fits on just 2 print beds! - Pleacement optimized for printer head travel efficiency
