Slide Door Handle and Lock

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STEP
  • 60 Likes
  • 64 Downloads
  • 0 Makes
  • 129 Collected
  • 0 Boosts
  • 0 Comments
  • 0 Views

Author:Rittai 3D

Published

Download on MakerWorld

Description

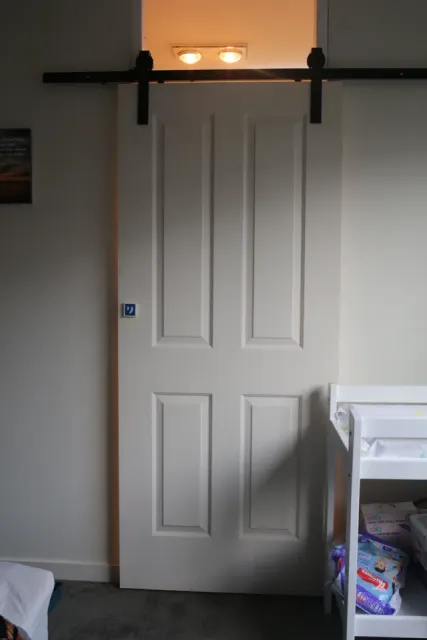

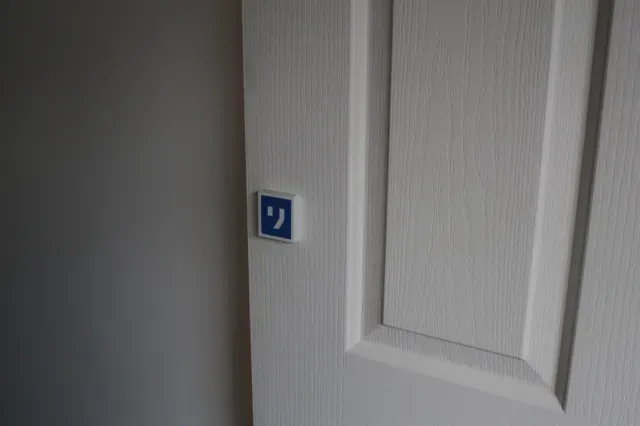

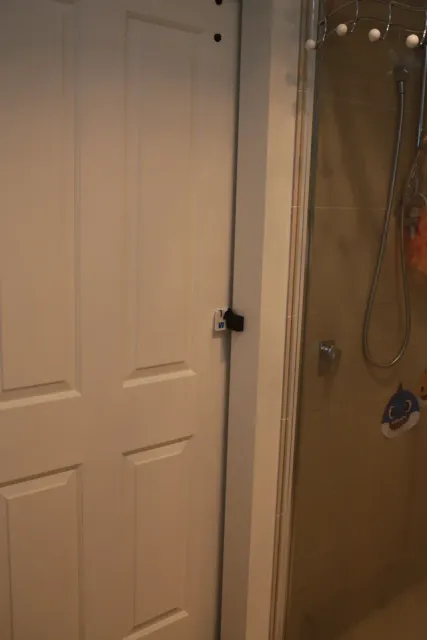

Handle and Lock for Sliding Door.

Components:

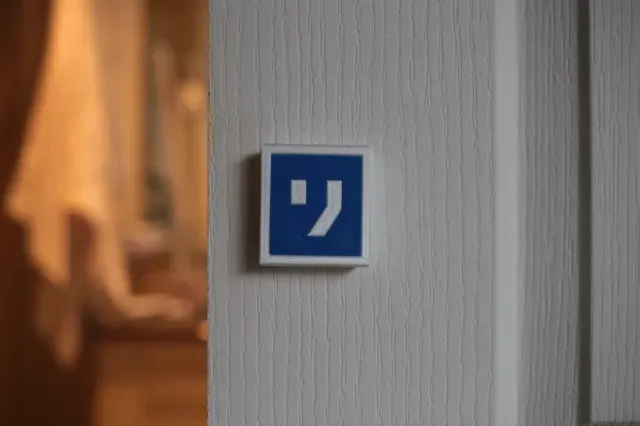

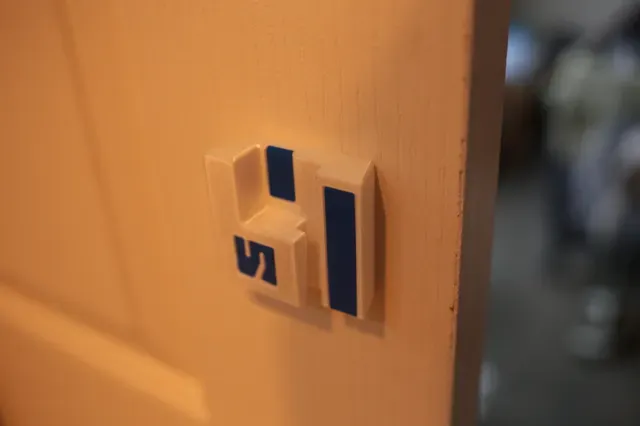

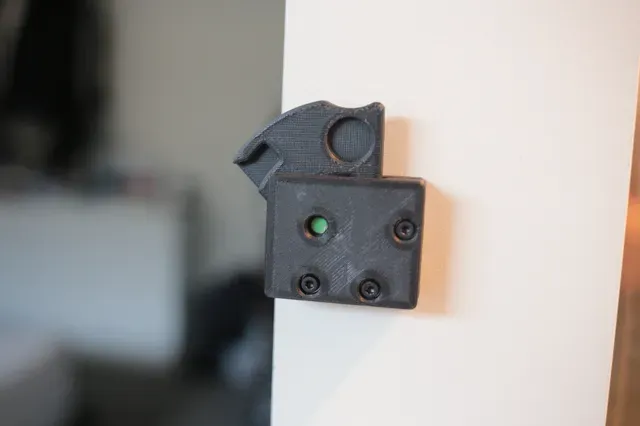

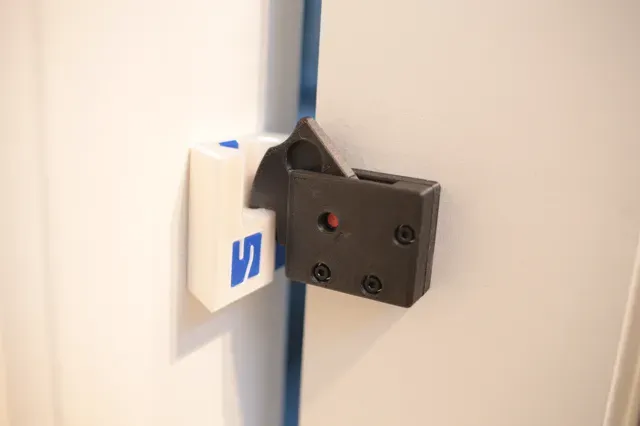

- Outer Handle (Base + Cover Plate + Qty 4: 6Gx25mm Tapping Screw) - Inner Handle (Base + 3 Cover Plates + Qty 4: 6Gx25mm Tapping Screw) - Lock Base (Base + 3mm x 14mm Gauge Pins + Qty 3: M3 x Hex Nut) - Lock Base Cover (Base + Neodymium Magnet 5x1.5-2.0mm + Qty 4: M4x16mm Cap Head Screw) - Latch (Base + Lock and Open Indicators + Neodymium Magnet 5x1.5-2mm) Print Notes: The lock base cover and latch contain magnets which require a pause operation. 4xPerimeter walls, 30% Infill.

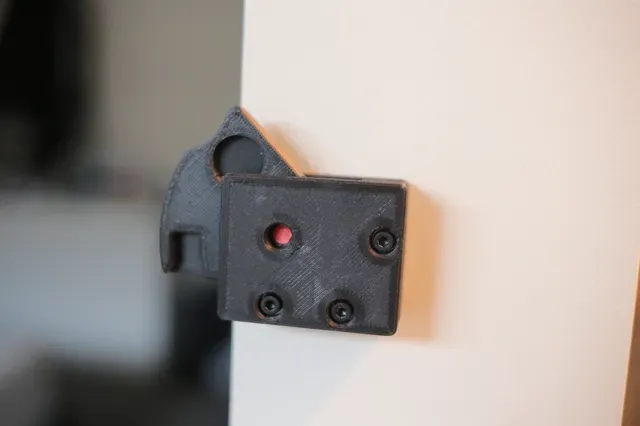

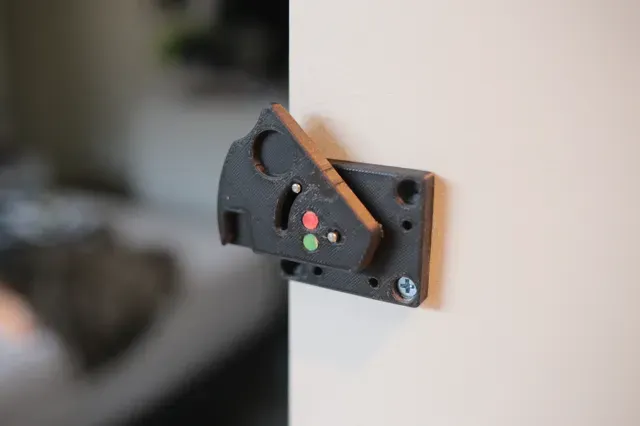

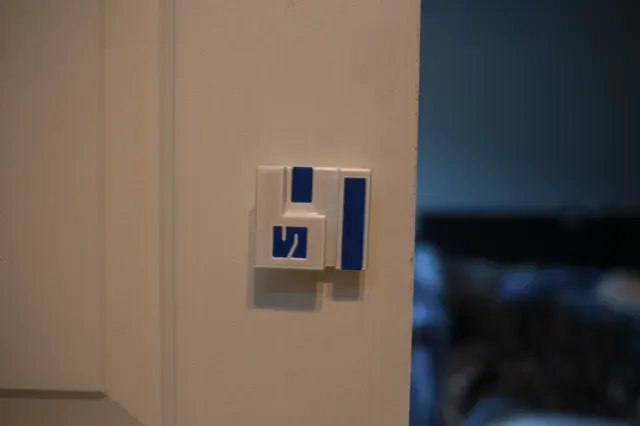

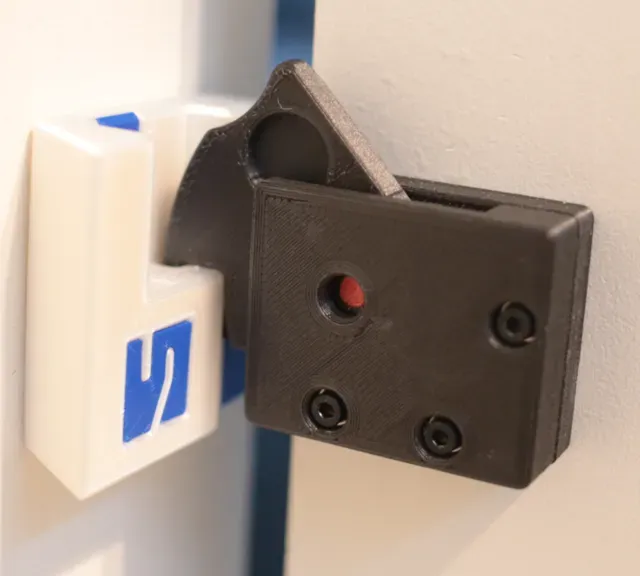

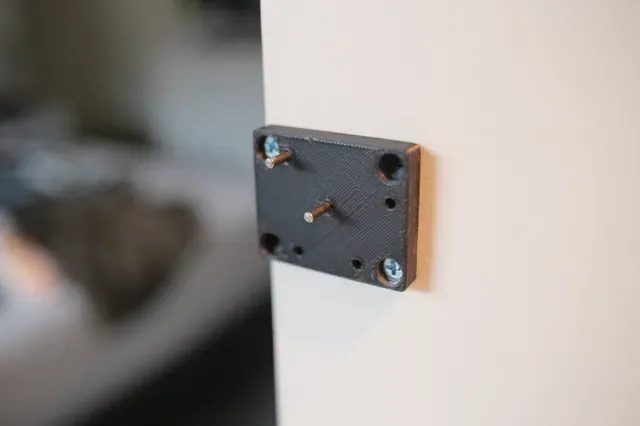

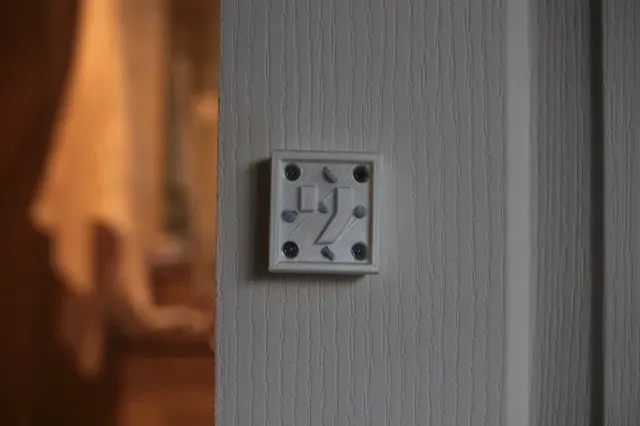

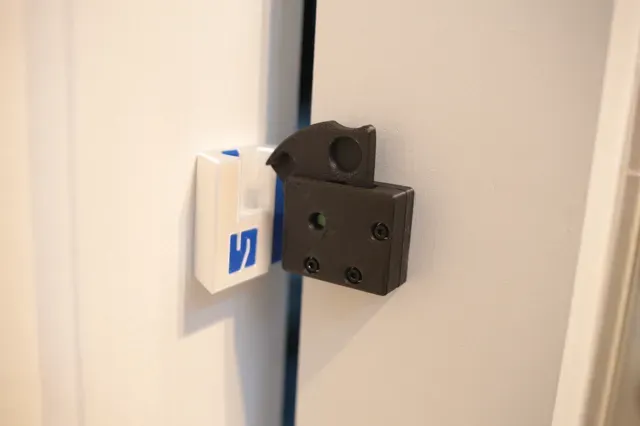

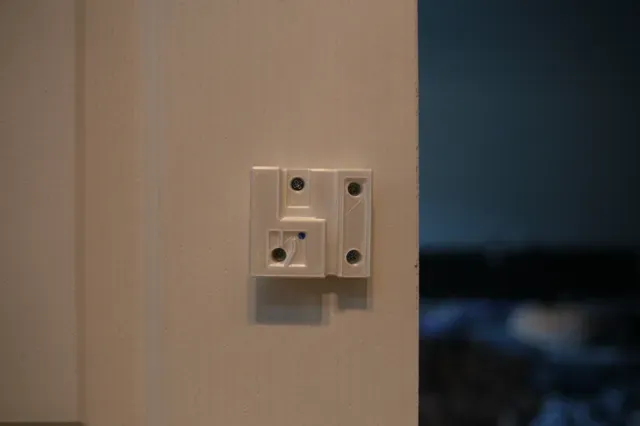

Assembly Notes: Test fit everything using tape or blue tack. Adjust design as required using step files included. Lock Side: Install Nuts to Base Plate then attach to wall with tapping screws, add gauge pins, assemble latch, then add cover and secure with cap head screw. Handles: Once positioned attach using tapping screws and cover with plates (secure with temporary fixing such as double sided tape or blue tack.

Tags

doorhandledoor handlelocklatch
