Electric Junction box fot 16mm or 7mm sleeving.

Hi everyone,

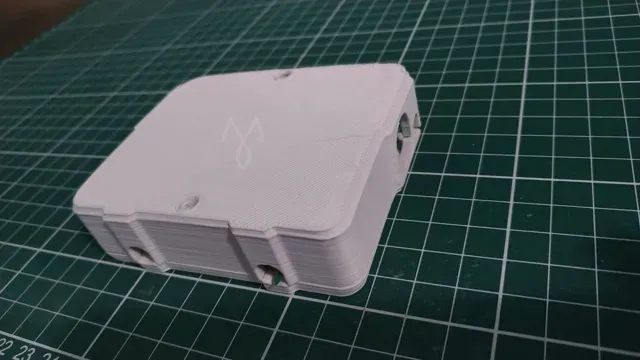

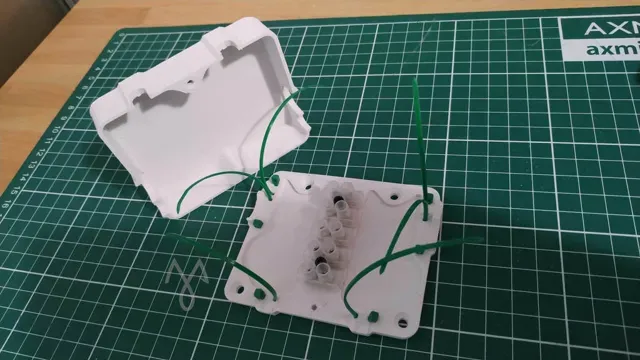

I needed a simple junction box for my shop refit. I have 16mm sleeving actually and I want to use some 7mm 2p+T cable. I use standard EU style 18mm dominos as terminal. The junction box is meant to be wall mounted, and wires and sleeving will be hold in place by 2x1mm zip ties. The wall of the box are embed into the lid to allow easy access to the cables and terminal (hate to dig with my fingers to get cables lying at the bottom of an always too deep box). Two plastic screws keeps the lid on.

PRINTED PARTS :

1x Base Plate

1x Lid

?x 7mm plug (to close unused pass-thru)

?x 16mm plug (to close unused pass-thru)

BOM :

6x 2x1mm Zip Ties to secure wires, sleeving or plugs

4x 4mm countersink screws to secure the box on the wall

2x 3x12mm hex socket plastic screws to secure the lid.

2x 3x10mm hex socket plastic screws to secure the terminal

1x 5U 18mm domino terminal

I hope you guys enjoy this.

Print Settings

Printer:

HE3D Tarantula

Rafts:

Yes

Supports:

No

Resolution:

.2

Infill:

80% Linear

Filament:

eSUN ABS White

Notes:

The raft prevent warping.

How I Designed This ===================

Category: Replacement Parts
