Turntable - Simple, Robust, and Servo Driven
Model details
- Platform
MakerWorld
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- 3MF
- 58 Likes
- 134 Downloads
- 48 Makes
- 116 Collected
- 6 Boosts
- 4 Comments
- 0 Views
This model on other platforms
Description

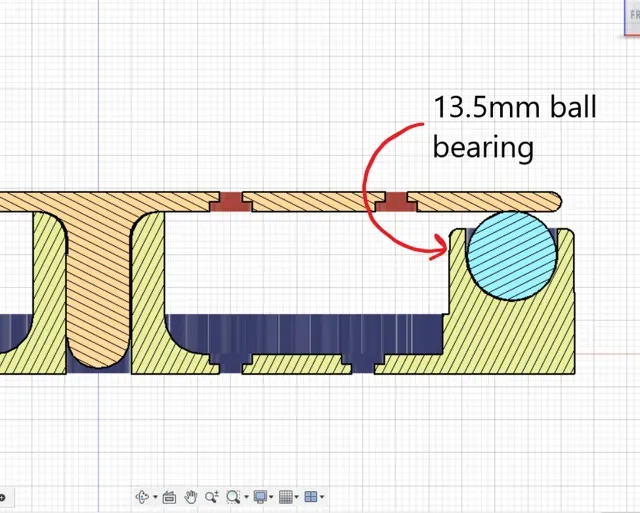

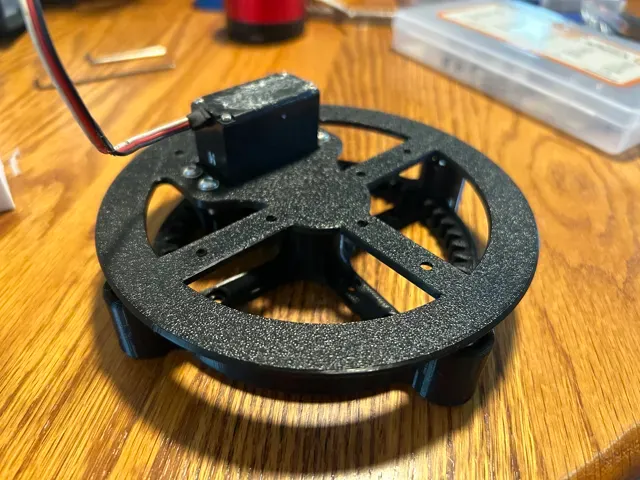

This turntable is designed for a Futaba FP-S148 Servo modified for 360 degree rotation. You will also need four 13.5mm ball bearings and M3 hardware for mounting. There are numerous mounting holes on both the bottom and top of the turntable, so attaching parts to it should be straightforward. All parts are printed in .2mm resolution with no supports. I have included the Fusion 360 assembly file as well if you'd like to modify the design for a specific project.
Enjoy!
Guides and print profiles
Print profiles and steps
0.2mm layer, 2 walls, 15% infill
13.5 mm Ball Bearing - Variable Layer Height
0.2mm layer, 2 walls, 15% infill
