Toolgrid Screwdriver Clips
Toolgrid Screwdriver Clips — Image 2 of 4
Toolgrid Screwdriver Clips — Image 3 of 4
Toolgrid Screwdriver Clips — Image 4 of 4
3D model · MakerWorld

Toolgrid Screwdriver Clips

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
SLDPRTSTEP
  • 194 Likes
  • 674 Downloads
  • 233 Makes
  • 723 Collected
  • 20 Boosts
  • 20 Comments
  • 0 Views

Author:brentbiggity

Published

Download on MakerWorld

Description

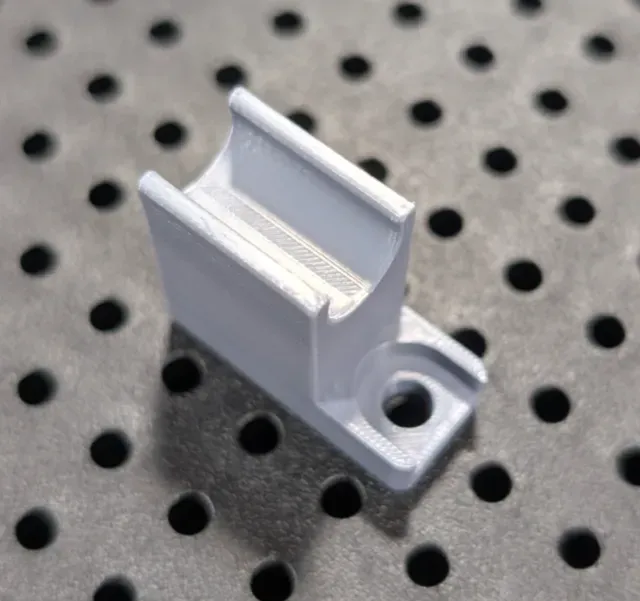

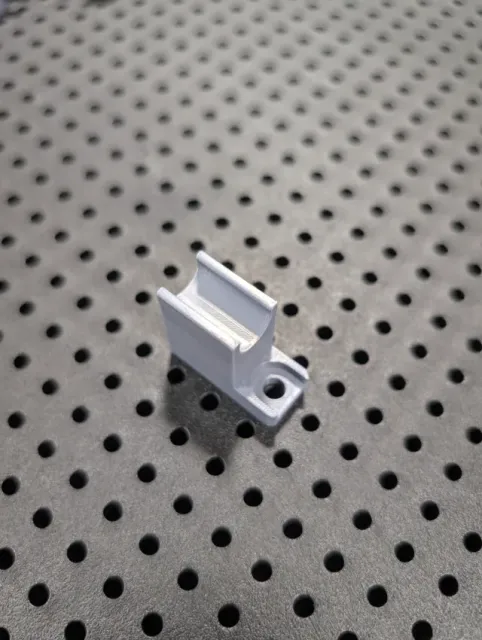

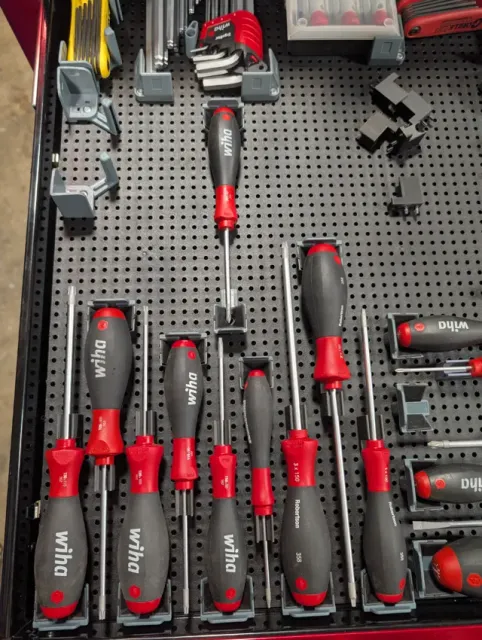

I was annoyed with the inefficiency of the Toolgrid system for screwdrivers, so I made my own. This design reduces the number of holes from 3 to 1 for the screwdriver end. About 30% overall space savings. Placing right ahead of the screwdriver base. I've tested with slamming the drawer and they stay put.

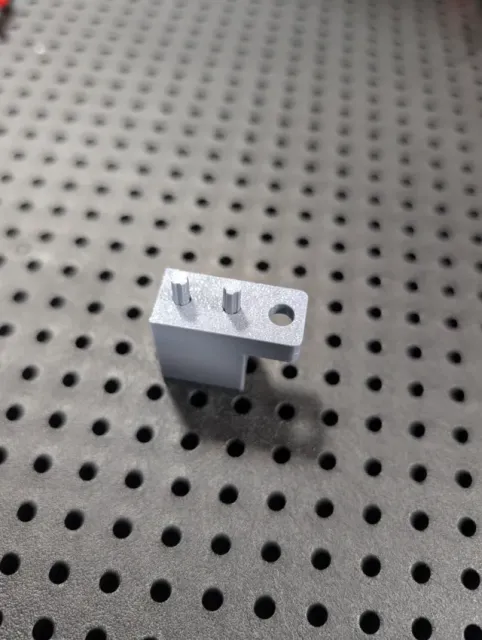

Model is printed in 3 pieces. 3mf file contains all the required models combined. The pins are half tapered. You will feel some resistance on one side and not on the other. The side with resistance is the correct side. Just start both pins then press them in by hand on something hard like a cutting board.

Guides and print profiles

Print profiles and steps

0.2mm nozzle, 0.06mm layer, 4 walls, 15% infill The only change required from default 0.2mm HQ profile is to increase the bottom wall thickness to 2mm. That is to add stiffness to the pin holes for side loading.

0.08mm layer, 2 walls, 15% infill 0.4mm nozzle, with everything else the same

Cuts print time by 40%
