Mountain Key Holder/Hanger

Model details

Platform
MakerWorld
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 2 358 Likes
  • 4 589 Downloads
  • 2 777 Makes
  • 6 279 Collected
  • 198 Boosts
  • 267 Comments
  • 0 Views

Author:TarasTech

Published

Download on MakerWorld

Description

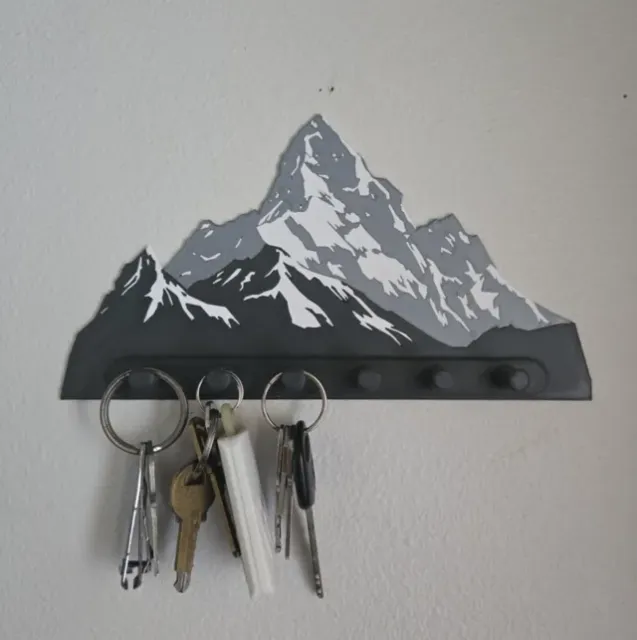

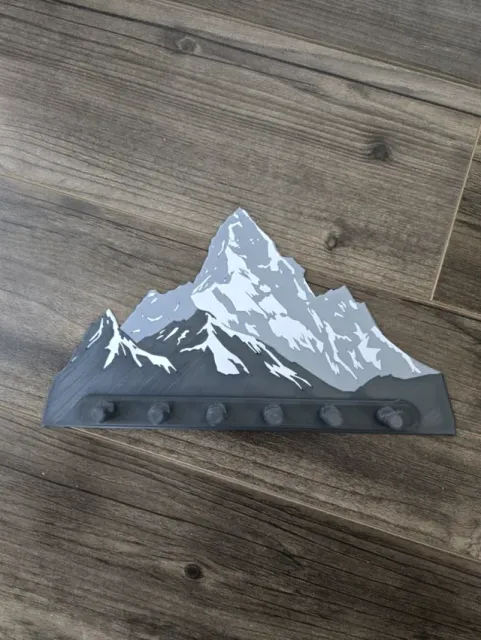

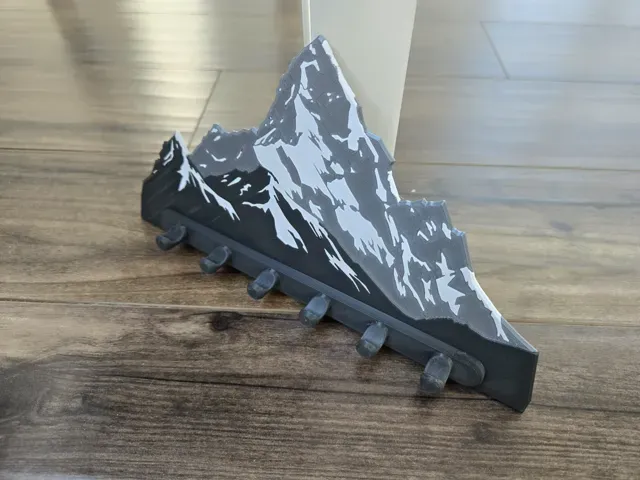

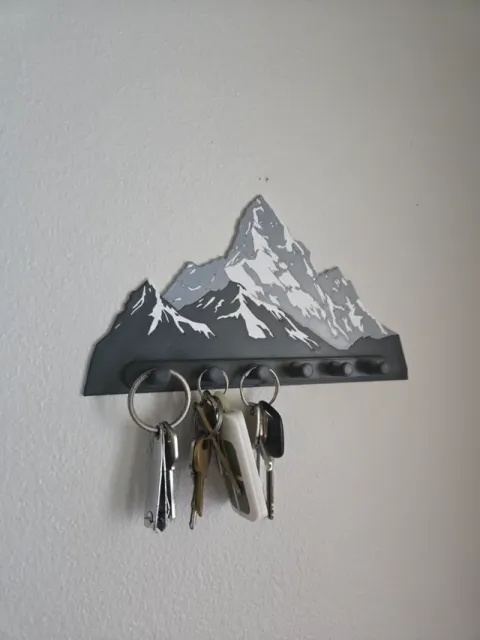

This mountain-themed key holder adds a touch of outdoor adventure to your space while keeping your keys organized. It features a silhouette of a snow-capped mountain range in shades of gray and white, but you can print it in any 3 colors you like. With six sturdy hooks, it provides ample space to hang your keys, fobs, and small accessories. Perfect for entryways, cabins, or nature-inspired decor, this key holder combines functionality with an artistic flair.

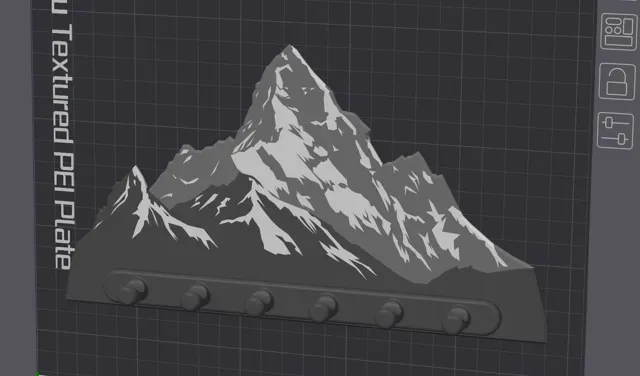

There are multiple files available. The main one is specifically made for BambuStudio users, while the other 2 files are specifically set up for OrcaSlicer. The model in the images was made using the multicolor AMS printing system, but there is an option to print it by layers, swapping out the filament in between. There is a ready available file named “Layers” that you may use in OrcaSlicer, or you can slice it yourself using the STL file.

Recommended preset is the standard 0.20mm layers with a 0.4 mm nozzle. I used Variable Layer height to made the model smoother on the curves. I also recommend turning on Ironing for the best surface results. I also have seams set to Scarf Joint Contour. You may use whatever infill you like, mine I printed at 15%. Mounted to the wall using double sided tape (recommended 3M Command Strips)

Attribution: Image

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill - 0.20mm layers (with Variable Layer Height set to Adaptive) - 0.4mm nozzle - Ironing set to "All top surfaces" - Turn on Scarf Joint Contour seams

with screw holes Added two screw holes. Should accommodate screws with shank/body up to 1/8 inch and head double that size.

95% size to fit A1 mini I have resized and rotated the original project to fit the A1 mini plate. X and Y is resized to 95%, Z is unchanged. Rotated ~45 degrees to minimize the need of resizing.

Four Pegs (54mm long), 270mm Wide, 147mm Tall Reworked this to hang dog collars/leashes on rather than keys. Fewer pegs that are longer, plus larger overall dimensions.

green mountains in front: 0.2mm layer, 2 walls, 15% infill 0.20mm Standard

colorized with black white and green, in order to create a more realiustic impression of the m,ountains I live near to (Alps).

0.2mm layer, 2 walls, 15% infill This profile is a compact, magnetic version of the original key holder, optimized for a sleek look and hidden functionality.

Custom Modifications:

- Scaled to 85% : Perfectly resized for a more space-efficient design. - Magnetic Mounts : Designed to hold five 10mm x 2mm magnets instead of traditional hooks. - Programmed Pause : The G-code is pre-set to  pause at Layer 22 (out of 26). This allows you to drop the magnets into their slots before they are permanently sealed inside by the final layers. - Ironing Enabled : The top surface includes an ironing pas on the final layer for a smooth, professional, and "glass-like" finish.  Instructions for the Maker:

- Magnet Insertion : When the printer pauses at Layer 22, insert your 10mm x 2mm magnets. - Tip: Use a magnet insertation tool or a small drop of super glue to ensure they stay flush and don't jump to the nozzle. - Resume : Once the magnets are seated, simply click "Resume" on your printer. - Finish : The printer will seal the magnets and finish with a high-quality ironing pass.

a new color scheme for a more beautiful atmosphere It was only when I started publishing the print profile that I saw someone else had already come up with the same idea; however, since my color scheme is slightly different, I decided to publish it anyway.
