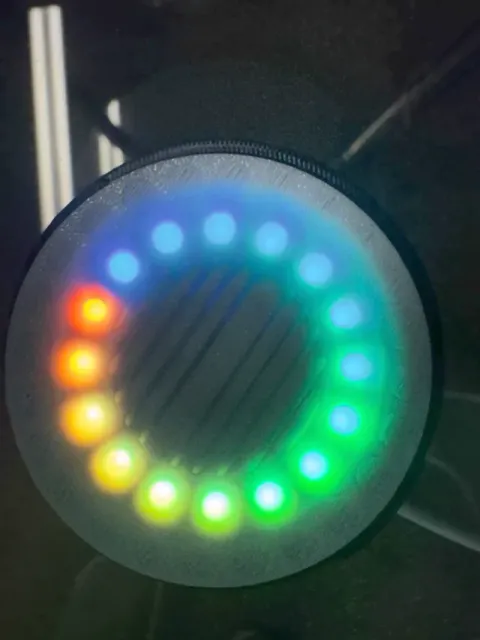

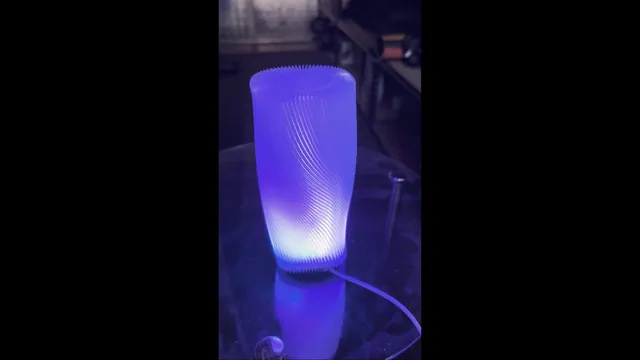

WLED insert LED Lamp Kit 001 compatible

A WLED insert compatible with the LED Lamp Kit 001.

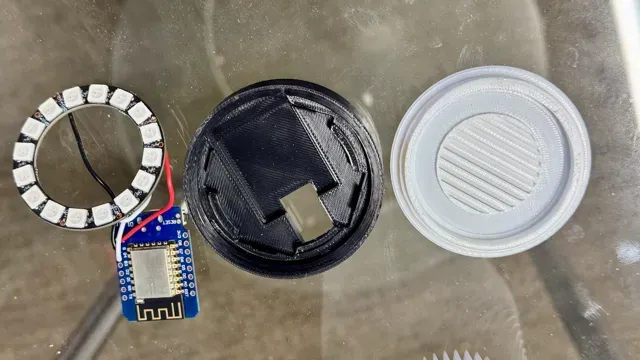

Uses a D1 Mini 8266 controller. https://amzn.to/3zMI5YK

A 16 LED WS2812 Ring https://amzn.to/404ctZ8

Free WLED software https://kno.wled.ge/

It gives you full color with thousands of effects.Requires soldering three short wires.

Print in white or transparent PLA or PETG both work well.

Install WLED using your browser and a USB cable.

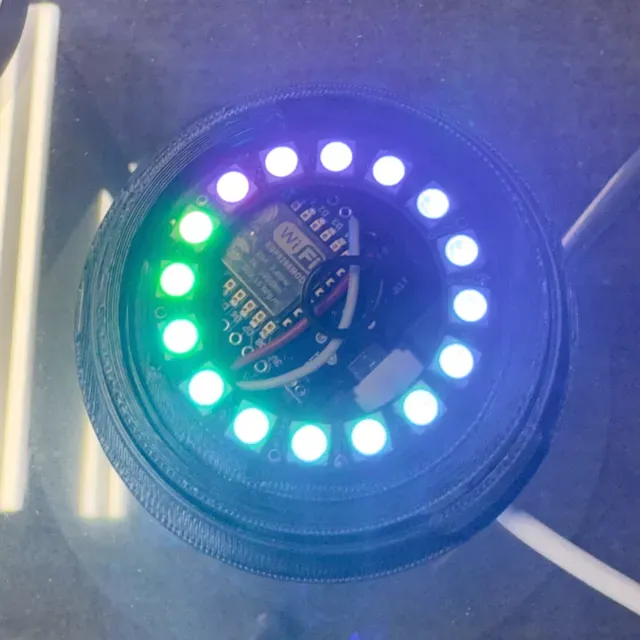

Connect the 5v and Ground (G) from the 8266 to the LED ring. Connect D4 (IO2) to the “D-In” of the ring.

Put it in the case, power withe USB the follow the setup instruction on the WLED site.

This insert is marginally thicker than the BBL one (12mm) so it may not fit all LED Light Kit models.
