Mini screw cap 5-bit magnetic keyring screwdriver

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
STEP
  • 82 Likes
  • 133 Downloads
  • 65 Makes
  • 163 Collected
  • 7 Boosts
  • 19 Comments
  • 0 Views

Author:StampyDriver

Published

Description

UPDATE : Added a 5mm longer cap (32mm) for those with longer bits. UPDATE : Added a keyring version plus a 5mm shorter cap (23mm) for those with smaller bits.

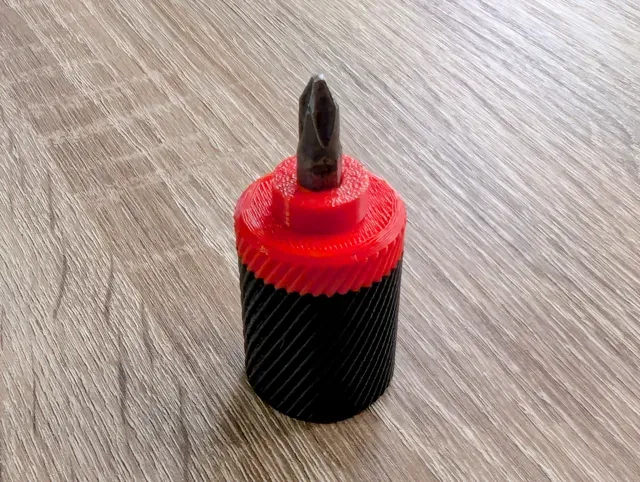

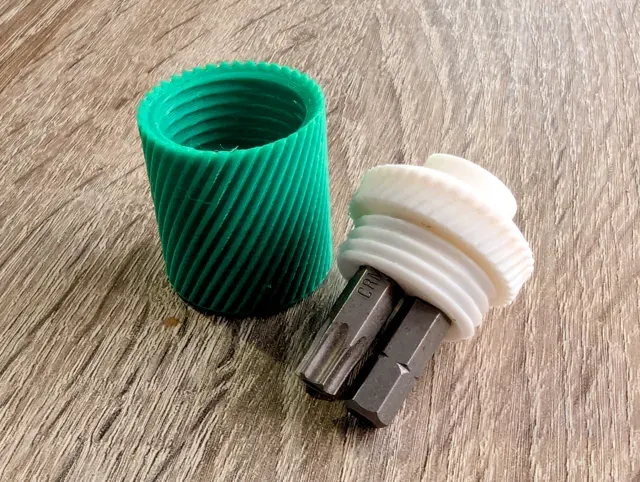

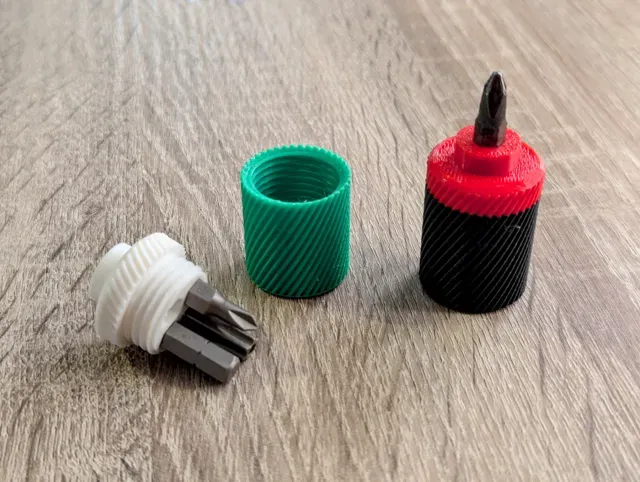

Mini interchangable ¼" bit magnetic screwdriver with screw cap compartment which have hold 4 spare bits.

Required for Magnetic Operation (Optional) - 1 * 6mm x 3mm magnet.

Simply print out both parts if the screwdriver and start using.

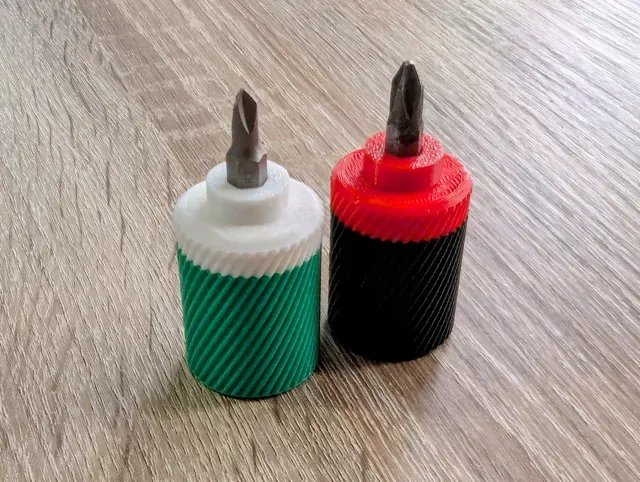

There are 2 cap versions, one with and one without a keyring loop, and in 3 sizes (23mm short, 27mm normal and 32mm long) depending on the size of your screwdriver bits.

For optimal use, take a 6x3mm maget and attach it to the end of a screwdriver bit. Apply some superglue on the other side of the magnet and place into the main bit holder and leave to dry for a while. The magnet should ensure the bit stays in the holder, it will allow screws to not fall off the bit and due to the position of the magnet will also help keep the spare bits in the internal compartment in place.

Guides and print profiles

Print profiles and steps

Multiple plates, 0.16 layer height, multiple sizes Models for the base and 4 different caps - One with and one without a keyring loop, plus a long and a a 5mm shorter version of each. All caps fit the same base.
