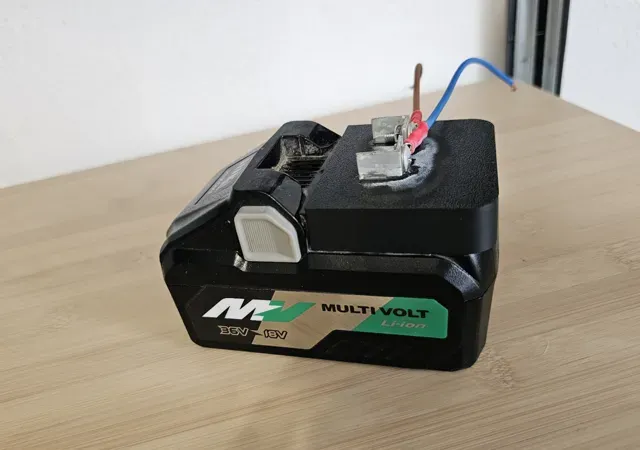

Hikoki/Hitachi MV battery adapter 18V.

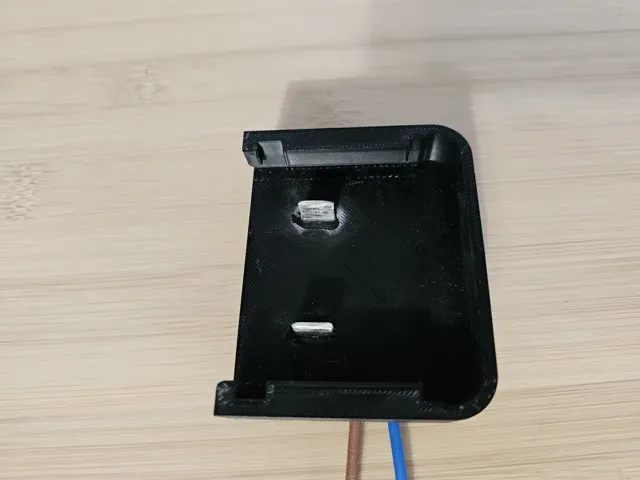

Hikoki/Hitachi MV battery adapter 18V. — Image 2 of 5
Hikoki/Hitachi MV battery adapter 18V. — Image 3 of 5
Hikoki/Hitachi MV battery adapter 18V. — Image 4 of 5
Hikoki/Hitachi MV battery adapter 18V. — Image 5 of 5
3D model · MakerWorld

Hikoki/Hitachi MV battery adapter 18V.

Model details

Platform
MakerWorld
Price
Free
License
PRIVATE-USE
Personal use only: print for yourself, no selling or sharing.
Formats
3MFSTL
  • 31 Likes
  • 118 Downloads
  • 40 Makes
  • 63 Collected
  • 1 Boosts
  • 1 Comments
  • 0 Views

Author:Iwanvana

Published

Download on MakerWorld

Description

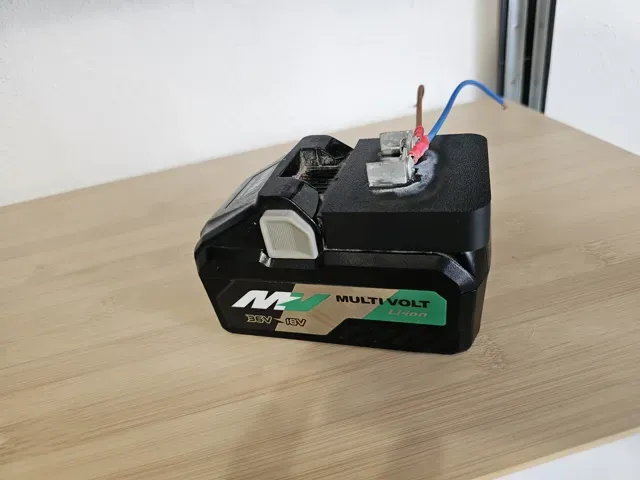

This adapter is made to use the Hikoki battery for other projects.

With the MV battery, the pins connect in such a way that 18v is available.

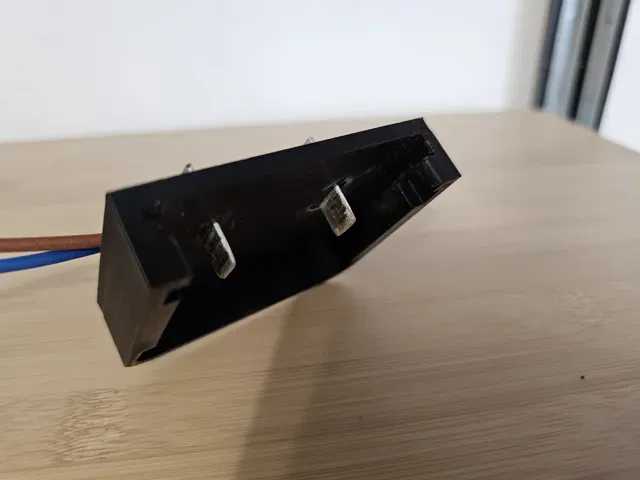

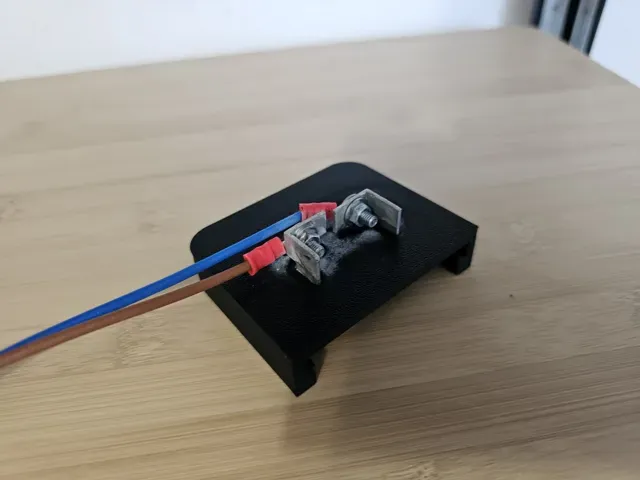

I made the contact strips from aluminum corner profile. The thickness should be approximately 2mm. If they fit through the printed slots, you are fine.

After this I secured the strips with superglue. The pins don't suffer much.

Boost Me A small effort, but a big favor for me.

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill
