Arduino Uno SnapFit Case

Features:

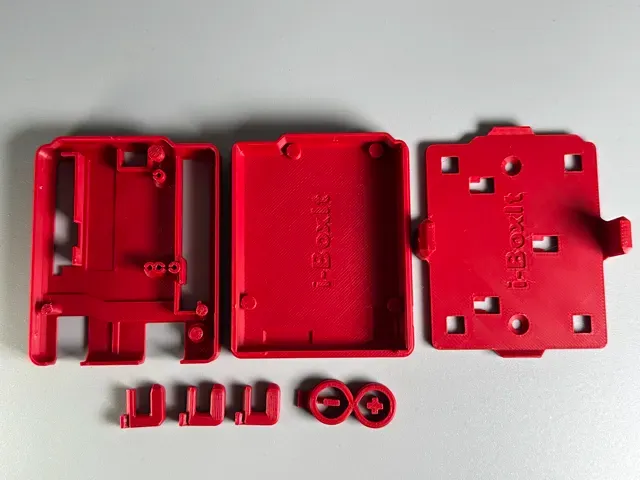

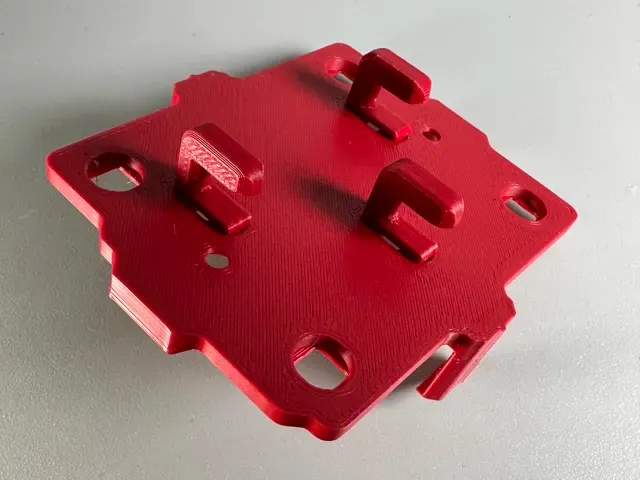

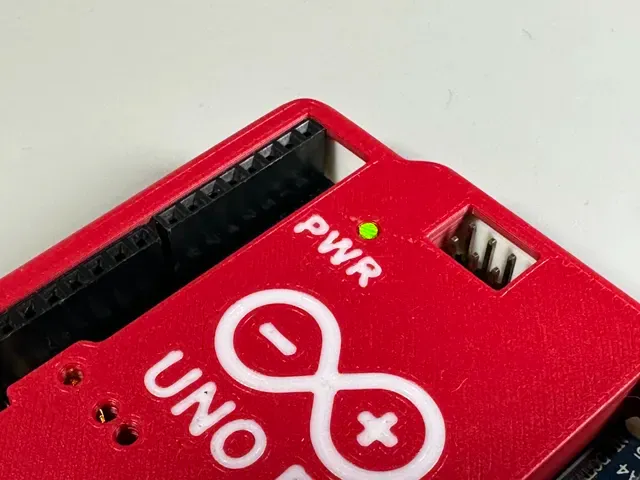

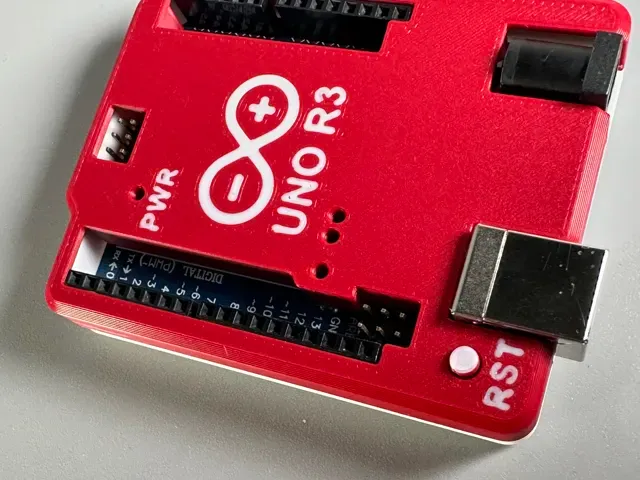

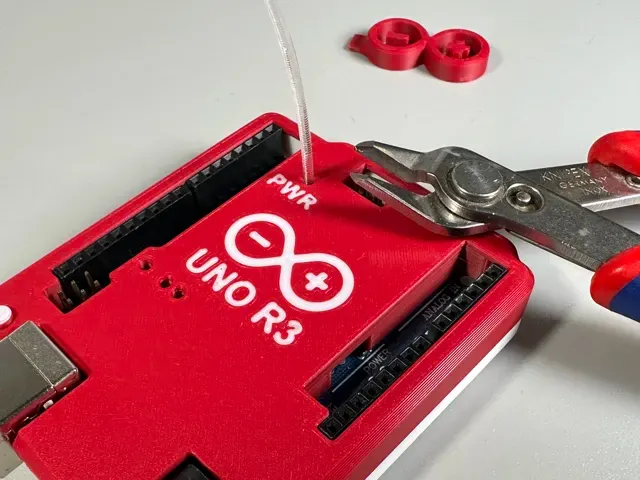

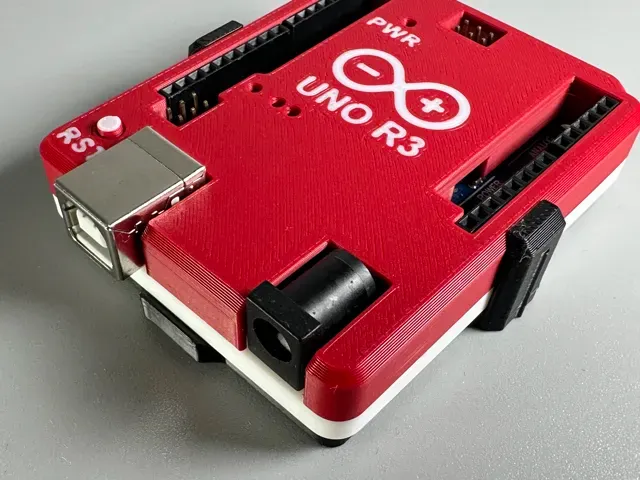

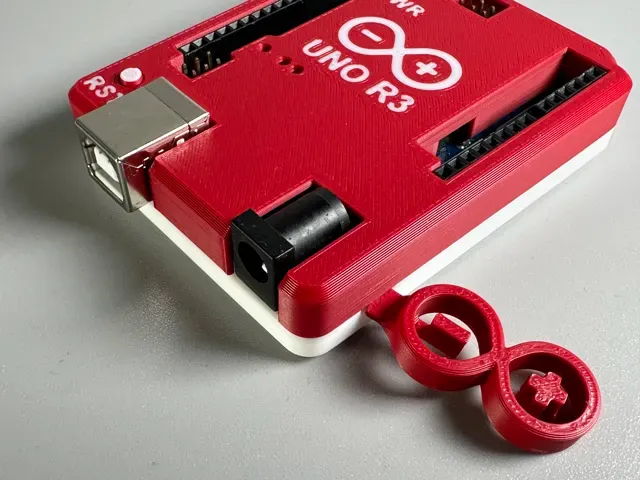

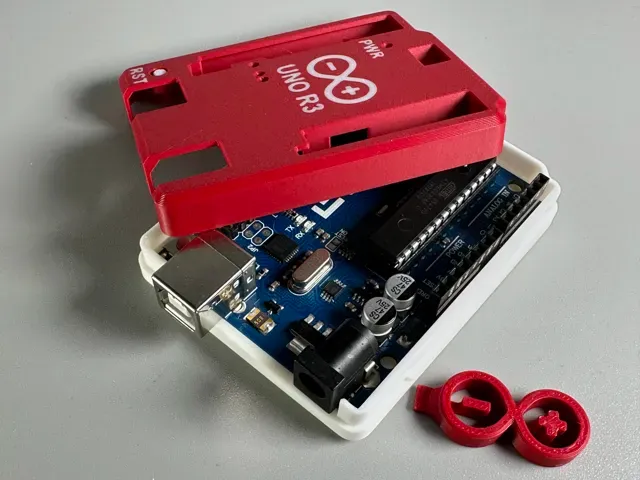

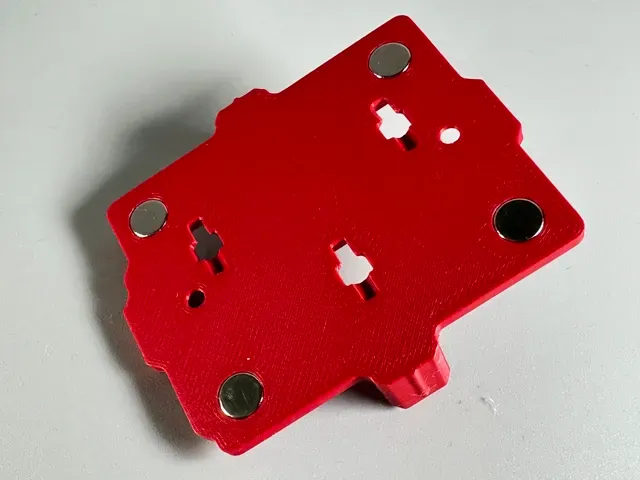

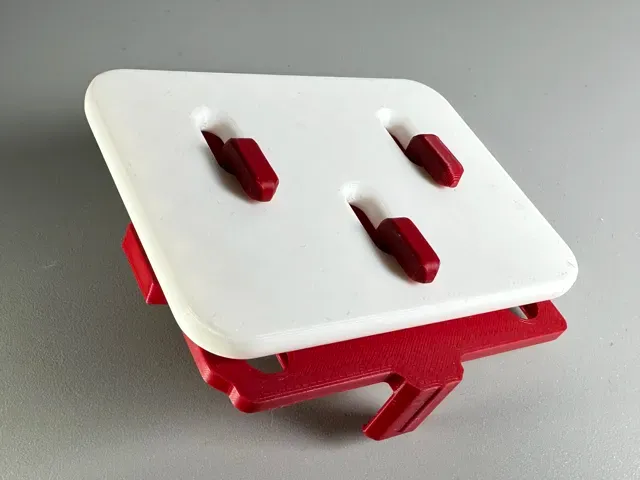

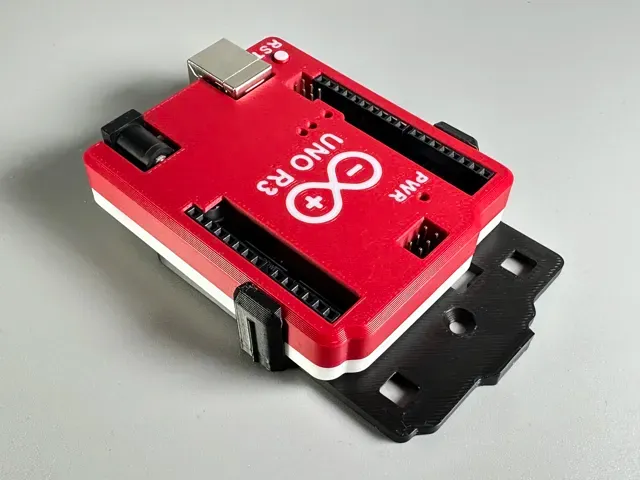

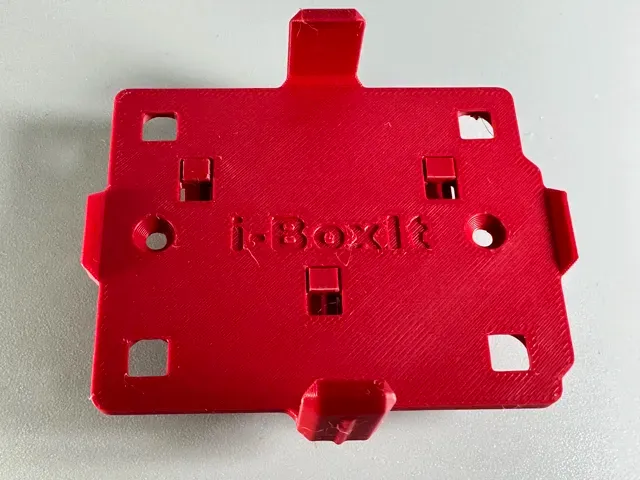

- UNO R3 and clones - Snap-fit - Wall Mount - Screws: 50mm dif - Magnetic mount: 8x2mm - Skadis mount (see pictures) - Reset Button (Inplace Print) ==> After printing move the Reset Button a view times up and down - Led hole tubes (Transparent PLA fits as a light guide see picture) Stick from outside case to inside. Cut both side close to the case. - Opener - Lid space beside the headers to show up header info Changes:

- 2025-05-27 - Improved Led hole tubes to better fit transparent PLA - Improved wall mount

- New opener

- 2026-02-16 - New Design

Guides and print profiles

Print profiles and steps

Arduino Uno R3 Case - One Colour

Arduino Uno R3 Case - AMS - Multicolour

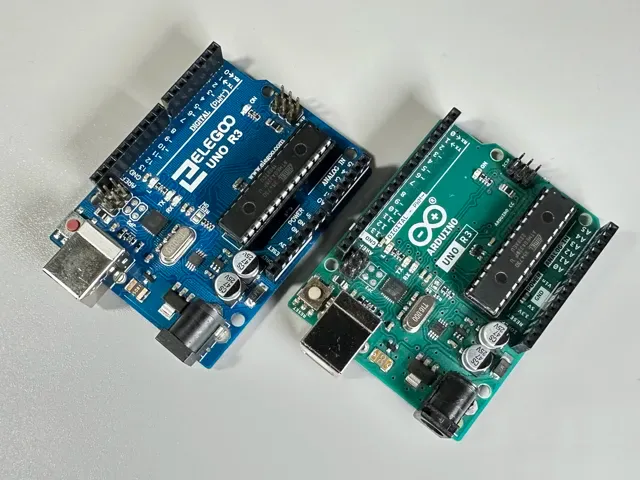

For clones (only the upper part, rest is same) 0.16mm layer, 2 walls, 55% infill

When I wanted to print this for my UNO, I found out, that it doesn't fit, the button was pressed all the time (had to bend it a bit with heat) and the capacitor behind the power connector was too tall, so the support wall would interfere.

----

button push cylinder is 2mm shorter, the support wall behind power connector has a cut-out for the capacitor.
