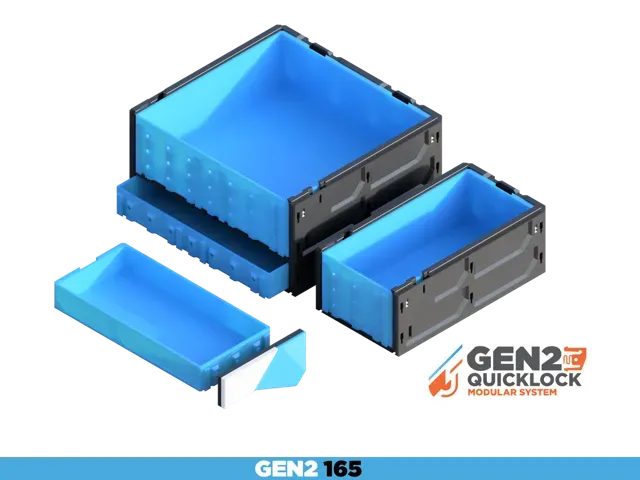

GEN2 165 Decor Drawers - All

EVERY 165 DECOR DRAWER IN ONE MODEL

All 18 Decor drawer variants for the 165 collection of the GEN2 QuickLock Modular System: four widths across five heights, all current v2602 geometry. Print only what you need, snap it together, and rearrange or expand anytime.

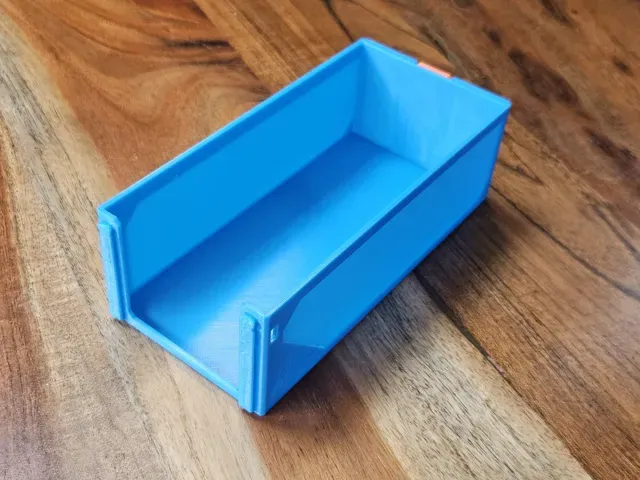

Decor drawers accept swappable faceplates and handles, so you can restyle a whole wall of storage without reprinting a single drawer body.

SMALL PRINTER FRIENDLY

1W drawers fit an A1 mini. 2W drawers also fit the 180mm plate, but only if you leave helper disks and brim ears off, so give yourself a clean bed and good adhesion instead.

1W and 2W both drop onto any 256mm printer with plenty of room. 3W needs a 320mm bed, 4W needs 350mm.

WHAT IS IN THIS MODEL

- 1W - 05H, 1H, 15H, 2H, 3H - 2W - 05H, 1H, 15H, 2H, 3H - 3W - 05H, 1H, 15H, 2H - 4W - 05H, 1H, 15H, 2H Plus the shared GEN2 hardware: QuickLock A and B, drawer stoppers and magnet inserts.

PLAN YOUR BUILD WITH THE FREE GEN2 PLANNER

Pick a mount style (wall, table top, or under-table), lay out your cases and drawers, and get a complete parts list with download links. It runs in your browser, no sign-up, and it filters by printer size so you only see what you can actually print.

Plan it free: https://gen2planner.jerrari3d.com/?utm_source=makerworld

PREFER A SOLID FRONT?

Classic drawers print in one piece with the handle built in, no faceplates and no assembly: https://makerworld.com/en/models/922620

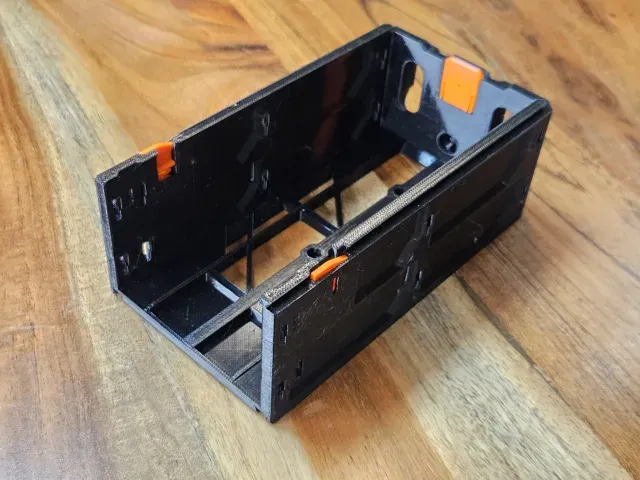

WORKS WITH GEN2 165 CASES

These drawers slide into the GEN2 165 cases. Cases are the shells that hold everything together, and they stack, wall-mount or sit on a bench:

165 Cases - All: https://makerworld.com/en/models/3092414

FACEPLATES

Decor drawers are built around swappable faceplates. Faceplates are a separate download and are not included in this model. Grab them from my other models here on MakerWorld, or see the full range at https://www.jerrari3d.com/gen2-modular-system/decor-faceplates

HARDWARE

- Filament - Bambu PLA Basic (easy, prints great for most parts) or Bambu PETG for stronger, heavier duty storage - Screwdriver - Magnets (optional) - 10x2mm or 6x2mm - M3 nuts and screws - stainless steel or steel RECOMMENDED PRINT SETTINGS

- Filament - PLA (PETG or ABS for heavier duty storage) - Supports - none needed - Nozzle - 0.4mm - Layer height - 0.2 to 0.35mm - Infill - 10 to 20% PREPARATION

Clean your print surface well to prevent warping. Warping can make it difficult, and sometimes impossible, for the rails to slide together. A build plate adhesive or glue stick helps, and keeping the printer away from windows or breezy areas (or in an enclosure) makes a difference. In your slicer you can also add Helper-Disks / Brim-Ears at the corners for more bed adhesion.

INSTRUCTIONS

Step-by-step build guides, including wall-mount and under-table setups: https://www.jerrari3d.com/gen2-modular-system/instructions

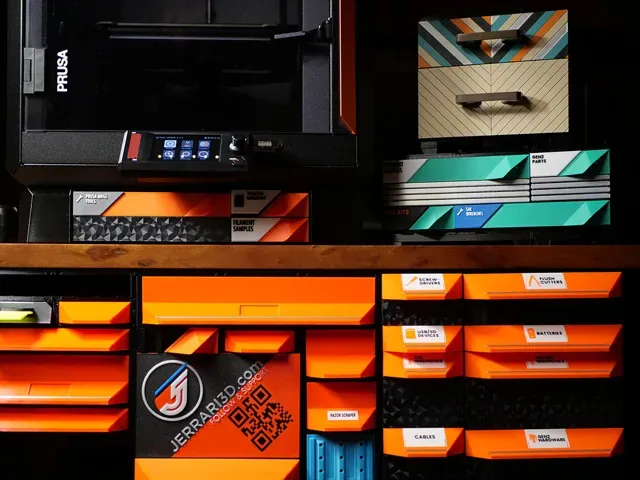

SEE THE SYSTEM IN ACTION

Full walkthrough of the GEN2 QuickLock Modular Storage System: https://www.youtube.com/watch?v=2UPSWt1l6U8

LIKE THE GEN2 SYSTEM?

Follow me here on MakerWorld to catch new releases, and find the full catalog and guides at jerrari3d.com . It means a lot and helps fund future designs.

Please note: the Non-Commercial license refers specifically to selling prints. You are absolutely welcome to use my designs in commercial environments, I actually encourage you to use them anywhere you see fit.
