Description

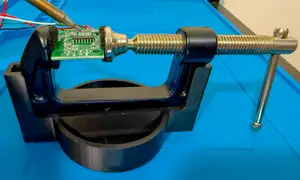

This vice screws on to your work station and can hold a circuit board (or anything like a phone) and can hold the circuit board at a 40 degree angle so it doesn't hurt/strain your neck. this vice can hold any type of circuit board big or small, weird or not. It also has a patter/grip to keep the circuit board in place. It can also be a helping hand in your workshop to hold anything (wood, metal, tools, instructions etc).

for the 2 bolts to work better I recommend to print the normal bolt 4% smaller and the bolt for the vice 7% smaller

WARNING-clamp is quite week, DO NOT twist screw to hard other wise the clamp will snap, but it can hold quite a bit of force but do not twist to hard

If you have any suggestions for this build or any other that I do, then put it in the comments of the build or if you have a questions for me please message me here

this will be edited to incorporate magnets and have attachments onto the side and different models

Guides and print profiles

Print profiles and steps

0.2mm layer, 2 walls, 15% infill
