Arrma Mojave 4s Max8 ESC and Switch Mount

Summary

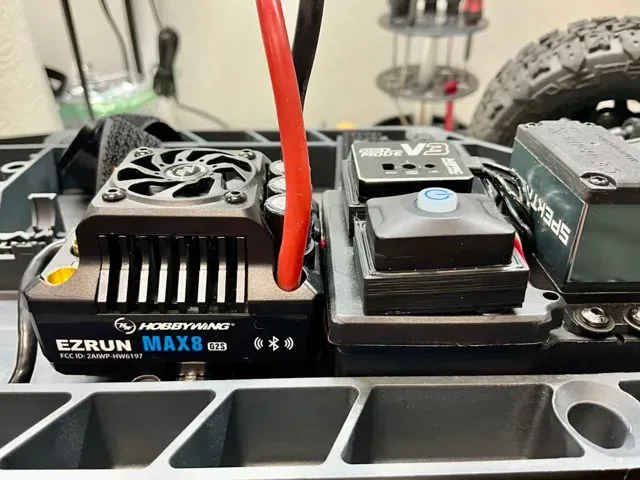

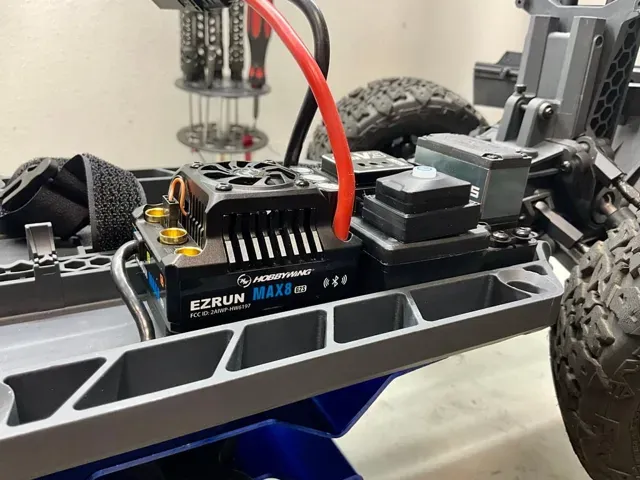

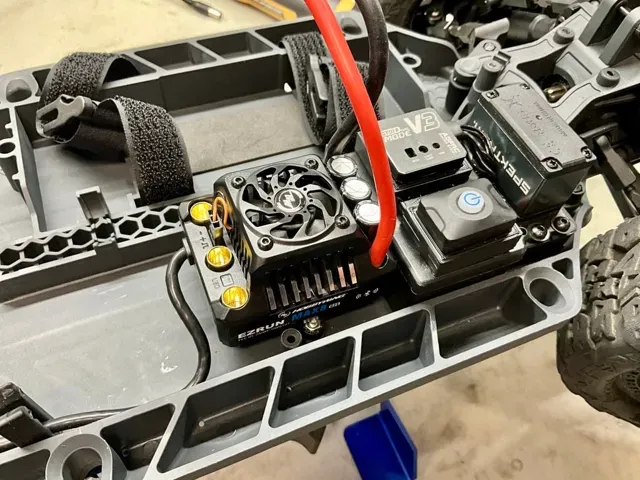

This mount allows you to mount a Max8 ESC and its switch into a Mojave 4s (and possibly other Arrma 4s models too). It's nothing too fancy, but it does work well and mounts securely.

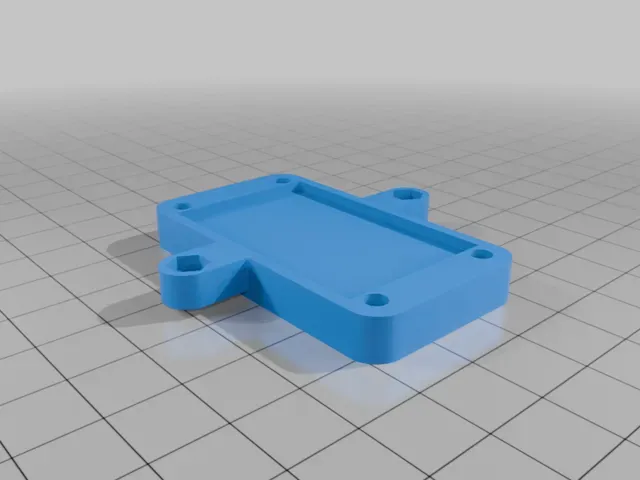

Since the Max8 is wider than the mounting holes, the two holes in the chassis will have to be drilled all the way through, and screws put through the bottom of the chassis into the ESC mount (which needs a M3 nut installed). Also integrated into the mount is a recess to install double sided tape for maximum grip on the ESC (as Hobbywing mounting holes are not very deep).

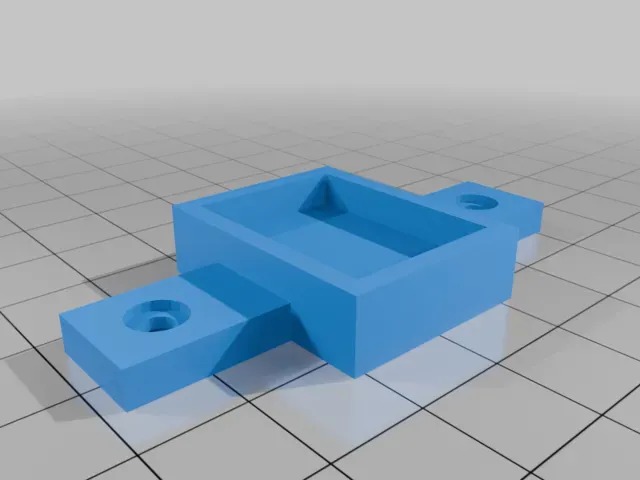

You can find the mount for the gyro and switch here

Print Settings

Printer Brand:

ELEGOO

Printer:

ELEGOO NEPTUNE 4 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

60% or up

Filament: Elegoo PLA Pro Black

Post-Printing

Installation

To install, first you'll need to drill the ESC mounting holes in the chassis all the way through. Make the holes big enough to be able to slide an M3 screw into it. Press fit two M3 nuts into the slots on top of the mount. Optionally, you can also install some double sided tape into the recess on the mount to help keep the ESC secure.

Next, use four short M3 screws to fasten the ESC to the mount. Then, you can install it into the Mojave. However, make sure the screws you choose to mount through the chassis aren't too long, otherwise you could scratch or break the bottom of the ESC.
