150 mm Sandpaper insert for Systainer SYS3 / T-Loc
Model details
- Platform
MakerWorld
- Price
- Free
- License
- PRIVATE-USE
- Personal use only: print for yourself, no selling or sharing.
- Formats
- 3MFSTL
- 55 Likes
- 127 Downloads
- 65 Makes
- 203 Collected
- 22 Boosts
- 39 Comments
- 0 Views
Description

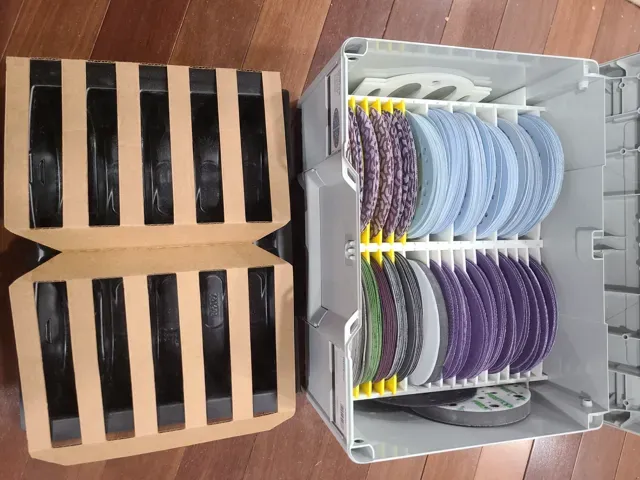

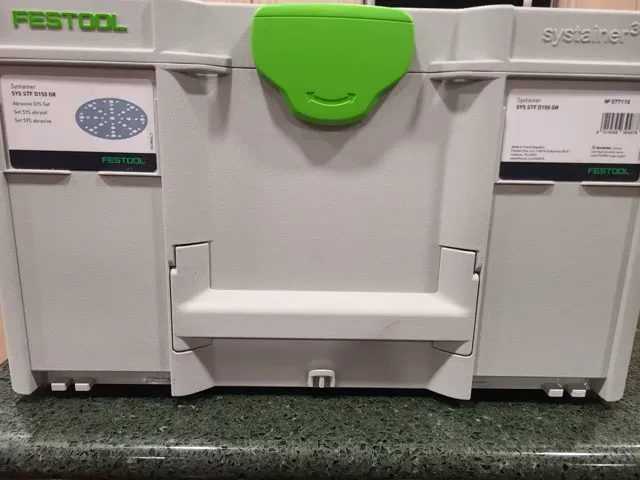

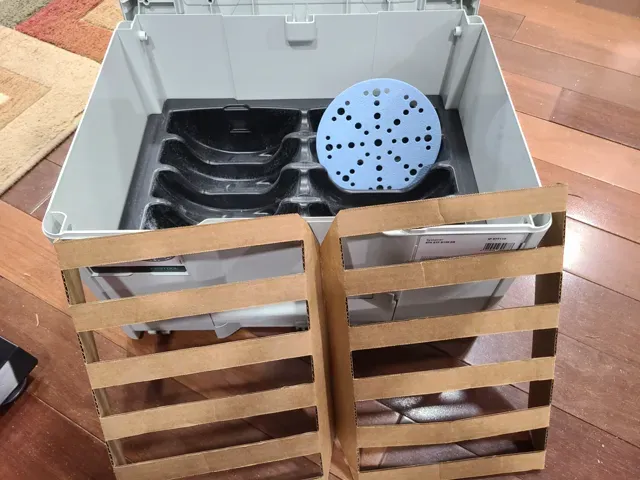

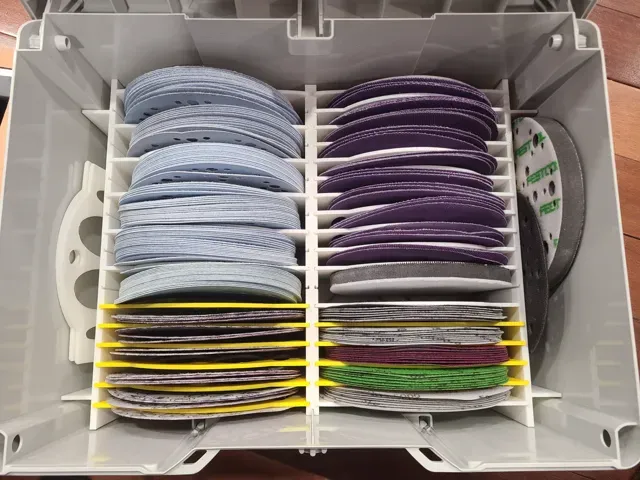

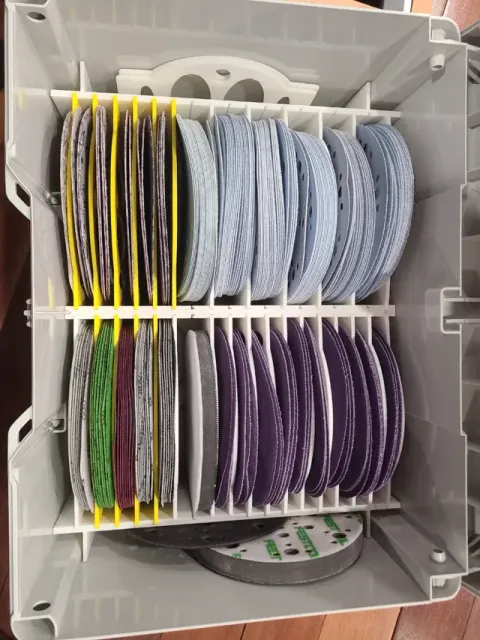

This is an insert set to replace the ridiculous Festool inserts that come with the SYS STF D150 GR kit. The kit includes 150 mm discs (6") that fit all their 150 mm sanders and only has 10 slots. Festool insanely decided that cardboard would be acceptable for their dividers, and they wasted a ton of space. My model should fit any Systainer 3 (or T-Loc), but the one included with the sandpaper is the SYS3 M 237. If you need a 5" version, then I think the SYS 3 M187 should work for you. If there is demand, I can resize these down to fit 5" better, but these will work. The spacers slide up and down easily so you can adjust them as needed. Print as many as you need. The ones laying flat print much faster than the vertical versions, but babysitting the printer can be tiring. I used about 32 of them and they use about 29 grams each, so make sure you have enough filament on hand for how many you are going to print. You need one set of the left - right - center rails, which take 340 grams. NEW: Plate 6 contains side and center rails for T-Loc Systainers.
Boost Me Please boost this model. It took a while to get it just right, and it costs you nothing.
Guides and print profiles
Print profiles and steps

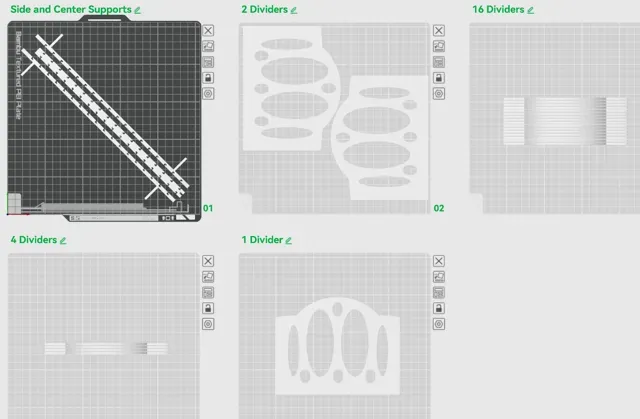

0.2mm layer, 2 walls, 10% infill 0.2 mm layer height. You can use 0.24 mm for the 3 main spanning pieces and dividers laying down, but use 0.2 mm for vertical dividers, or they will be pretty rough on top. I used an X1C, but anything except an A1 mini should be fine.
