Description

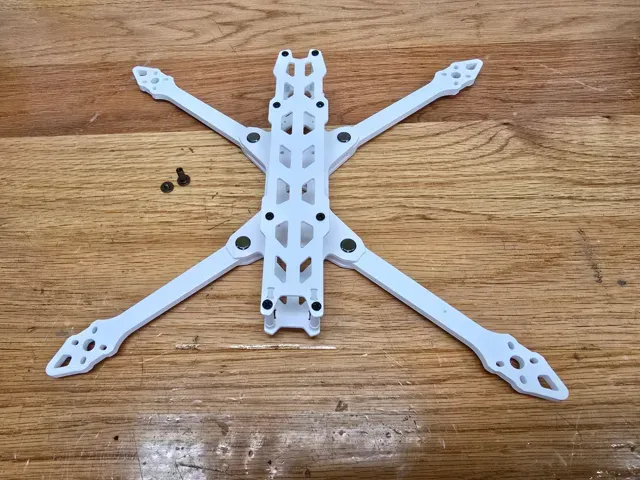

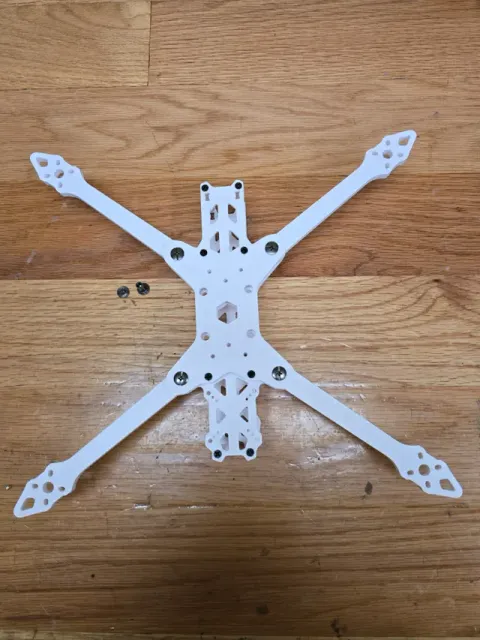

LX7 FPV Drone Frame

This LX7 FPV drone frame is a 3D-printed model designed for display, prototyping, or light assembly practice. Printed using PETG HF, it serves as a detailed representation of the frame design.

Important Notes:

- This is a model frame and is not intended for flight . - If you choose to fly it, you do so at your own risk . To complete the frame, you will need:

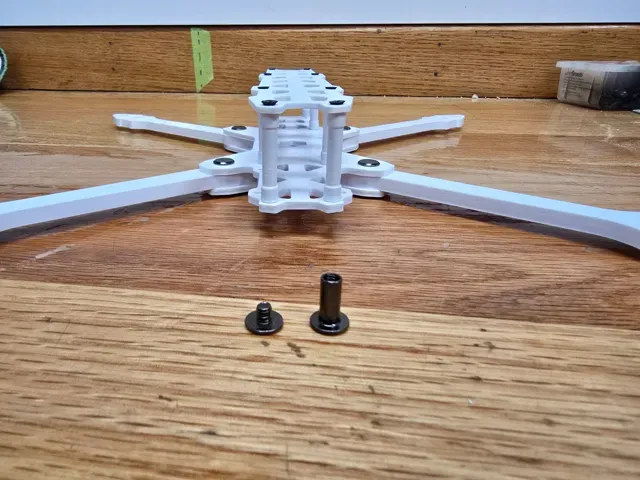

- M3 screws x 16 (Length depends on your method to attach it to the standoffs; brass heat-set inserts were used for modeling purposes) - 25mm standoffs ( plastic standoffs included are for modeling purposes only; they will need modification to assemble ) - The standoffs will either need to be drilled for the heat inserts or drilled for the diameter of the screws being threaded into them . - M5x12mm barrel nuts x 4 This frame is ideal for showcasing drone designs or as a base for prototyping. Fly at your own risk.

Guides and print profiles

Print profiles and steps

0.2mm layer, 3 walls, 15% infill - Material: PETG HF (PLA Will also work fine) - Layer Height: 0.2mm (for optimal detail) - Wall Thickness: 1.2mm (3 perimeters) - Infill: 15% (Gyroid for strength and weight balance) - Print Speed: 50-60mm/s - Nozzle Temperature: 240-250°C (adjust based on filament specifications) - Bed Temperature: 70-80°C Additional Notes:

- Brass heat-set inserts were used in the standoffs during assembly for modeling purposes. - Ensure proper calibration of your printer to avoid warping or layer adhesion issues.
