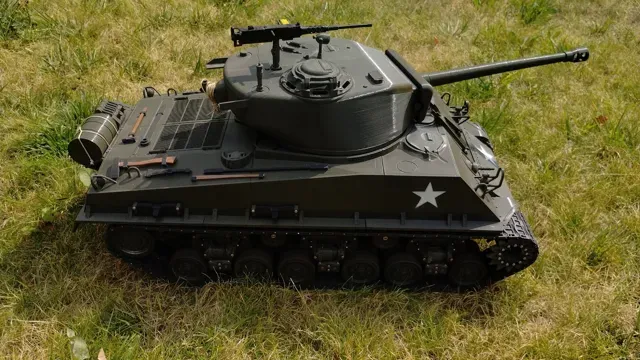

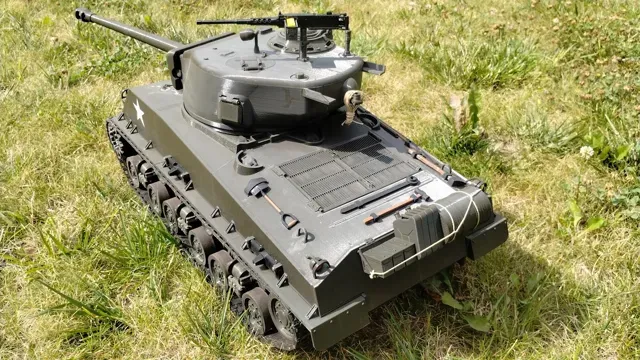

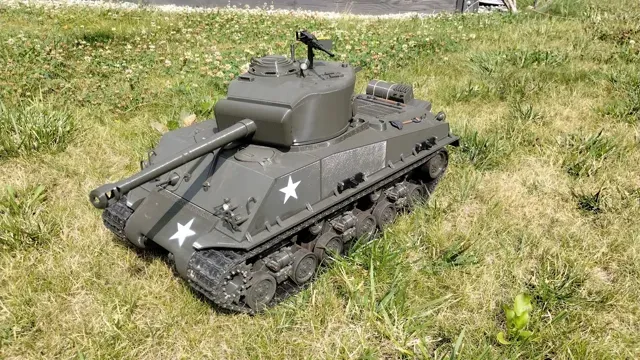

RC tank Sherman M4A3E8 1:10

Sherman M4A3E8 1:10 scale, tank model designed by members of the 3DAnarchy group, main designer - Marty Jaxx, turret - Bret Nemeth, other additions - Denior https://www.facebook.com/groups/1358672314201686

The model does not have an assembly instruction, only a large number of photos from the construction are available here: https://photos.app.goo.gl/a3YLFuEqovXyB9To6

If you have any questions during the construction, ask on our 3d Anarchy group

here is a general list of necessary items that cannot be printed:

screws:

2mm (M2) Various lengths 3mm (M3) Various lengths 4mm (M4) Various lengths

6mm (M6) Various lengths

Solid rod:

4mm brass, copper or steel rolid rod from the hobby store. Carbon fiber/graphite may work too but won't be as strong with a side load. This is what you'll be using for the suspension pivot points. Brass will work the best.

Thanks to Jayden and Aaron

540 size 35T motor

ESC Hobbywing QuicRun 1060

3x servo mini (23mm)

servo expander 90 to 180 degrees (for gearbox servo)

2x servo medium (28mm) for stering

Y servo cable and several extension cords

30x30 5V fan (for cooling engine)

Traxxas drivetrain:

4472 72T Spur Gear 6747 11T Pinion Gear the following parts can be replaced with printed ones 5650 Half Shafts 5453 Axle Yokes 5452 U-Joints 5454 Axle Stub 4955 Pins

Bearings

10x6x3 - Inside Differential 106 2RS (x12) 6x13x5 - Rear idler wheels 686 2RS (x4) 4x13x5 - Bogies 624 2RS (x38) 12x18x4 6701 2RS (x2-gearbox,x2-engine,x1-shaft)(x5) 17x30x7 - Transmission/Engine 6903 2RS (x4-front axle,x1-engine)(x5) 15x21x4 - Transmission/Engine 6702 2RS (x6-dyferencial,x2-gearbox)(x8)

Track pins:

2mm solid wire (drill out the track pads a bit.)

RC equipment FS-I6X + reciver 6-10 chanels or other
