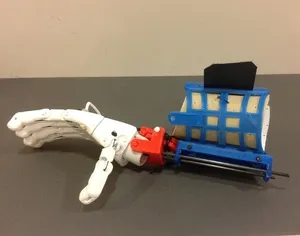

Raptor Reloaded

The Raptor Reloaded is an updated release of the original that incorporates feedback from the e-NABLE community and has CAD design source files available in STEP, IGES, IPT, and F3D formats.

Updates in the 12-17-14 release include:

--Improved print-ability due to custom modeled supports

--Cyborg Beast compatible sizing

--Improved dovetail geometry

--New tensioner retention clip

--Easier to use tensioner pins

--Low profile elastics with two tie-off options

--More access to elastic and flexsor routing channels

--Debossed versioning information on palm and gauntlet

--Slimmer, more anthropomorhpic fingers

--Narrower knuckle block

--More intuitive assembly (new one-way proximals)

--Thorough documentation and modular design

--Source files in native Fusion 360 format, also STEP and IGES

--Additional velcro-mounting options as well as traditional velcro loop and leather options

--Re-oriented snap-pin head recesses to improve printability

--Knuckle pins are now removable, making the hand easy to repair and upgrade

--Strengthened tie-bars on finger tips

Native CAD source files available here:

Full Assembly

Left Palm

Right Palm

Gauntlet

Proximal Phalange

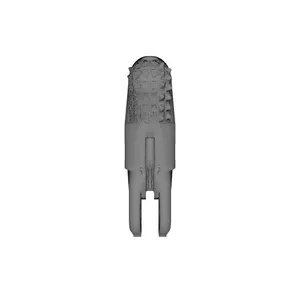

Fingertip

Finger Snap Pin

Detailed assembly instructions coming soon.
